DOOSAN V400M 3-AXIS CNC VERTICAL LATHE WITH LIVE TOOLING, NEW 2012
Have one to sell?
1 available
DOOSAN V400M 3-AXIS CNC VERTICAL LATHE WITH LIVE TOOLING, NEW 2012, 5 LIVE TOOLHOLDS

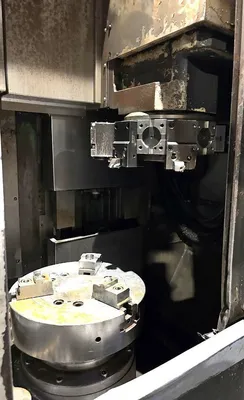

Doosan Puma V400M Single Turret Vertical Lathe
Technical Specification for Puma V400M
Technical Specification
Chuck size 12 inch
Max. Turning Diameter 496 mm
Max. Turning Length 461 mm
X Axis Rapid Traverse 20 m/min
Z Axis Rapid Traverse 20 m/min
Max. Spindle Speed 3000 r/min
Max. Spindle Power 22 kW
Max. Spindle Torque 731 N·m
No. of tool station 12
Rotary Tool r/min 4000 r/min
X Axis Travel distance 268 mm
Z Axis Travel distance 488 mm
Product Dimensions
Length 1475mm
Width 2075mm
Height 3210mm
Weight 6000kg
FANUC I SERIES CNC CONTROL
TURRET WITH LIVE TOOLING
5 LIVE TOOL HOLDERS
COOLANT SYSTEM
CHIP CONVEYOR
