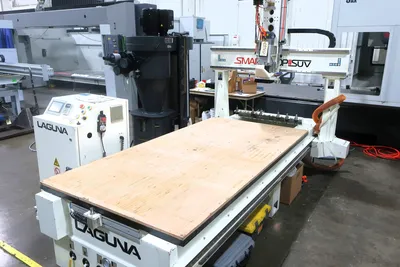

Table size: 4’ x 8’
Motor: 12 HP
extended 24" Z axis
900 in/min rapid travel.
600 in/min maximum cutting speed.
8 Position Automatic Tool Changer
Heavy-duty welded tubular steel frame (3500 lbs).
Vacuum table
25mm heavy-duty HiWin HG Series linear bearings and rails on all axis rack.
“Helical” rack-and-pinion drives on “X” and “Y” axis, and precision-ground ball screw drive on “Z” axis.
Gantry is driven on each end (two “helical” rack-and-pinion drives on “Y” axis).

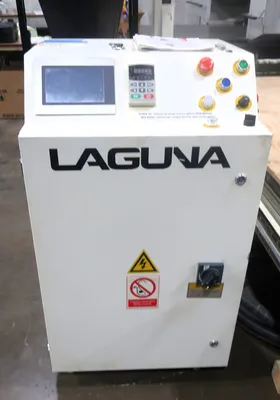

Delta brand VFD-B variable frequency drive.

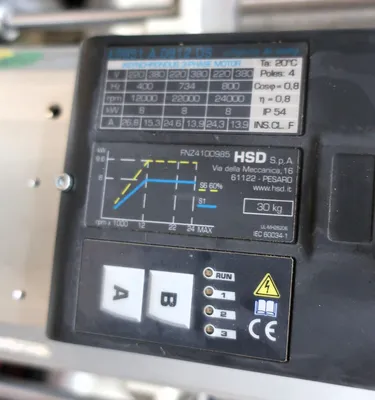

12 HP HSD (Italian) Electrospindle ISO-30 (ATC), 6,000 – 24,000 RPM Range, Ceramic Spindle Bearings

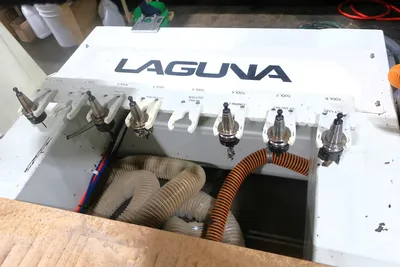

Automatic Tool Changer with 8 tool position tool rack.

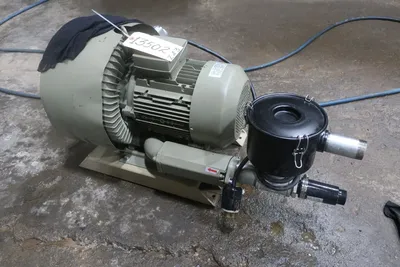

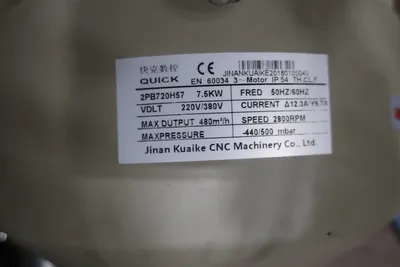

Vacuum

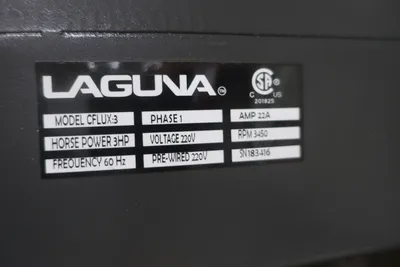

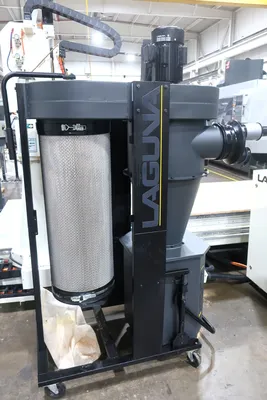

Dust Collector
8 Position Tool Changer
extended 24" z axis

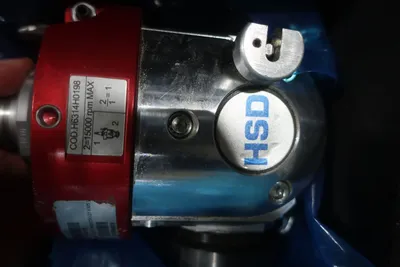

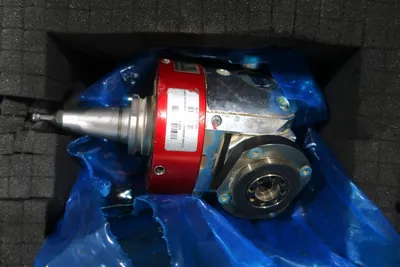

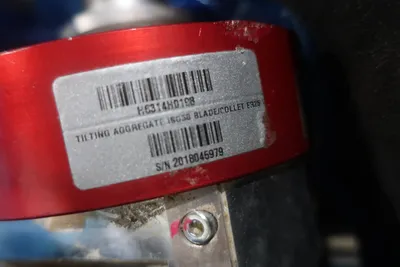

Aggregate 90 deg Head

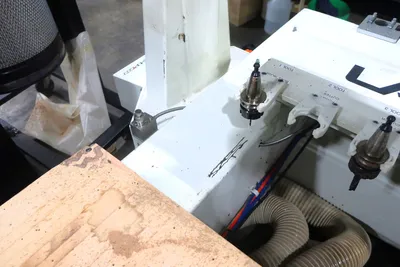

Tool Setter
12hp Spindle
MANUAL PULSE GENERATOR
ADJUSTABLE POP-UP PINS
