Why a Used Thermwood Router Can Be a Smart Production Upgrade
A used Thermwood router can give a cabinet shop, millwork company, or industrial fabricator proven CNC capacity at a lower upfront cost than new equipment. Thermwood is one of the CNC industry's long-established brands, and its used market includes compact C-Series machines, heavy-duty CS models such as the CS45, and high-output M-Series and MTR routers.
For a quick buying answer, focus on these four points:
- Match the machine to the work. C- and CS-Series routers often suit cabinet, furniture, and millwork work; MTR models are built for higher-volume nested sheet production, composites, and plastics.
- Verify condition before price. Inspect the spindle, vacuum table, gantry motion, tool changer, controller, maintenance records, and ability to see the machine run.
- Check the production configuration. Table size, spindle horsepower, tooling capacity, drill banks, and dual-head options can change both output and value.
- Budget for the full install. Include freight, rigging, electrical work, air supply, dust collection, software needs, tooling, and any repairs found during inspection.
The right pre-owned machine is not simply the lowest-priced one. It is the router with the capacity, condition, and support needs that fit your materials and daily workload.
I am Jared Gray, with more than 12 years of experience buying, selling, and brokering CNC manufacturing equipment, including sourcing and evaluating a used Thermwood router for shops with very different production needs. In this guide, I will break down the models, features, and inspection details that matter before you buy.
Popular Thermwood Models: C-Series, CS-Series, and M-Series
As one of the oldest and most respected manufacturers in the CNC woodworking and plastics equipment sector, Thermwood has built a reputation for designing rugged, American-made gantry routers. Over decades of innovation, their engineering team has introduced several distinct router families aimed at various production scales. When browsing available pre-owned options or exploring our curated inventory, understanding how these model series differ is the critical first step in making a sound business decision.
CS45 and CS-Series Features
The CS-Series is engineered specifically for heavy-duty, continuous nested-based cutting. Built on a rigid steel frame, these machines excel at high-speed sheet processing where structural integrity and vibration damping are crucial for long tool life and clean edge finishes.
For shops that demand consistent performance, a pre-owned Thermwood CS45 CNC Router represents an industry workhorse. Designed with high-flow vacuum zones and robust gantry movement, the CS45 handles medium-to-large panel processing with ease. Similarly, the Thermwood CS43 CNC Router provides an ideal solution for facilities processing standard sheet sizes with demanding turnaround times. Both units handle thick hardwoods, dense MDF, particleboard, and non-ferrous sheet stock without flexing under heavy cutting loads.
C-Series Precision Routers
The C-Series encompasses a versatile range of 3-axis routers that have long been staples in custom cabinet shops, architectural millwork facilities, and commercial furniture plants. Known for their dependability and straightforward operation, C-Series machines balance a compact floor space footprint with impressive machining envelopes.
Key models available on the secondary market include:
- Thermwood C67 Models: The Thermwood C67 CNC Router, as well as dedicated configurations like another listing for a Thermwood C67 CNC Router or the dual-table Thermwood C67DT CNC Router, offer exceptional flexibility for multi-part processing and high-precision routing.
- Thermwood C53 and C-53 Models: Renowned for their reliability, you will often find options like this Thermwood C-53 CNC Router, this Thermwood C-53 CNC Router, or the Thermwood C53 CNC Router. These machines offer fixed vacuum tables, robust spindle options, and smooth motion controls perfect for cabinet joinery and custom component profiling.
- Thermwood C-50 and C40 Models: For growing facilities needing core nesting and profiling capabilities, the Thermwood C-50 CNC Router and Thermwood C40 CNC Router deliver reliable 3-axis performance with minimal maintenance overhead.
M-Series and MTR High-Volume Production
When maximum throughput is the primary objective, Thermwood's M-Series and MTR Series represent the flagship solutions for industrial high-volume production. Designed for multi-shift environments, these systems incorporate oversized structural steel frames, advanced vacuum hold-down architecture, and rapid feed speeds.
For example, large-format solutions like the Thermwood M70-1020 CNC Router give manufacturers a massive working envelope capable of processing large-format composite panels or running tandem nesting operations side-by-side.
Meanwhile, according to the official MTR Series Specifications, the MTR Series is built specifically for nested-based sheet production across composites, plastics, and engineered wood products. Equipped with continuous dual in-line tables, moving gantries, and advanced automatic tool length measurement, an MTR router allows operators to load and unload materials on one table while the machine actively routes on the second, virtually eliminating cycle downtime.
Evaluating Cost, Performance, and ROI of a Used Thermwood Router
Acquiring industrial machinery requires balancing initial capital layout against long-term operational returns. Investing in a pre-owned machine allows growing businesses to access top-tier manufacturing hardware without incurring the steep capital strain of brand-new equipment.
Key Advantages of Buying a Used Thermwood Router
The primary benefit of acquiring a pre-owned Thermwood CNC router lies in capital efficiency. Premium industrial routers are engineered to operate for decades when properly maintained. By purchasing on the secondary market, manufacturers secure several crucial advantages:
- Rapid Capital Recovery: Lower entry costs translate to a dramatically shorter payback period, helping your facility achieve positive cash flow on new product lines faster.
- Immediate Delivery and Installation: While ordering new factory equipment can require lead times of several months, used units are typically ready for immediate rigging, shipment, and installation.
- Heavy-Duty Construction Preserves Resale Value: Thermwood machines utilize heavy welded steel structures and stress-relieved frames. Because the underlying mechanical structure rarely degrades over time, pre-owned units retain strong market demand should you choose to upgrade again in the future.
Comparing New vs Pre-Owned Machinery Value
Like new vehicles, brand-new CNC routers experience significant depreciation during their first 24 to 36 months of operation. By choosing a well-maintained pre-owned unit, you allow the initial owner to absorb that steep drop in value while you acquire the same operational core—solid motion components, capable controllers, and heavy spindle packages—at a fraction of the cost.
When comparing new versus pre-owned machinery, consider the performance-to-cost ratio. A five-year-old Thermwood CS or MTR router operating with clean spindle bearings and calibrated ball screws will deliver tolerances virtually identical to a brand-new unit, yet it frees up tens of thousands of dollars in capital that you can reinvest into tooling, facility upgrades, or skilled workforce development.
Key Technical Specifications and Production Features
Understanding technical specifications enables shop managers to align a router's hardware capabilities directly with their production requirements. Below is a quick comparison of specifications commonly found across popular Thermwood series:
| Model Series | Typical Table Sizes | Standard Spindle Power | Tool Changer Style | Primary Applications |
|---|---|---|---|---|
| C-Series | 4'x8', 5'x10', 5'x12' | 10 HP – 12 HP HSD | Bar-style or At-the-Head ATC | Cabinetry, Millwork, Custom Furniture |
| CS-Series | 5'x10', 5'x12' | 12 HP – 18 HP HSD | Rotary or Bar-style ATC | Heavy Nested-Based Production, Thick MDF |
| M-Series / MTR | 5'x10', 5'x12', 7'x12', 7'x20' | 12 HP (Std) / 18 HP (Opt) HSD | Bar-style, Rotary, or Dual-Head ATC | High-Volume Panels, Composites, Plastics |
Spindle Horsepower and Table Dimensions
Spindle horsepower dictates cutting speed, material engagement depth, and feed rates:
- 12 HP HSD Spindle: Running between 3,000 and 24,000 RPM, the standard 12 HP HSD spindle provides clean cutting through hardwoods, plywood, composite sheets, and non-ferrous metals.
- 18 HP Spindle Option: For high-speed machining of dense solid woods, thick plastics, or heavy composite stacks, an optional 18 HP spindle offers higher torque at lower speeds and supports aggressive feed rates during high-volume nesting.
Table sizes should directly reflect your standard raw material sheet dimensions. While standard 5'x10' and 5'x12' tables comfortably accommodate standard sheet goods, larger industrial applications benefit from 7'x12' or massive 7'x20' footprints. These oversized beds handle marine composite sheets, commercial architectural components, or dual-zone sheet layouts effortlessly.
Tool Changers and Dual-Head Upgrades
Tooling flexibility determines how seamlessly a router transitions between panel grooving, boring, profiling, and edge trimming without manual intervention:
- Automatic Tool Changers (ATC): Thermwood machines feature large-capacity bar-style automatic tool changers or head-mounted carousel changers. This allows shops to stock complete tooling sets—such as compression bits, roughers, flycutters, and specialty profile tools—ensuring uninterrupted execution of complex program sequences.
- Dual Spindles and Drill Banks: To double output, high-production models like the MTR Series offer optional 2nd head spindles. Operating simultaneously, dual heads allow the machine to cut two identical parts in a single pass. Furthermore, adding multi-spindle drill banks dramatically accelerates cabinet construction by boring complete shelf-pin patterns and joinery holes in seconds.
Essential Inspection Points Before Buying a Used Thermwood Router
Purchasing pre-owned equipment requires a methodical inspection process to ensure the machine will perform reliably on your production floor from day one.
Spindle Wear, Vacuum Table, and Laser Alignment
Before finalizing a transaction, inspect these three mechanical pillars:
- Spindle Health: Measure runout using a dial indicator inside the spindle taper. Listen closely to the ceramic bearings across the entire 3,000 to 24,000 RPM operating spectrum. Noise, heat buildup, or excessive vibration indicates worn bearings that will require spindle rebuilding or replacement.
- Vacuum Hold-Down Integrity: Check the high-flow aluminum or phenolic vacuum table for deep cut-through gouges or core distortion. Test the vacuum pump system under load to verify that hold-down pressure remains consistent across all table zones.
- Motion System & Alignment: Inspect the gantry, linear guide rails, ball screws, and rack-and-pinion drives for physical wear or backlash. Thermwood utilizes three-dimensional laser-compensated axis alignment in its controls; confirm that alignment routines run smoothly and that axis movement remains crisp and repeatably accurate across the entire bed.
SuperControl System and Software Compatibility
Thermwood's proprietary SuperControl system is central to its machine intelligence. SuperControl provides robust CNC functionality, onboard tool management, real-time diagnostic reporting, and automatic tool length measurement.
When evaluating a used system, verify:
- Controller Generation and Operating System: Ensure the SuperControl hardware version supports modern network protocols and file transfers.
- CAD/CAM Software Integration: Confirm that your existing CAD/CAM software (such as Mastercam, Cabinet Vision, Alphacam, or Vectric) includes or can readily generate compatible post-processors for the machine's specific control version.
- Diagnostic System Health: Check diagnostic logs within SuperControl for historical over-temperature warnings, drive fault codes, or axis limit errors.
Ideal Applications and Target Industries
Because Thermwood designs versatile, rigid 3-axis systems, pre-owned routers serve a broad spectrum of commercial and industrial sectors:
- Cabinetry and Furniture Manufacturing: High-speed nested-based production allows cabinet makers to cut case parts, bore shelf pin patterns, and execute dado joinery from complete 4'x8' or 5'x10' sheets in minutes.
- Architectural Millwork and Store Fixtures: Large-format tables enable millwork firms to route intricate decorative panels, long moldings, and custom retail display fixtures with clean, repeatable tolerances.
- Composites and Aerospace Fabrication: Heavy-duty CS and M-Series routers easily machine fiberglass, carbon fiber panels, structural foam core, and honeycomb sheets used in aerospace, marine, and transportation applications.
- Plastic Sheet Fabrication: Precision speed control from 3,000 to 24,000 RPM prevents material melting when machining acrylics, HDPE, polycarbonate, and nylon sheet components.
Frequently Asked Questions
What table sizes are standard on Thermwood MTR routers?
Thermwood MTR Series CNC routers are available in four primary table dimensions: 5'x10', 5'x12', 7'x12', and 7'x20'. These large footprints are engineered to accommodate standard and oversized raw material sheets, as well as multi-zone dual nesting setups.

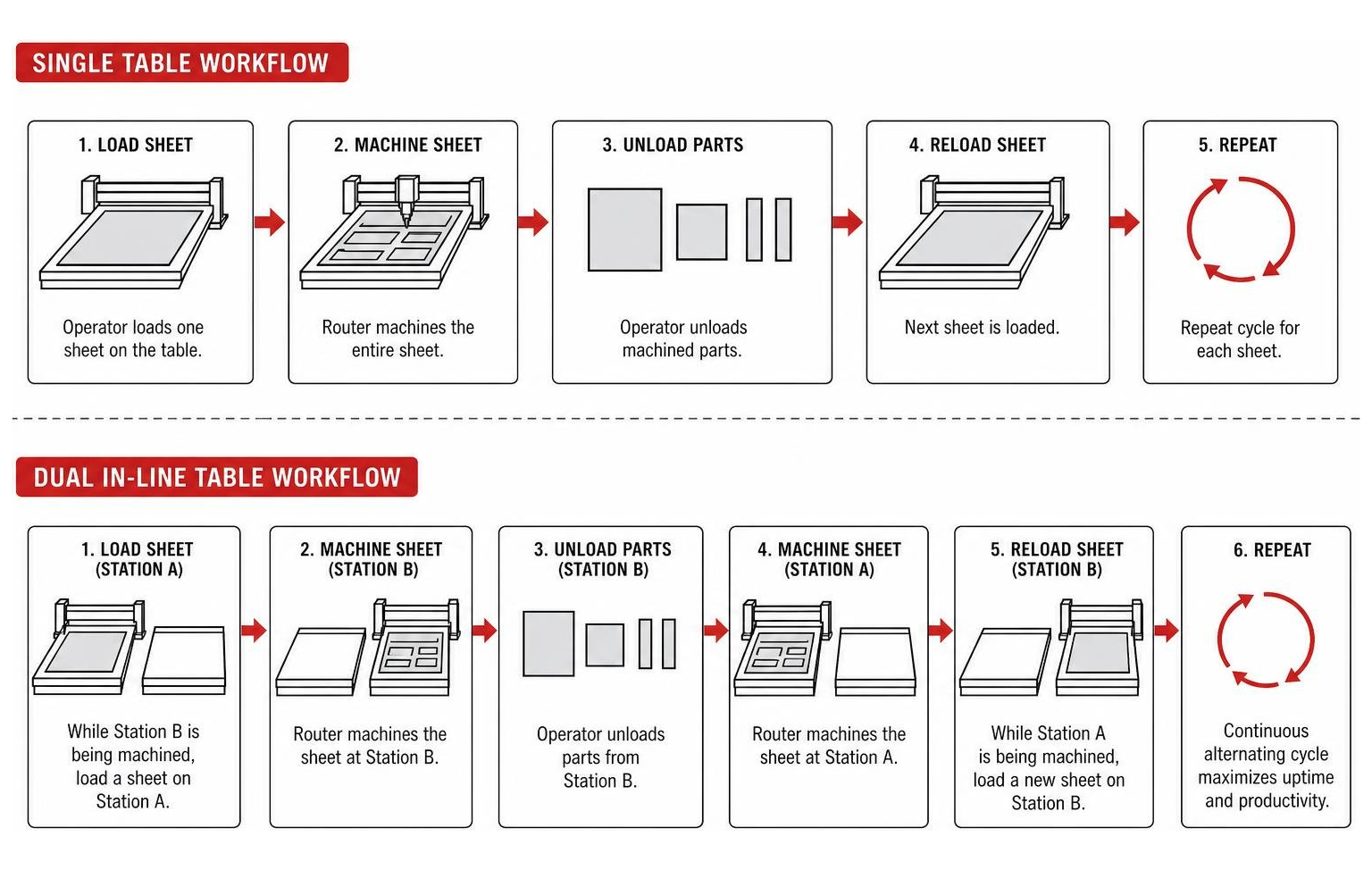

How does a dual in-line table configuration boost shop output?
A dual in-line table configuration virtually eliminates non-cutting operator downtime. While the gantry actively routes material on Table A, the operator safely unloads finished parts and loads a fresh sheet on Table B. Once the cut cycle ends, the gantry immediately transitions to Table B, keeping the spindle cutting continuously.
Which industries benefit most from pre-owned Thermwood routers?
Pre-owned Thermwood routers are heavily utilized by commercial cabinet manufacturers, custom furniture makers, architectural millwork shops, plastic component fabricators, composite panel processors, and sign-making facilities looking for high structural rigidity and continuous industrial throughput.
Conclusion
A used Thermwood router offers an exceptional blend of heavy-duty construction, high processing speed, and long-term operating reliability. Whether your shop requires a compact C-Series machine for custom cabinet work, a rugged CS45 for dense panel processing, or an MTR Series powerhouse for continuous sheet nesting, buying pre-owned enables you to expand manufacturing capacity while maintaining financial flexibility.
