10' X 12' QUINTAX 5-AXIS HEAVY DUTY PRECISION CNC ROUTER

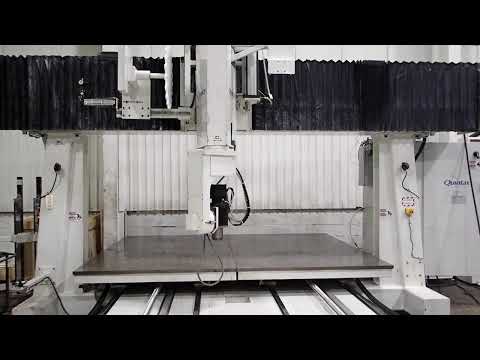

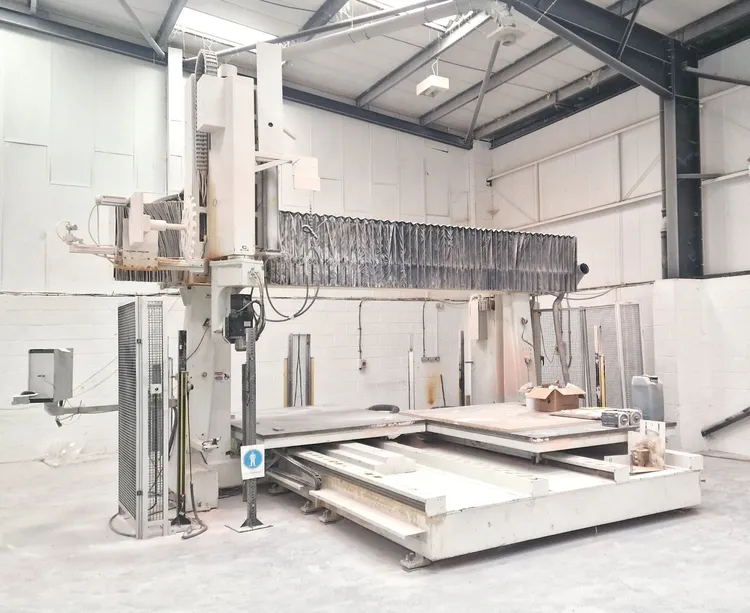

QUINTAX (USA) Q5H 5-AXIS HEAVY DUTY PRECISION CNC ROUTER WITH (2) 6' X 10' TABLES
CNC FAGOR 8070
2 Tables Dim : 1830 x 3040 each 72" x 120"
Travels X = 4400 mm (longitudinal) 173.2"
Y = 3800 mm (cross) 149.6"
Z = 1500 mm (vertical) ( Limitation under the cross rail ) 59.1"
C = +/- 360"
B = +/- 120"
Spindle speeds maxi 21.000 t/min
Tool attachment : HSK63F
Toolchanger : 20 POSITION
Coolant installation
OPTIONS INCLUDE:
Double 72" (1.83 M) X 120" (3.04 M) Tables with 37 mm Steel Top Plates.
1.5 M Z-Axis Height. ..59.1"
30 kw. 40HP HSK 63F Tool Change Style Spindle, Liquid Cooled, Air Clamping including Chiller Package.
Central Lube System with Low-Level Switch.
AC Variable Speed Inverter Drive for Spindle.
Hand-held Teach Pendant.
Fagor 8070 5-Axis CNC Control includes 512 MB RAM, 40 GB Hard Drive, 11" Color Monitor, Ethernet Port; Telediagnostics; CD Drive/USB Port.
Fagor AC Digital Servo Package with Absolute Encoding.
20-Station Automatic Rotary Carousel Tool Changer.
63 x 40 mm Ball Screws and Ball Nuts.
45 mm Rails and Linear Bearings.
12" x 16" Tube Construction Plus Polymer Composite Filled Bridge Tube Supports and Base.
Dust Collection Nozzle, Hoses for 5-Axis.
Catia 5 Postprocessor.
Renishaw Toolsetting Probe.
15 KW 20 HP BagHouse Rated 170 M/3 Minute @ 254 mm Water Gauge. Includes Hoses and Controls.
Fagor Linear Scales on X, Y, U, V, Axis and Rotary Feedback on B and C Axis.
Continuous C- Axis.
Renishaw MP-10 Optical Probe and Software.
Perimeter Light Curtain System.
Specifications and accessories to be confirmed by buyer
