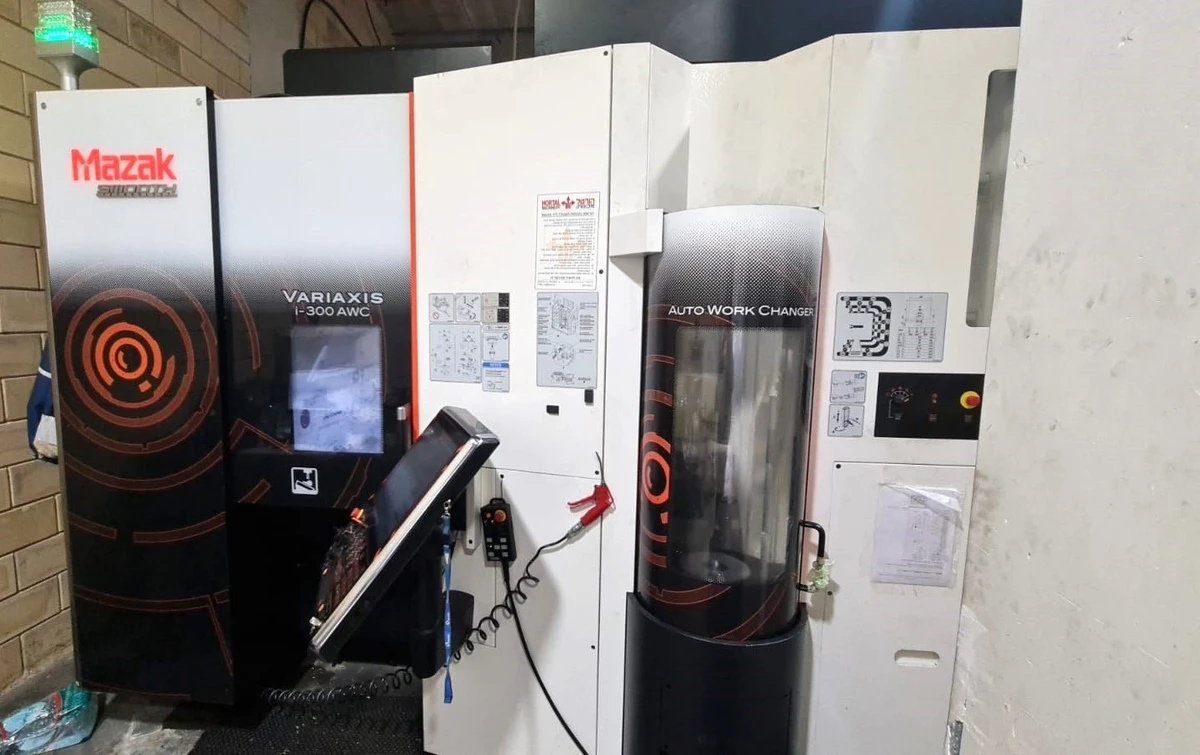

MAZAK VARIAXIS I-300 5-AXIS CNC VERTICAL MACHING CENTER WITH AUTOMATIC WORK CHANGER NEW 2019
Have one to sell?
1 available
MAZAK VARIAXIS I-300 5-AXIS CNC VERTICAL MACHING CENTER WITH AUTOMATIC WORK CHANGER NEW 2019, 18,000 RPM, HSK 100, 205 ATC, COOLANT THRU, LOADED WITH OPTIONS
Standard specifications:
Stroke X-axis travel 350mm
Y axis travel 550mm
Z axis travel 510mm
A axis travel /table tilt -120· ~ +30°
C axis travel /table rotation +/-360°
Table Work holder clamo Interface HSK-A100
Work holder diameter 0130 mm
Snindle Max snlndle soeed 12000mm
Feedrate Raoid traverse rate IX- Y-/Z-axis/A-C-axesl 60 mlmin f 56 m/min I 50 rom
Raoid traverse acceleration 0.7G
Simultaneouslv controlled axes 5
Automatic Tool Charger Tool shank configuration BT-40
Tool Storaoe Canacitv 145
Max. Tool Dia.A..ength (from gauge line}/Wei rll 90 mm/ 350 mm/ 8 kg
Max. Tool Dia, with adjacent tool pockets em rll 130mm
Tool selection method Random selection f shortest oath
Auto work changer
(AWC) Max. workolece size 0 350 mm x 315 mm
Max ln"d 65 ka
Work holder stnraoe 32
Motors Soindle motor /40% ED f Cont. ratinal 22 /15 kW /30/20 hol
Machine size Height 2968 mm
Floor soace 3430 mm X 4930 mm
Sound Equivalent continuous sound pressure level at operator oosltlon ldeoendant on eauioment Less than 80clB (Al
Standard equipment COMPLETE COOLANT SYSTEM WORK LIGHT
ONE SET OF MANUALS (CD) SAFETY SHIELD
ONE SET OF ADJUSTING TOOLS FOUNDATION KIT(ANCHOR BOLTS & PLATES) MAZAK STANDARD COLOR {F WHITEIS BLACK)
THE SAFETY MEASURES ON WORLDWIDE LEVEL MAZATROL SMOOTHX CNC
19" COLOR LCD (TOUCH SCREEN)
POWER TRANSFORMER FOR OTHER MARKETS SPINDLE SPEED 12000 RPM (#40)
MULTIPLE DRUM MAGAZINE 145 TOOLS SPINDLE MULTI-POINT ORIENT(M-CODE/1DEG.) SPINDLE CHILLER UNIT
PREP. FOR MAZAK MONITORING SYS.-B RMP600 MAZA-CHECK
ABSOLUTE POSITIONING SYSTEM COOLERS FOR BALL SCREW (X,Y,Z-AXIS) ROLLER GUIDES
FLOOD COOLANT 1.5KG(21PSl),30L{8GAL) OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH AUTO POWER ON/OFF+ WARM-UP
ATC AUTO RECOVERY
NUMBER DISPLAY MG PANEL (NIA TOOL ID) TOTAL COVER
TOP COVER
SMOOTH STANDARD SOFTWARE FOR MIC
EIA/ISO PACKAGE
F)EIA/ISO FUNCTION SIMULTANEOUS 5 AXES G37.AUTOMATIC TOOL-LENGTH MEASUREMENT DIRECT ENTRY OF DRAWINGS DIMENSIONS SMOOTH RESTART FUNCTION
USS 1/F (1-PORT) LAN PORT
SD MEMORY I/F{1-PORT) + USB I/F{1-PORT) ACCURACY INSPECTION
RELOCATION DETECTOR
Additional equipment• included In the package price 5-AXIS MACHINING PACKAGE FOR SMOOTHX B)CYLINDRICAL INTERPOLATION
SMOOTH SYNCHRONIZED TAPPING
EIA DYNAMIC COMPENSATION 2 (INCLUDED 1)
F)TOOL RADIUS COMPENSATION/ 5-AXIS MAXIMUM PROGRAM SIZE: 8MB
CHIP CONVEYOR REAR DISPOSAL (CONSEP2WS)
MANUAL PULSE GENERATOR(WIRED/DETACHABLE) TOOL LENGTH MEASUR. (RENISHAW PRIMO LTS) TOUCH SENSOR (RMP600) RADIO TYPE
SIGNAL TOWER (3 COLORS LIGHTS.SQUARE) ''"'n
SCALE FEEDBACK SYSTEM FOR A,C-AXIS
SPINDLE SPEED 18000 (HSK63, N/A EUCHNER HI-PRESS.COOLANT THRU SYS(15KGF,213PSI) WORKPIECE AIR BLAST
AWC 40WORK STOCKERS (W/O HOLDER) MULTIPLE DRUM MAGAZINE 205 HSK-TOOLS WORKPIECE CLEANING COOLANT
SEPARATED 700L coolant tank + Secondary clean filter(Filster
