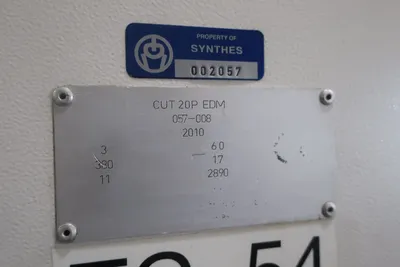

AGIE CHARMILLES CUT 20P CNC WIRE CUT EDM MACHINE, NEW 2010, ONLY 1781 HOURS
Have one to sell?
1 available
AGIE CHARMILLES CUT 20P CNC Wire EDM, 2010, only 1781 hours. Features 5-axis controller, auto wire threading, submerged cutting, and collision protection. Tank 41"x30"x22", 882 lb max part weight, ±25° taper. Compact design: 95"x79"x92".
SPECIFICATIONS:
TANK SIZE 41" x 30" x 22"
TANK CAPACITY 52 Gal Clean/158 Gal Dirty
TABLE DIMENSIONS 27 " x 18"
MAX PART SIZE 35" x 26" x 9"
MAX PART WEIGHT 882 lb
X-AXIS TRAVEL 13.78"
Y-AXIS TRAVEL 9.84"
Z-AXIS TRAVEL 9.84"
U & V AXIS TRAVEL 3.54" x 3.54"
MAX TAPER ANGLE ±25° @ 3.14" Height
WIRE DIAMETER 0.0059" to 0.0118"
DIMENSIONS 95" x 79" x 92"
WEIGHT 6,358 LBS
EQUIPPED WITH:
WINDOWS XP PENTIUM
GF MACHINING SOLUTION TECHNOLOGY
5-AXES CONTROLLER
AUTO WIRE THREADING
AUTO LUBRICATION
SUBMERGED
X AND Y GLASS SCALE FEEDBACK
COLLISION PROTECTED X/Y/Z AXES
2 FILTER CARTRIDGES
THERMOCUT SYSTEM
POWER RECOVERY
SWING TANK DOOR
T-SHAPED BASE FRAME
