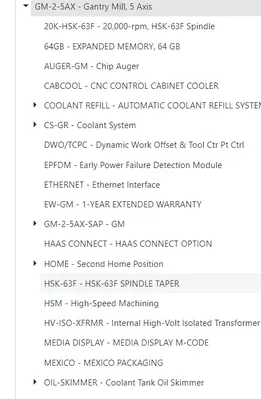

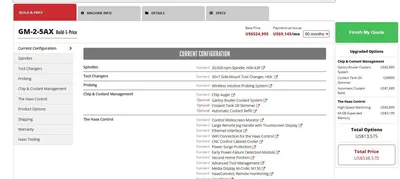

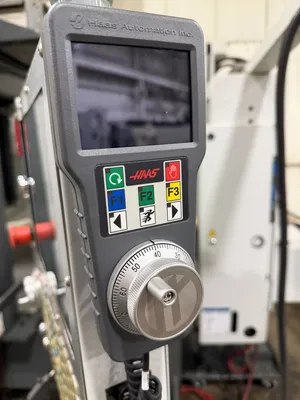

72' X 144" Haas GM-2-5AX CNC Router

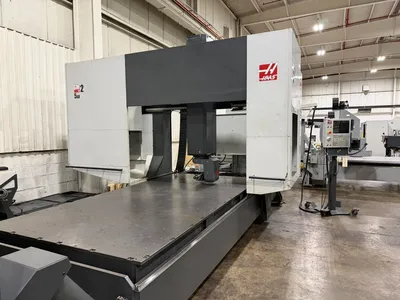

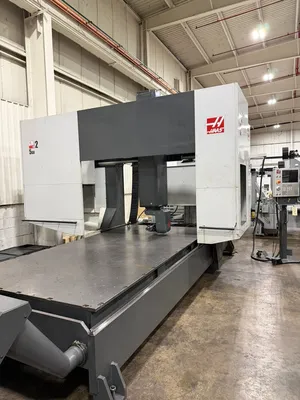

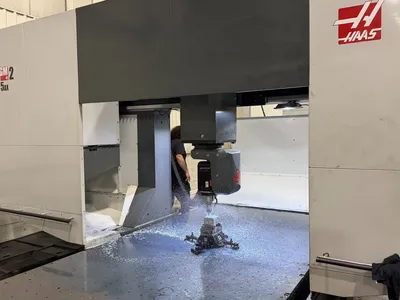

The GM-2-5AX is a 5-axis gantry mill designed for complex, large-part machining, such as airframe components, layup molds, and composite structures. The machine’s rigid steel construction provides a very stable cutting platform, and a 1" thick aluminum table is standard. A traveling guard protects the operator from chips and coolant, and keeps the workspace clean.
• Dual-axis spindle head provides ±245 degrees of C-axis rotation and ±120 degrees of B-axis tilt
• 20,000-rpm HSK 63F spindle
• Rigid-steel construction
• Traveling guard for chip and coolant containment
• 1" thick aluminum table

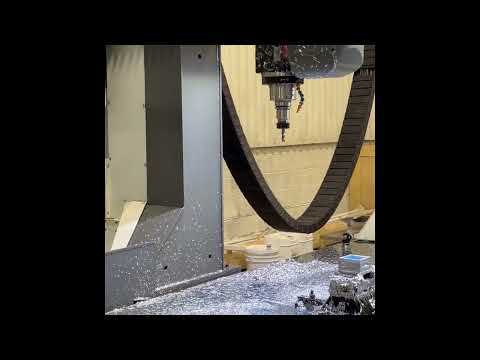

The GM-2-5AX features a 20,000-rpm HSK spindle perfect for trimming composite structures, finish-profiling 3D surfaces, and hole making.
The high-speed spindle is best suited for composites, aluminum, plastics, Ren-Board, and other non-ferrous materials. The 20,000-rpm speed allows for very high surface footage, for great finishes and small tools.
The integral spindle design allows for fast acceleration rates to get the spindle speed up and down quickly. Consult the torque chart for your application.

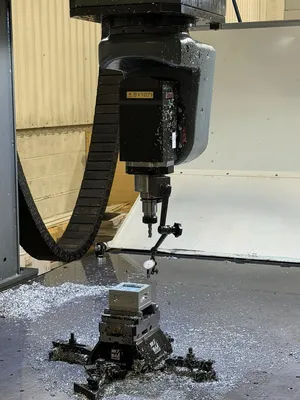

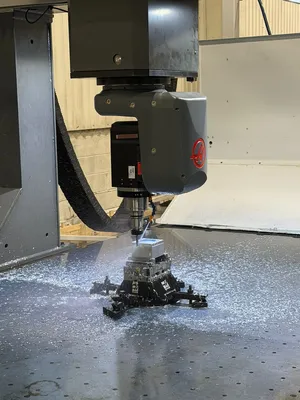

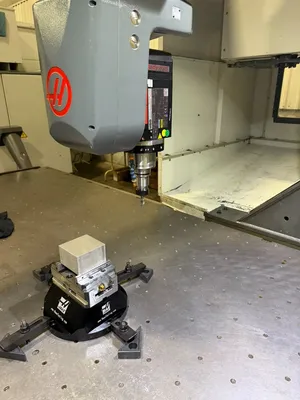

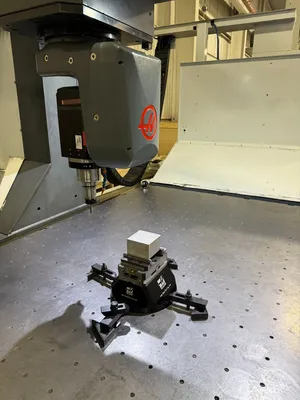

The GM-2-5AX is a full 5-axis “gimbal head” machine, where both rotary axes are mounted on the Z-axis ram, and the spindle/cutting tool assembly rotates, while the workpiece is stationary on the machine table. This allows the cutting tool to point at any angle within the rotary-axis travel limits. (more details on the Haas website)

Tour SAE METRIC
X axis 145.00 in 3683 mm
Axis y 87.50 in 2223 mm
Z axis 39.30 in 998 mm
Spindle nose to table (~max.) 37.0 in 940 mm
Spindle nose to table (~min.) 5.0 in 127 mm
Spindle SAE METRIC
Max power 16.0 hp 12.0 kW
Max speed 20000 rpm 20000 rpm
Max torque 11.3 ft-lb. @ 7500 rpm 15.3 Nm @ 7500 rpm
Drive system Integral Spindle/Motor Integral Spindle/Motor
HSK-63F | HSK-A63 HSK-63F | HSK-A63
Bearing lubrication Grease Packed Grease Packed
Refrigeration Liquid Cooled Liquid Cooled
B-axis balance SAE METRIC
Trips 120 ° to 120- ° 120 ° to 120- °
Max speed 110 °/sec 110 °/sec
Max torque 250 ft-lb. 340 Nm
C Axis - Rotation SAE METRIC
Route ± 245 ° to 245- ° 245 ° to 245- °
Max speed 200 °/sec 200 °/sec
Max torque 258 ft-lb. 350 Nm
Table SAE METRIC
Length 144.0 in 3658 mm
Width 72.0 in 1829 mm
Thickness 1.0 in 25 mm
Max weight on table (evenly distributed) 6000 lb 2722 kg
Between columns 75.0 in 1905 mm
Feedrates SAE METRIC
Maximum cut 472 ipm 12.0 m/min
Fast in X 472 ipm 12.0 m/min
Y Rapids 1889 ipm 48.0 m/min
Rapids in Z 1181 ipm 30.0 m/min
Axis Motors SAE METRIC
Max thrust X 4500 lb. 20017 N
Max thrust Y 1650 lb. 7340 N
Max thrust Z 2000 lb. 8896 N
Tool Changer SAE METRIC
Guy SMTC SMTC

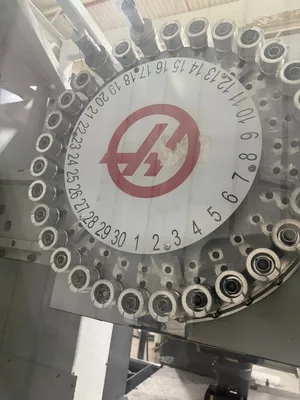

Ability 30+1 30+1
Max tool diameter (occupied) 2.5 in 64 mm
Max tool diameter (void contiguous) 3.5 in 89 mm
Max tool length (from calibration line) 11 in 279 mm
Max tool weight 12.0 lb. 5.4 kg
General SAE METRIC
Refrigerant capacity 95 gal 360 L
Air Requirements SAE METRIC
Air needed 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Dimensions - Shipping SAE METRIC
domestic palette 226" x 143" x 137" 574 cm x 363 cm x 348 cm
Box for export 226 in x 153 in x 143 in 574 cm x 389 cm x 363 cm
Weight 22040 lb. 10000.0 kg
Export Crate for Sheet Metal 89 in x 57 in x 50 in 226 cm x 145 cm x 126 cm
Weight for metal cover box 1400 lb

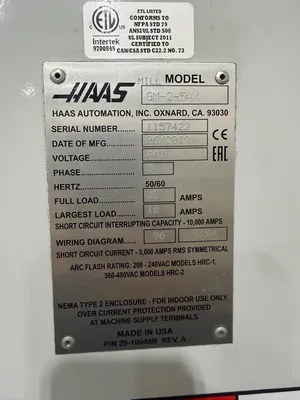

Electrical Specification SAE METRIC
Spindle speed 20000 rpm 20000 rpm
Drive system Integral Spindle/Motor Integral Spindle/Motor
Spindle power 16.0 hp 12.0 kW
AC input voltage (3 phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 40 A 40 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 20 A 20 A
