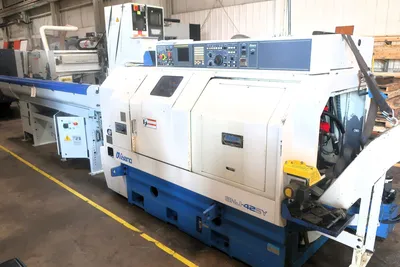

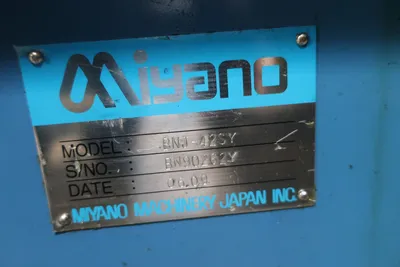

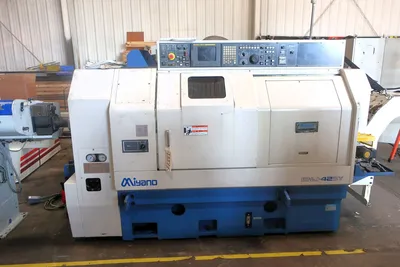

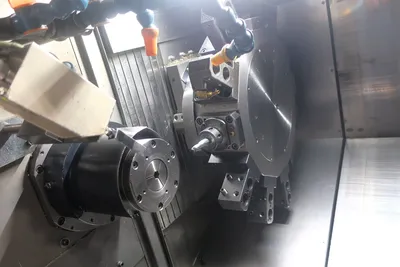

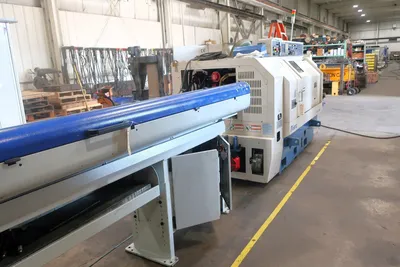

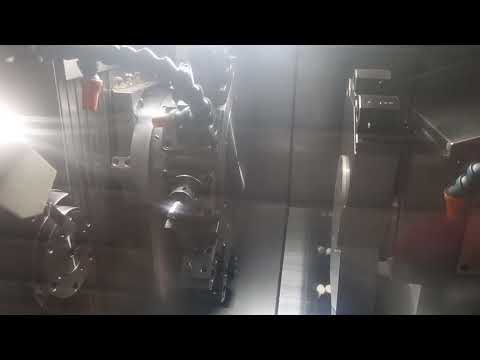

1-5/8" (42MM)MIYANO BNJ-42SY 4-AXIS TWIN TURRET TWIN SPINDLE CNC TURNING CENTER

Bar capacity
L & R Spindle 1.65"
Standard Turning Length 100mm
Size of Power Cuck L/R-Spindle 5"/4"
Spidle:
Spindle Speed Range (L-spindle) 60-6,000 min
Spindle Speed Range (R-spindle) 67-5,000 min
Spindle Motor (30min./cont.) L-Spindle 11/7.5 kW
Spindle Motor (30min./cont.) R-Spindle 5.5/3.7 kW
Slide Stroke (R-Sp) X2 70mm
Slide Stroke R-Sp) Z2 525mm

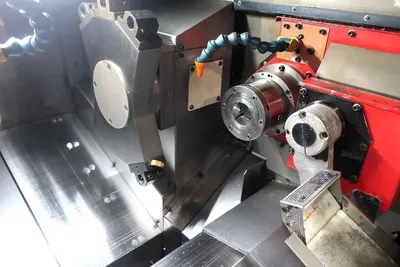

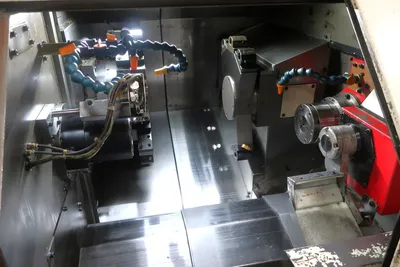

Main Turret:
Type of Turret Station 12 Station
Turret Indexing Time 0.25sec/1st.
Turret Indexing Methods AC Servo/Chuck Curv
Slide Stroke:
X1 165mm
Z1 246mm
Y1 +/-40mm
Back-Working Turret
Type of Turret Station 6 Station
Turret Indexing Time 0.2sec/1st.
Turret Indexing Methods AC servo/Curvic C

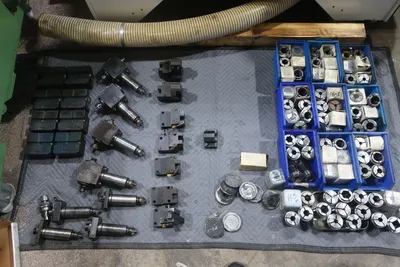

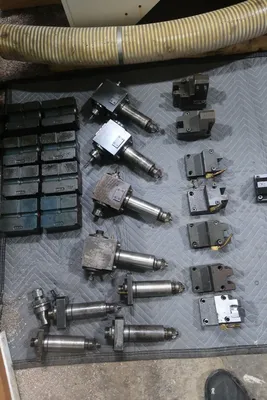

Revolving Tools (Main) Turret/option
No. of Revolving Tools Station 12
Tool Speed Range 60-6,000 min-1
Tool Motor 2.5 kW
Machining Capacity 13mm/M8xP1.25
Machine weight 12,125 lbs
