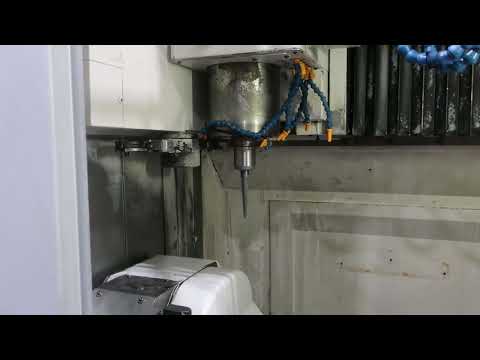

OKUMA MU-400VA 5-AXIS CNC VERTICAL MACHINING CENTER, FROM AEROSPACE COMPANY, 16" ROTARY PLATEN, 4TH AND 5TH AXIS BUILD IN TRUNION, 15,000 RPM
32 POSITION TOOL CHANGER, OSP P200M-H CNC CONTROL
Okuma MU400VA CNC Vertical Machining Centre (2007)
Description:
Control OSP P200
Table working surface - 15.75", Max table load - 600lbs, X Axis travel - 30", Y Axis travel - 18.11", Z Axis travel - 18.11", A Axis trunnion tilt - +20 to -110deg, B Axis table rotation - 360deg, Table surface to spindle nose - 3.94" - 22.05", Rapids X & Y - 15.75 IPM, Spindle taper - CAT 40, Spindle speeds - 16000 RPM, Spindle Motor - 20HP, Tool magazine capacity - 32
Table Size 15.75" Dia
Table Load Capacity 660 LBS
# Axis 5
X-Axis (Longitudinal Travel) 30"
Y-Axis (Cross Travel) 18.11"
Z-Axis (Vertical Travel) 18.11"
A-Axis (Trunnion Tilt Range) (±25°) +20° to -110°
C-Axis Table Rotation Positioning 360,000°
Max/Min Clearance Table Top to Spindle Nose 22.05" / 3.94"
Distance Floor to Table Top 41.34"
Rapid Traverse Rate (X, Y, & Z Axis) 1,574 IPM
Spindle Horsepower 20 HP
Max Spindle Speed 15,000 RPM
Spindle Taper MAS BT40 Big plus
Coolant Thru Spindle yes
Automatic Tool Changer Capacity (ATC) 32
Electrics 220/3/60
Approximate Machine Dimensions 114" x 160"
Approximate Machine Height 116"
Approximate Machine Weight 17,000 LBS
OKUMA OSP P200M-H CNC CONTROL
BUILT IN 4TH AND 5TH AXIS 16" DIAMETER TRUNION TABLE
15,000 RPM SPINDLE
LASER TOOL SETTER
32 POSITION AUTOMATIC TOOL CHANGER
COOLANT THRU SPINDLE
CHIP CONVEYOR
