Onsrud F408G24 "5-Axis Pro Series" CNC ROUTER New 2022 5' x 34' table, 28" z axis

2022 MODEL F408G24 "5-Axis Pro Series" CNC ROUTER
C.R. ONSRUD "5-Axis Pro Series" CNC ROUTER PRICE QTY TOTAL
ONE (1) NEW C.R ONSRUD MODEL F408G24 "5-Axis Pro Series" CNC ROUTER
with: Thermal Heat Treated, Stress Relieved, & Normalized, Two-Piece Steel Frame Base, & Thermal Heat
Treated, Stress Relieved, & Normalized Steel Bridge; Dual Support, Dual Drive, Moving Gantry, Fixed Table
Design with standard 2,000” per minute machining speed, full 3-D capability, precision ball screw drives for Z
& Y axis, case-hardened, precision ground, helical rack & pinion drives for X axis, precision linear profile guide
ways, centralized manual lubrication system. SINGLE FIXED TABL , w/independently controlled vacuum
zones & full table coverage. Each zone has low vacuum sensing safety shut-off with override capability.
Includes all switches, valves, gauges, safety interlocks, & Vacuum Plumbing necessary for either suck through
or dedicated spoil boards, & is easily modified for the useof pod systems. Moving gantry has a pressure
sensitive safety-stop / emergency-stop bar. Price Includes CR Onsrud Inc. Training School and a limited
two-year warranty on all parts & labor FOB the factory.
Price FOB Troutman, NC INCLUDED 1 INCLUDED
Issued: December 29, 2021
Expires: January 28, 2022
P.O. Box 419 • 120 Technology Dr. • Troutman, NC 28166
PH. (704)528-4528 • FAX (704)528-6170
-2-
408 - 5x34 - Work Envelope
CR ONSRUD Phenolic High-Flow Universal Vacuum Table System - Includes: oversized 4” intake
manifold, high-capacity phenolic vacuum plumbing, high-flow 45mm grid waffle patterns, with Onsrud’s Unique
High Flow Vacuum Inlets, to offer maximum vacuum airflow & absolutely minimal airflow restriction for
excellent part holding. STANDARD 1 INCLUDED
High Flow Vacuum Zone - Pneumatic Ball Valve, Actuated via Push Button or PLC Controlled INCLUDED 8 INCLUDED
28-inches of Z stroke - Z-stroke of the ram is 28in. With standard 3-axis head, Clearance from spindle gauge
line to table is 31in. With standard 5-axis head height of 23in, Clearance from spindle gauge line to table is
28in. INCLUDED 1 INCLUDED
5x34 - Phenolic Vacuum Grid Table - Enables the conversion from total flow-through vacuum hold-down to
pods, pins, fixtures, etc. to an industry standard 30mm center distance grid system. Includes removable
spoilboard that fastens to grid table for use during nested based machining. INCLUDED 1 INCLUDED
Controller

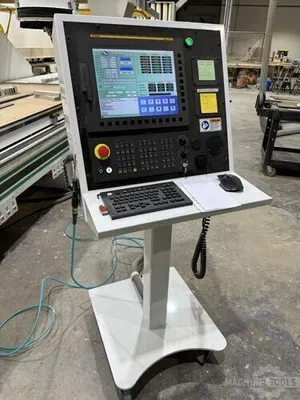

FANUC 31i-B5 Machine Controller System Option With Integrated PC Interface - Industrial CNC Machine
Controller with Fanuc Panel-i HMI w/High Res touch screen. Fanuc 31i-B5 is not a PC with a control card but
is a dedicated Industrial PLC designed to control CNC motion, for maximum reliability and performance.
Includes: Network capability, adds Larger FANUC Digital Drives & Servos. Includes Full remote diagnostic
troubleshooting capabilities. Adds m-code controlled vacuum zones (if equipped with Vacuum Table Option).
Provided with 4-port network hub (requires 460V out isolation transformer). INCLUDED 1 INCLUDED
Head Options
5-Axis - 24 HP Spindle - 4-Pole, 18Kw, 24HP – 24,000 RPM Double-Armature, 5-Axis Long Nose Spindle w/
HSK-63F Spindle Taper, fully programmable & reversible, variable speed, liquid cooled, quick-change spindle,
capable of routing & drilling, programmable feed rates w/override capability. A-Axis Rotation +/- 120 degrees,
C-Axis Rotation + 300 / - 115 degrees. INCLUDED 1 INCLUDED
Chiller for Liquid Cooled Spindle Option - Adds a liquid cooling system & chiller in place of the standard fan
& compressed air spindle cooling system. (Recommended when machining mostly non-ferrous metals or
when using 20HP spindles or larger) INCLUDED 1 INCLUDED
Tool Changer Options
12 Tool - Dynamic Automatic Rotary Tool Changer - Fully Servo controlled instead of Stepper controlled or
Rack-Style tool changers. Design eliminates misfires & quickly changes between 12 different tools – Able to
Store Aggregates. You may require C-Axis or separate Aggregate Tool Changer option to hold some larger or
non-standard aggregates. INCLUDED 1 INCLUDED
Machine Lubrication Systems Options
Standard Centralized Manual Greased Lubrication INCLUDED 1 INCLUDED
Remote Pendant Options
FANUC MPG Handheld Remote Jog Pendant - Manual Pulse Generator, Portable, Axis Select Switch (X, Y,
Z, 4), with LED and Multiple Switch (x1, x10, x100) INCLUDED 1 INCLUDED
Retrofit Prewiring Options
Factory Pre-Wire & Retrofit Kit - This must be installed by CR Onsrud when the machine is purchased. This
will allow you to retrofit any one of the following items (must be specified at time of original order) at the
current price of the option on a new machine. A retrofit may or may not still be possible without this kit. If the
retrofit is possible, the pricing may be more expensive without this option. The prices below already include
the necessary parts, but do not include technician labor, travel & lodging expenses.
Estimated Price for Option
Automatic Oil Fog Mist Lubricator Retrofit - $1,250
Automatic Aggregate Tool Changer & Aggregate Capability Retrofit -
Drilling Block Retrofit - $12,483
INCLUDED 1 INCLUDED
Isolation Transformer Options
27kVA Isolation Transformer - recommended for 24HP spindles, dual process, or twin-head models as
electrical noise filter. 6-tap, non-compensating transformer can be specified for your voltage in/machine
voltage out for either 460V or 230V nominal. Other voltages are additional charge. INCLUDED 1 INCLUDED
Electrical Cabinet Cooling Options
Air Conditioned Electronics Cabinets - Recommended for extreme environments & some non-temperature
controlled workplaces. Option replaces the standard heat exchanger system. INCLUDED 1 INCLUDED
-3-
Other Options
Removable Dust Hood - Integrated Dust Extraction hood pulls chips away from the spindle’s nose & up a
separate chamber & hood to effectively remove chips from the machining process. This hood will be able to be
used during vertical 3-axis machining, and some machining with the 5-axis head tilted at a slight angle. This
hood must be removed for any horizontal or near-horizontal machining with the 5-axis head. INCLUDED 1 INCLUDED
Additional Tool Holder Options
Extra HSK-F63 Standard Tool Holders - 1” collet capacity (each with chuck nut) 1 AVAILABLE
Part Positioning System Options
Pneumatic Controlled Pop-Up Perimeter Positioning Pin - for easier sheet placement INCLUDED 3 INCLUDED
Solenoids for Pop-Up Pin Control INCLUDED 1 INCLUDED
Enhancements Options
Faro Rental - Per Day of Faro Laser Tracker rental. Used to laser align machine. Price includes rental of
equipment and an operator. Customer will be responsible for shipping costs. Any delay in returning the
equipment will be charged at 50% of the daily rental cost, per day it is not returned. INCLUDED 1 INCLUDED
RMI-Q RF Receiver - For the RF Receiver only portion of Renishaw Probe system. For use when Renishaw
Probe will be manually moved between systems and Probe is already purchased. Note a repairing process is
required each time the probe is moved. Macros and software for measurement are generally customer specific
and are not included. It is recommended to add additional training days for learning how to write probing
programs from variable input. INCLUDED 1 INCLUDED
Inspection+ Software by Renishaw - Includes a set of macros for common probing routines. Requires user
to call macros at desired time and pass variables into macros for measurement positions. Additional customer
specific training is also recommended for creating programs that use the variable data. INCLUDED 1 INCLUDED
RF Touch Probe System (Renishaw RMP60 or equivalent) - Includes hardware capable of wirelessly
measuring holes, planar surfaces, centers between holes, and outputs points & coordinates. Macros and
software for measurement are generally customer specific and are not included. It is recommended to add
additional training days for learning how to write probing programs from variable input. Requires RMI-Q RF
Receiver (sold separately) INCLUDED 1 INCLUDED
Tooling Measurement System Options
5-axis Premium Tool Maintenance Package - Includes: 5-axis Calibration Bar, Torque Wrench to ensure
proper collet tightening, Premium tool holder clamp stand - fits all HSK-63 tool holders, HSK spindle wiper, two
tool clips (for machines with tool clips), and Rust Free, T-9, & Collet Brush kit to help maintain your tool
holders and collets INCLUDED 1 INCLUDED
TS27R Wired Length & Diameter Tool Setter - Renishaw TS27R is wired to the machine in order to enable
the user to set tool length and diameter of rotating tools via standard macro. Note all tool geometries may not
work with mechanical tool setters. INCLUDED 1 INCLUDED
Onsrud Digital Bench-Top Tool Setter - allows you to measure tools off-line in seconds and be ready for the
next job while the machine is still in production. INCLUDED 1 INCLUDED
Vacuum Options
40HP Dekker V-Max Liquid Ring Vacuum Pump - 550 CFM System @ 29”/hg; 781 m3/hr @982Mb. Pricing
applies for 460V models; other voltages are an additional charge.
Includes: Exhaust Drip Leg, Spin On Oil Filter, Vacuum Relief Valve, Inlet filter, and ControlDek Panel with
Osync integration capabilities

High Flow Vacuum Zone - Pneumatic Ball Valve, Actuated via Push Button or PLC Controlled. Includes
custom vacuum zoning requested by Customer and agreed to by CR Onsrud on signed Table Layout drawing INCLUDED
5x34 - Aluminum Vacuum Grid Table UPGRADE - UPGRADE Phenolic Grid Table to: Aluminum Grid Table
with standard 30mm center distance grid table enables the conversion from total flow-through vacuum
hold-down to pods, pins, fixtures, etc. with higher accuracy part positioning. Includes removable spoilboard
that fastens to grid table for use during nested based machining. INCLUDED 1
Part Positioning System Options
Solenoids for Pop-Up Pin Control INCLUDED 4 $1,035.00
Pneumatic Controlled Reference Pop-Up Perimeter Positioning Pin - Hard reference pins allow for a more
accurate part placement along the contact points of the pins. This option includes the custom locations
requested by Customer and signed off on CR Onsrud's Pin Layout drawing. INCLUDED 10
Pneumatic Controlled Pop-Up Perimeter Positioning Pin - for easier sheet placement INCLUDED -3
