2013 HAAS VF-2SS 5-Axis Super Speed Vertical Machining Center, equipped with HRT-210 trunnion, CNC control, 24-position SMTC, Renishaw probe, and thru spindle coolant. Travels: X 30", Y 16", Z 20". Max speed 12,000 RPM, 30 HP, 1,500 lbs table capacity.
Travels
X-Axis 30"
Y-Axis 16"
Z-Axis 20"
Spindle Nose to Table (- min) 4"
Spindle Nose to Table (- max) 24"
Table:
Length 36"
Width 14"
T-Slot Width 5/8"
T-Slot Center Distance 4.92"
Number of Std T-Slots 3
Max. Weight on Table (evenly distributed) 1,500 lbs.
Spindle:
Max. rating 30 HP
Max. speed 12,000 RPM
Max. Torque 90 ft-lb @ 2000 RPM
Drive System inline direct-drive
Taper CT 40
Bearing lubrication Air/Oil injection
Cooling Liquid/Cooled
Feedrates:
Rapids on X 1000 in/min
Rapids on Y 1000 in/min
Rapids on Z 1000 in/min
Max. Cutting 833 in/min
Tool Changer:
Type SMTC
Capacity 24+1
Max. Tool Diameter (adjacent empty) 5"
Max. Tool Diameter (full) 3"
Max. Tool length (from gage line) 11"
Max. Tool weight 12 lb.
Tool-to-Tool (avg) 1.6 sec.
Chip-to-Chip (avg) 2.2 sec.
General:
Air required 4 scfm, 100 PSI
Coolant capacity 55 gal
Machine weight 8,000 lbs
CNC Control

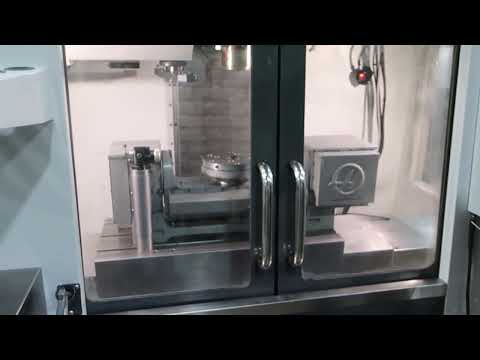

HRT-210 5-axis trunnion table

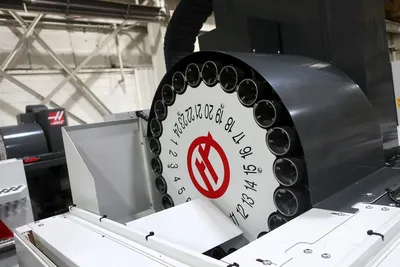

24 position side mount tool changer
renishaw probe
thru spindle coolant 300psi
programable coolant nozzle
chip auger
coolant filter
Buyer's choice of CT-40 or BT-40
