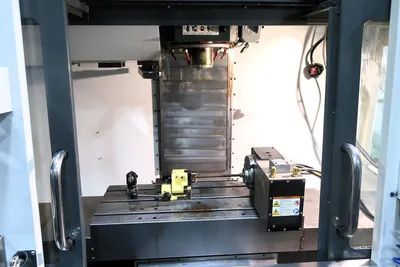

Discover the 2014 HAAS VF-2 CNC, a versatile 4-axis machining center featuring 30" x 16" x 20" travel, 10,000 RPM spindle, and advanced controls. Equipped with RENISHAW toolsetter probe, chip conveyor, and 4th axis drive with rotary table for enhanced efficiency.
X-Axis Travel 30"
Y-Axis Travel 16"
Z-Axis Travel 20"
Table 36"x14"
Max. Spindle Rating 20 HP
Max. Spindle Speed 10,000 RPM
Drive System Inline Direct-Drive
Taper CT40
Feedrates:
X, Y, Z Rapids 1000 in/min
Max. Cutting 833 in/min
Tool Changer Type carousel
Capacity 20 + 1
Machine weight 8,000 Lbs.
Haas CNC Controls
24 Position SIDE MOUNT Automatic Tool Changer
10,000 RPM Inline Direct Drive Spindle
RENISHAW Toolsetter Probe
Chip Conveyor
Coolant System, Splash Guards
rigid tapping
4th axis drive AND ROTARY TABLE
programmable coolant nozzle
RIGID TAPPING
