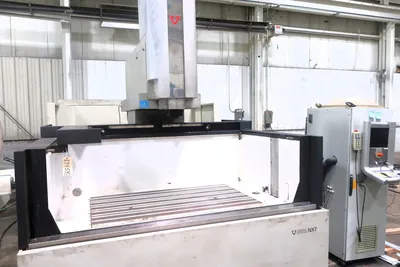

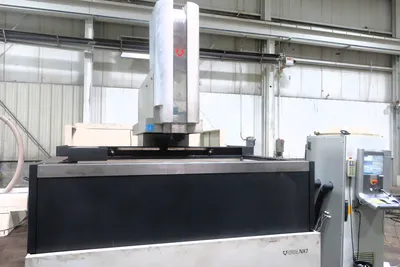

ONA NX7 CNC DIE SINKER EDM LARGE FORMAT, NEW 2014
Have one to sell?
ConditionUsed
1 available
ONA NX7 CNC EDM LARGE FORMAT, NEW 2014
59" X 29.5" Y 25.5" Z, C-AXIS, PLUS TRUNNION ON TABLE
200 amp generator, (2) 11 Position tool changers, Glass scale,
X-axis travel (individual) 1.500 mm 59.05 in
Y-axis travel 700/1.000 mm 29.53 / 39.37 in
Z-axis travel 650/800 mm 25.59/31.50 in
Max. distance between table and head 1.200 mm 47.24 in
Worktank internal dimensions Length 2.300 mm 90.55 in
Width 1.500 mm 59.05 in
Height 1.000 mm 39.37 in

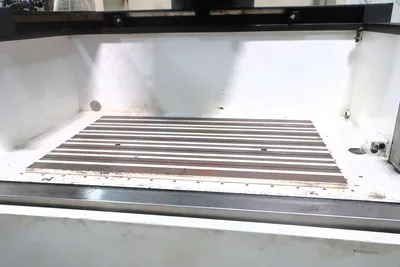

Work table dimension 1.700 x 1.000 mm 66.92 x 39.37 in
Allowable weight on the table 15.000 kg 33070 Ibs

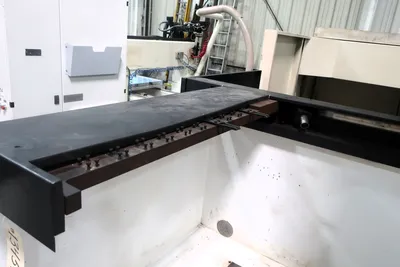

Type of work tank Abatible Drop door
Maximum electrode weight 300 kg 440 Ibs
Intensity of the generator 100|200|400 A 100|200|400 A

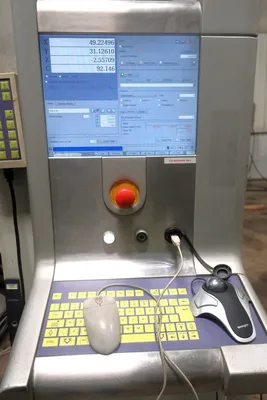

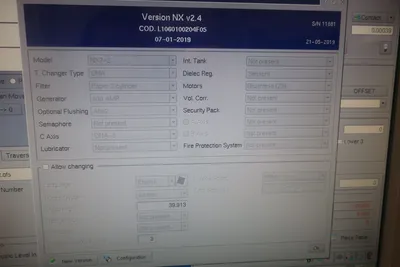

CNC CONTROL
C-AXIS
200 AMP GENERATOR WITH VOLTAGE STABILIZER
(2) 11 POSITION TOOL CHANGERS

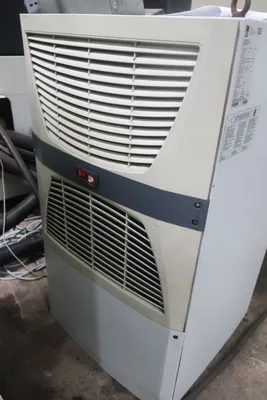

Dielectric cooler (200 Amp)
PRESSURIZED GLASS SCALE
TRUNNION TABLE
AUTO LUBRICATION
FUME EXTRACTION SYSTEM (NON VENTING)
TRANSFORMER
Script programming module for Automatic Probing cycle of
the part and the electrode
