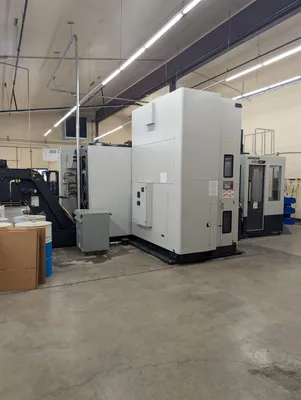

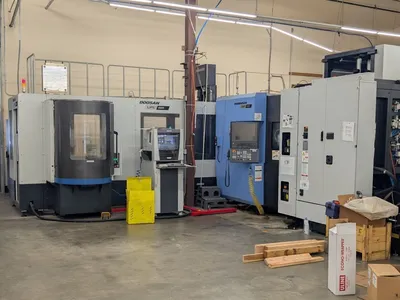

2018 Doosan NHP4000 CNC 4-Axis Horizontal Machining Center with LPS4000 12-Pallet Pool and 275 Position Tool Changer. Powered by Fanuc 31i-B Control, offers rapid traverse rates, high spindle speed, and extensive tool capacity. A robust solution for precision machining.
Type of CNC Control Fanuc 31i-B Control
Capacity: X-Axis Travel 22.047 in (560 mm)
Capacity: Y-Axis Travel 25.196 in (640 mm)
Capacity: Z-Axis Travel 25.984 in (660 mm)
Capacity: Table Loading Area (15.75 x 15.75 in)
Capacity: Maximum Part Diameter 24.8 in (630 mm)
Capacity: Maximum Part Height (with no hydraulic interface) 35.43 in (900 mm)

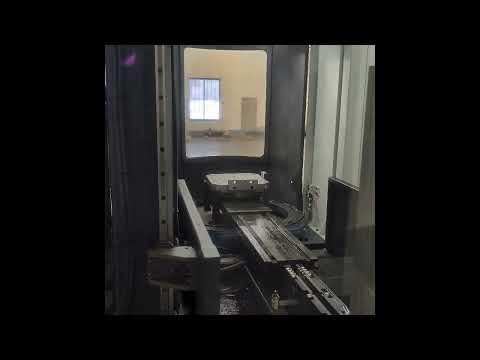

Indexing Table and Pallet Changer: Indexing Full B-Axis
Indexing Table and Pallet Changer: Pallet Surface (Standard, no Center Bushing) (24) M16 x 2.0 Tapped Base
Motion: X, Y and Z Axes Rapid Traverse Rate 2,362 ipm (60 m/min)

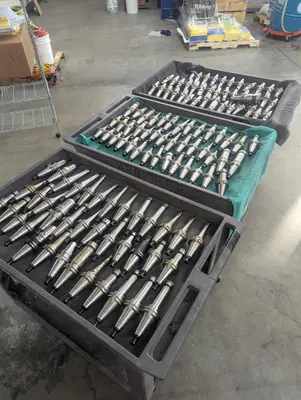

Spindle: Big Plus Spindle System CAT 40 Big Plus
Spindle: Spindle Speed 15,000 rpm
Spindle: Spindle Motor (S3 25%) 25 / 49.6 hp (18.5 / 37 kW)
Spindle: Spindle Torque (S3 10%) 223.6 ft-lbs (303 nm)
Automatic Tool Changer Specifications: Number of Tools 275
Utility: Power Required 80 kVA / 210 amps @ 220v
Utility: Voltage Required - Fanuc 2-5-235 Volts / 3 Phase
General: Machine Height 105.9 in (2,690 mm)
General: Floor Space Required (L x W) 195 x 90.55 in (4,950 x 2,300 mm)
General: Machine Weight 21,384 lbs (8,700 kg)

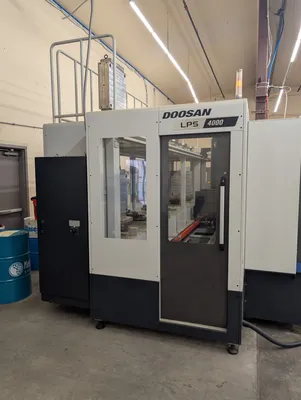

DN Linear Pallet System yes
Description LSP 4000 for NHP 4000
Pallet Dimension 15.7 x 15.7 in (400 x 400 mm)
Workpiece Diameter 24.8 / 23.6 in (630 / 600 mm)
Workpiece Weight 881.8 lbs (440 kg)
Forking Type Single Fork (Telescopic Mechanism)
Turntable Indexing 45Ń
Power Supply (AGV) Trolley Bar
(AGV<-> Main Control) Optical
Number of Machines Expandable 1 ~ 7
Number of Setup Stations 1

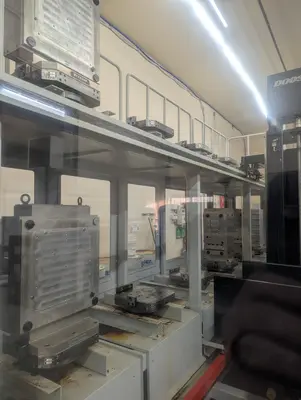

Number of Pallet 12 (6 x 6 Double Stack)
275 Position Matrix Tool Magazine
LPS4000-12
LNS\Turbo, MF2, rear discharge, filtering chip conveyor
ChipBLASTER Modular* 1,000 PSI, 2-8 GPM variable flow coolant system
MistBLASTER Modular* 1200 CFM mist collector.
Renishaw NC4 universal tool setting probe.
Renishaw RMP60 spindle probe,
BK Mikro, tool changer mounted, broken tool detection system.
(2) Pallets with tombstones included with machine
(ball lock fixture plates will be removed)
*New price of this machine was $680,000
