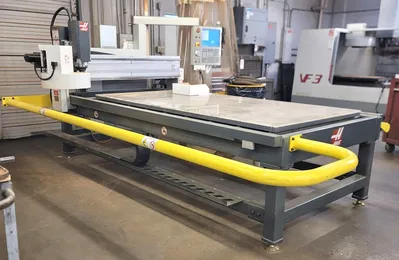

4' x 8' HAAS SR-100 3-AXIS CNC ROUTER, NEW 2012
Have one to sell?
1 available
4' x 8' HAAS SR-100 3-AXIS CNC ROUTER, NEW 2012, 10 POSITION TOOL CHANGER, HSD 24,000 RPM SPINDLE, 30 TAPER, VACUUM PUMP LOW HOURS
Machine control: Haas CNC Control
Table size: 96"x48"
X-axis travel: 100"
Y-axis travel: 52"
Z-axis travel: 8"
Distance between columns: 62.5"
Distance spindle nose to table top: 3" to 11"
Spindle speeds: 0-24,000 rpm HSD
Spindle taper: ISO 30
Spindle motor: 5 HP
Tool magazine capacity: 10 Station Tool Changer
Rapid traverse rates (x, y, z): 2000 IPM, 2000 IPM, 590 IPM
Cutting feedrates: 1,000 IPM
Machine dimensions lxwxh: 159"x118"x69"
Machine weight: 2,800 lbs
HAAS CNC CONTROL
10 POSITION TOOL CHANGER
5HP HSD 24,000 RPM SPINDLE

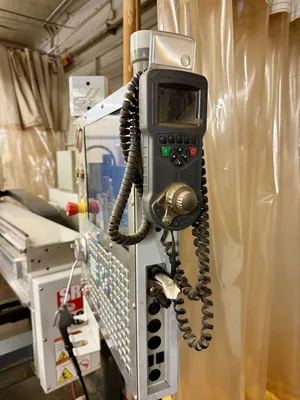

REMOTE JOG HANDLE
HIGH SPEED MACHINING
VACUUM TABLE

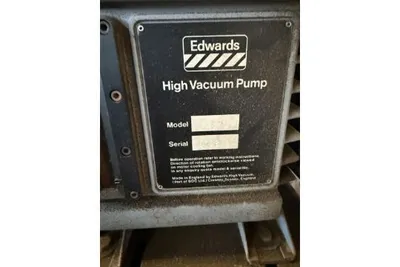

EDWARDS VACUUM PUMP
