Swing Over Bed: 30.7″
Swing Over Saddle: 24.8″
Bar Working Diameter: 3.20″
Maximum Turning Diameter: 14.80″
Maximum Turning Length: 29.9″
MAIN SPINDLE:
Spindle Speeds: 4,000 RPM
Spindle Nose: A2-8
Spindle Bore: 3.58″
Minimum Spindle Indexing Angle (C-axis): .001 Degree
Main Motor: 30 HP
TRAVELS:
X-Axis Travel: 10.2″
Z-Axis Travel: 32.67″
Y-Axis Travel: 4.13″
B-Axis Travel: 32.67″
Rapid Traverse (X/Z Axes): 1,181 IPM
Rapid Traverse (Y-Axis): 394 IPM
SUB-SPINDLE (B-Axis):
Maximum Spindle Speed: 6,000 RPM
Sub-Spindle Nose: A2-5
Sub-Spindle Minimum Programmable Angle: .001 Degree
Spindle Motor (30 Min./Continuous): 20 HP

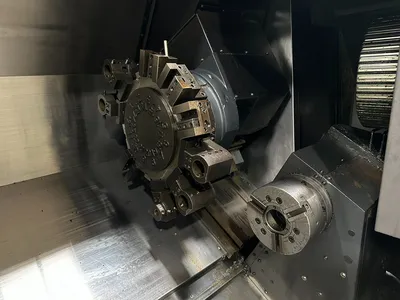

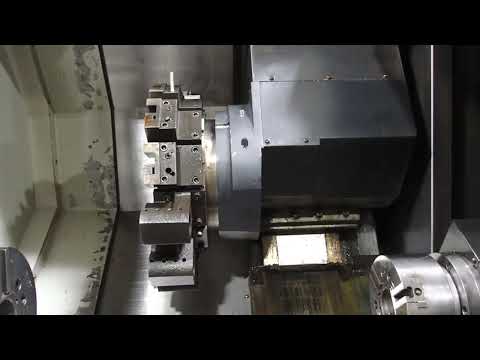

TURRET:
Number of Tool Stations: 12
Turret Index Time (next station): 0.15 Seconds
Maximum Rotary Tool Speed: 5,000 RPM
Live Spindle Motor: 10 HP

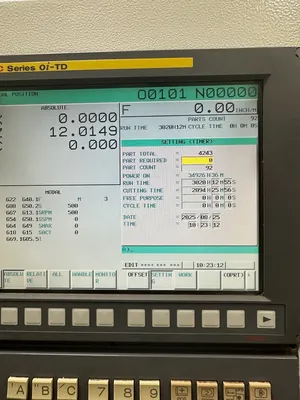

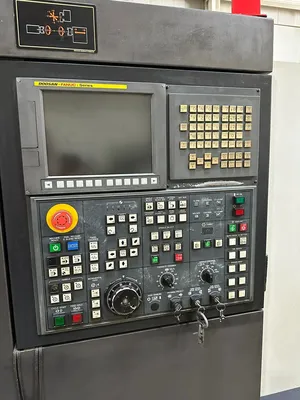

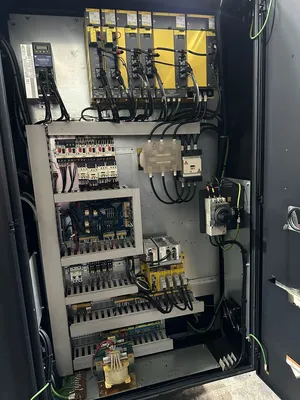

Fanuc i Series
Chip Conveyor
Tool Presetter

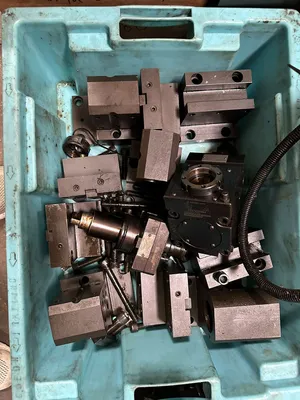

4 Live Tools (3 axial, 1 radial) plus static holders
Live Tooling

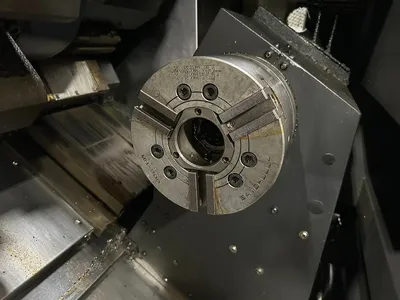

Sub Spindle
Y Axis
5 Axis

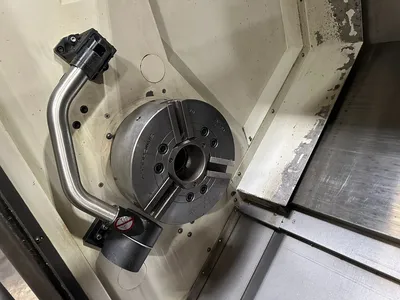

12" Main& 8" Sub Samchully Chucks

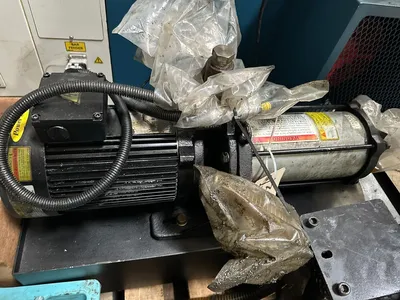

High Pressure Coolant
Mist Collector
This equipment has been sold. Similar equipment available now is shown below.
