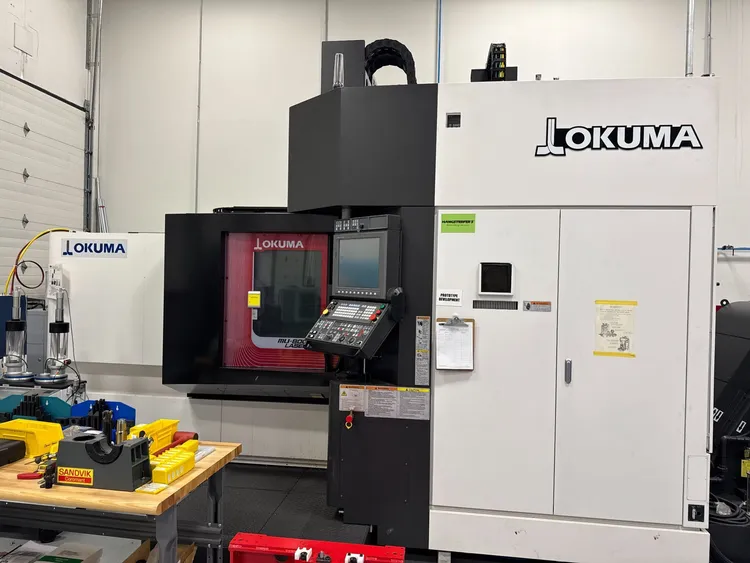

2017 Okuma MU-8000V-L 5-Axis CNC Mill with Turning Capability
Have one to sell?
$499,500.00 USD
1 available
The MU-8000V LASER EX revolutionizes production by combining the latest laser additive technology with subtractive machining capabilities. This super multitasking CNC machine implements laser metal deposition (LMD) technology with the ability to cut unique parts of many different sizes and shapes.
LMD supplies powder from nozzles and performs laser melting and bonding to the parent material. This allows for various types of materials to be combined and layered, in addition to the possibility of 3-dimensional fabrication and cladding.
Parts can also be repaired and inspected throughout production, and an infinitely variable control of laser spot diameters (Ø0.4 to 8.5 mm) increase efficiency and resolution.
By implementing laser metal deposition (LMD) instead of laser metal fusion (LMF), Okuma’s MU-8000V LASER EX offers these advantages:
Mid-process part inspection and material exchange
Coolant use in work envelope
Faster process than powder bed fusion
3-dimensional fabricating
X – Axis: 36.42″
Y – Axis: 41.34″
Z – Axis: 23.62″
Swivel range (A-axis): + 90 / – 120 Degrees
Turning range (C-axis): 360 degrees
Distance Between Spindle Nose and Table: 7.87″ – 31.50″
Rapid Traverse Rates X,Y,Z Axis: 1,969 IPM
Max Cutting Feedrate X,Y,Z Axis: 1,969 IPM
Table Size: ⌀ 31.50″
Workpiece Diameter: ⌀ 31.50″
Workpiece Height: 21.65″
Max Weight on Table: 1540 lbs
Turning Table Speed: 800 RPM
Taper Size: HSK-A100
Speed Range: 15,000 RPM
Spindle Power: 35 hp
Capacity: 48 Tools
Taper: HSK-A100
Max Tool Size: 5.98″ x 15.75″
Max Tool Weight: 26.4 lbs.
Air Required: 100 psi, 4 scfm
Power: 60 Hz / 3-Phase
Overall Dimensions: 208″ x 118″ x 143″ High
Machine weight: 40,920 lbs. Approx.
Okuma OSP-P3005A-H CNC Control
5 Axis Simultaneous Machining
Programmable Swiveling Trunnion Table
15,000 RPM High Speed Spindle
48 Station Automatic Tool Changer
HSK-A100 Spindle Taper
Turning Operation Up to 800 RPM on C Axis
Blum Tool Break detection
Auto Gauging
Gear Cutting Pkg
Laser Oscillation Device 4KW – TruDisk 4002 for Additive Machining
(Machine Can Be Used With or Without Laser Device)
Powder Nozzles, Powder Feed unit, Powder Conveyor
Chiller for Laser Oscillation Device
Dust Proof for Axis
Dynamic Fixture Offset
Riedel Chiller & Dust Collection
Chip Conveyor with Right Side Disposal
Coolant System
***New Price of this machine was $1.8M***
Running hours- 11840:02
Operating hours- 1356:01
Cutting hours- 1115:26
Not operating hours- 10483:56
Spindle run hours- 1231:27
