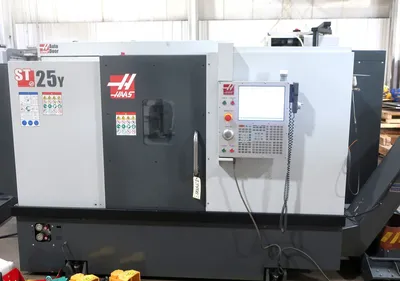

HAAS ST25Y Multi-Axis CNC Lathe
SPECIFICATIONS:
LIVE TOOLING
SUB SPINDLE
Swing Over Front Apron – 21.0″
Swing Over Cross Slide – 20.8″

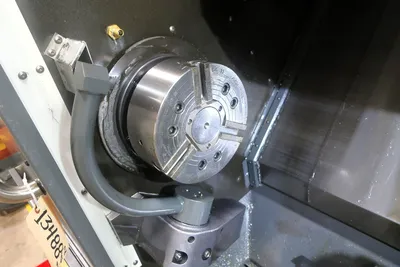

Chuck Size – 10″ (3-Jaw)
Maximum Cutting Diameter – 11.75″
Maximum Cutting Length – 22.5″
Spindle Bore – 3.5″
Bar Capacity – 3.0″
X-Axis Travel – 8.4″
Y-Axis Travel – +/- 2.0″
Z-Axis Travel – 22.5″
Main Spindle Nose – A2-6
Main Spindle HP – 30 HP
Main Spindle Speeds – 3,400 RPM

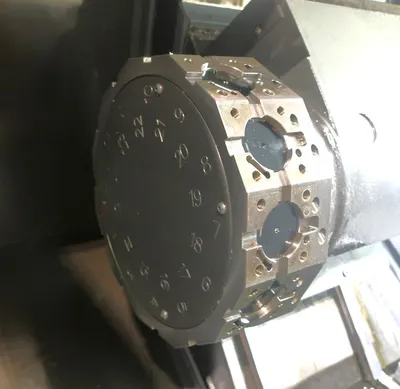

Turret Positions –24 Positions (upgrade)
Live Tooling – BMT65
Live Tooling Speeds – 6,000 RPM (upgrade)
Coolant Tank Capacity – 55 Gallons
Approximate Dimensions (without conveyor) – 130″ x 64″ x 77″
Approximate Machine Weight – 12,300 lbs.
– Haas NextGen Control
– Main Spindle C-Axis

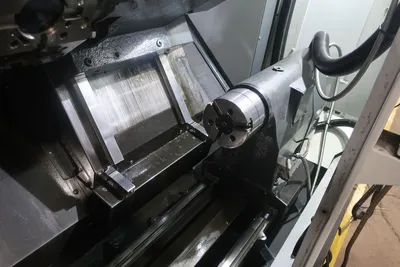

– Sub-Spindle (A2-5 Finishing Sub-Spindle) – 5.3″ Hydraulic Chuck
-10" 3-jaw chuck
– 64 GB OnBoard Memory
– Early Power-Failure Detection Module
– Ethernet Interface
– Haas Connect
– Rigid Tapping
– Spindle Orientation
– Touch Screen Interface
– High Pressure Coolant System (300 psi)
– Automatic Tool Presetter
– Belt Type Chip Conveyor
– High Intensity Lighting
– Parts Catcher
– Remote Jog Handle touchscreen
-8 Spare M Functions
-Auxillary coolant filter
-Auto Door
-CNC Cabinet Chiller
-Chip tray filter
Auto coolant refill
-enclosure exhaust system
-auto jet air blast
-6K live tooling upgrade
-24 Station turret BMT65
-User defined Macros
-coolant tank oil skimmers
-Visual programming system
-WiFi connection
-WiFi Camera
WHIPS intuitive probing enabled (no probe)
Approx. New replacement price as built is over $200,000
-
