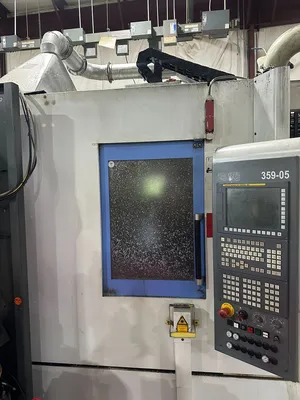

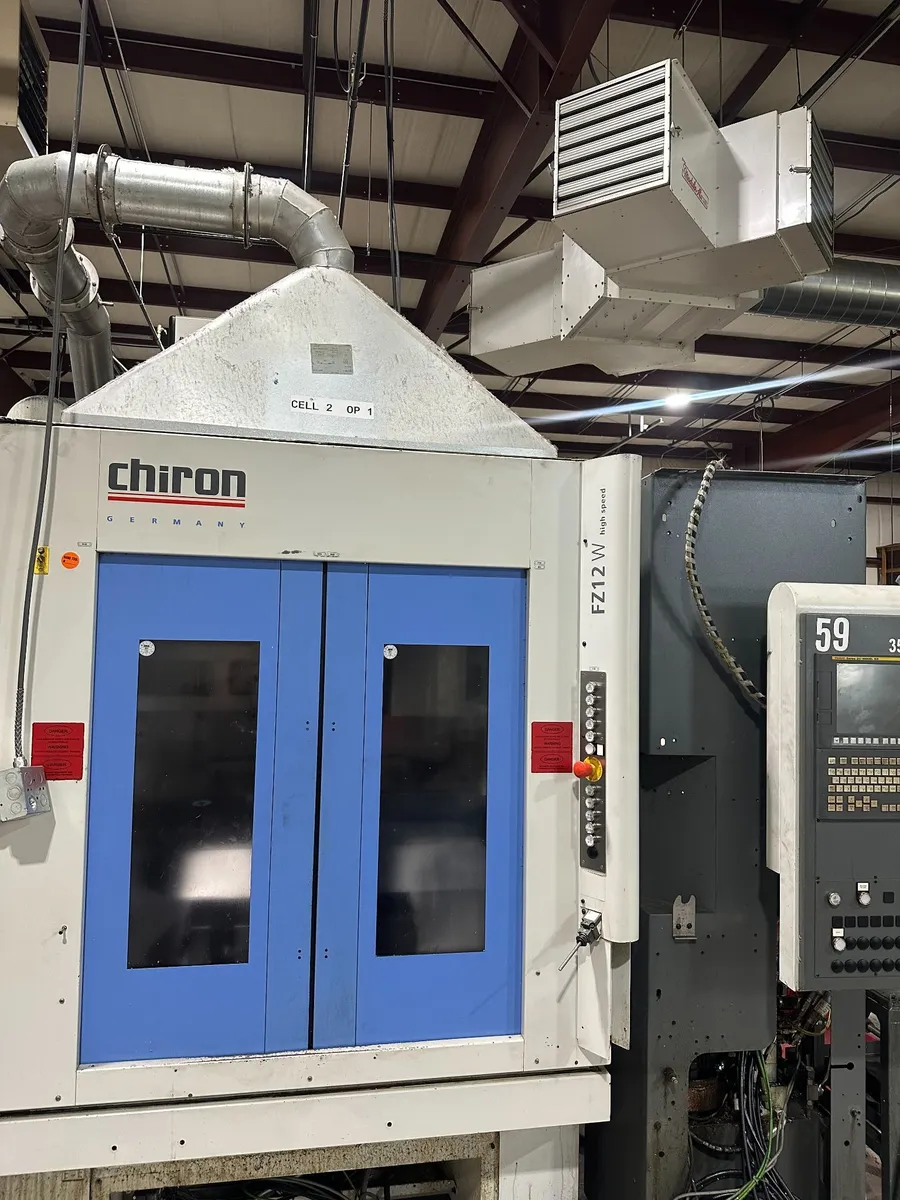

For sale: 2015 Chiron FZ-12W HS CNC Vertical Machining Center with pallet changer. Features include rapid feed up to 75 m/min, spindle speed up to 40,000 RPM, and Fanuc 31i-B5 CNC control. Comes with 48-tool capacity and pallet changer.
Travels:
X-Axis 21.65" (550 mm)
Y-Axis 15.74" (400 mm)
Z-Axis 15.74" (400 mm)
Axis Acceleration X-10, Y-15, Z-20 m/s2
Rapid Feed Max. 75 m/min
Spindle Speed: 40,000-RPM
Tool Taper: HSK63
Max Tool Diameter: 4.92" (125 mm)
Max Tool Length: 9.84" (250 mm)
Power Max. 40 kW
Automatic Tool Change
48 Tools Capacity
Fanuc 31i-B5 CNC Control
460V, 3 Ph, 60 Hz
High Pressure Coolant
Mist Collector
Pallet Changer
