5' x 10' THERMWOOD CS40 3-AXIS CNC ROUTER
Have one to sell?
$32,500.00 USD
1 available
5' x 10' THERMWOOD CS40 3-AXIS CNC Router, used, 2004 model. Features a 60" x 120" table, 10 HP HSD spindle, max 24,000 RPM, X 122" Y 61" Z 7.8" travels, automatic tool length measuring device, At the head 5 position tool changer plus bar type tool changer, Becker vacuum pump
Moving table style
Table size 60" x 120"
Travels
X 122"
Y 61"
Z 7.8"
Feed rates
X 2100 IPM
Y 1200 IPM
Z 1200 IPM
Spindle Type HSD MODEL 919 BT30
Router 10.5 HP
Router speed 24,000 RPM
91,000 Thermwood CNC SUPER CONTROLLER with windows software
5' x 10' TABLE

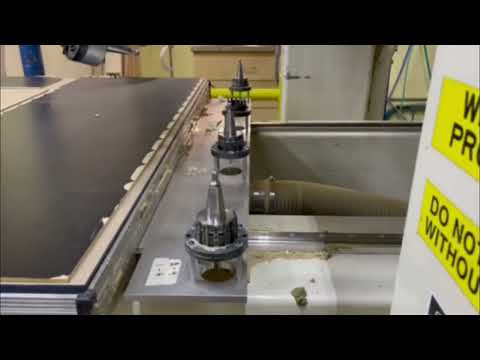

5 POSITION AT THE HEAD TOOL CHANGER
4 POSITION BAR TYPE TOOL CHANGER
AUTOMATIC TOOL LENGTH MEASURING DEVICE
MANUAL POP UP PINS
10 HP HSD SPINDLE MODEL 919
BECHER VACUUM PUMP MODEL VTLF 2.400
AUTOMATIC LUBRICATION
Recent Upgrades (2022–2025):
• 2025 – Hard drive, graphics card, RAM, power supply, motherboard, CNC controller components, Siemens modules, SIO board, Thermwood control boards, CD restore (Windows 2000 with SuperControl 9100)
• 2024 – PLC replaced
• 2023 – Vertical anti-whip table drive installed
• 2022 – Spindle replaced
