2hp Bridgeport Series I Vertical Milling Machine
Have one to sell?
1 available

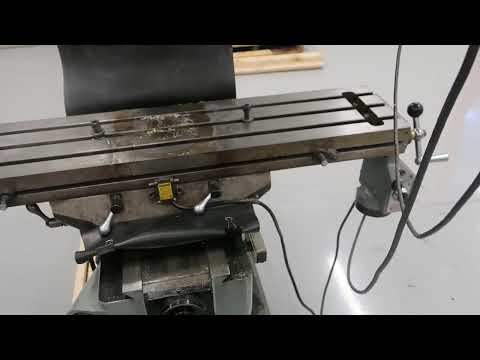

Used 2hp Bridgeport Series I Vertical Milling Machine. Features include 9" x 42" table, 30" longitudinal travel, Acurite DRO, X-axis power feed, and more. Variable spindle speeds 60-4,200 RPM. Dimensions 75"x63"x82"; weight 2,180 lbs. 3-phase 230V motor.
Table size (3 T-Slots) 9" x 42"
Table travels
Longitudinal 30"
Cross 12"
Quill travel 5"
Knee travel 16"
Spindle speeds (variable) 60 to 4,200 RPM
Spindle taper R8
Spindle feeds .0015, .003, .006
Overall dimensions 75"L-R x 63"F-B x 82"H
Approx. weight 2,180 LBS
MOTOR SPECIFICATIONS
2 HP
230 Volt
3 Phase
2-Axis Acurite DRO
X-axis power feed
Kurt Power Lock Power Draw Bar
Kurt Vise
Auto Lube
