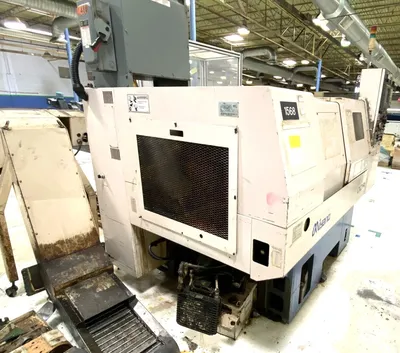

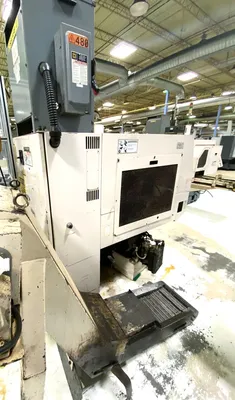

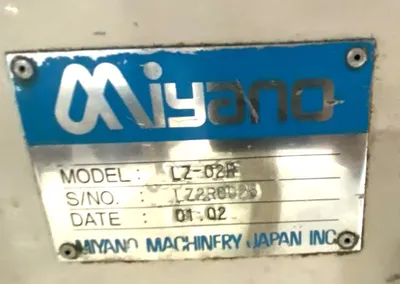

MIYANO MODEL LZ-01R 3-AXIS HIGH PRECISION TURNING CENTER
Have one to sell?
1 available
MIYANO LZ-01R CNC Lathe. Features 5.5kW spindle motor, max. turning diameter 2.76", 6000 RPM spindle speed, and 8 tool stations with live tooling. Comes with Fanuc 21i-T CNC, automatic load/unload system, chip conveyor, and coolant system.
Max. turning diameter 2.76"
Max. turning length 3.15"

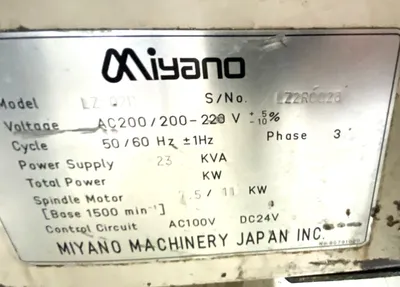

Spindle motor (cont./30 min. rating) VAC 5.5kW : 7.5HP /
7.5kW : 10 HP
Spindle speed 60 - 6000 RPM
Slide traverse:
X-axis 9.45"
Z-axis 7.48"
No. of tool stations 8
No. Revolving Tool Stations 4
Spindle speed 100-4,000 RPM
Drilling Capacity Max. 13mm
Taping Max. M8 x 1.25
Indexing time 0.3 sec/pos.
Max. part size 2.76"D x 3.15"
Max. part weight 1.54 Lbs x 2
Part service time Min. 4 sec. (with collet
chuck)
Machine size (W x L x H) 55" x 65" x 65"
Weight (including NC unit) 8370 lbs.
Fanuc 21i-T CNC control

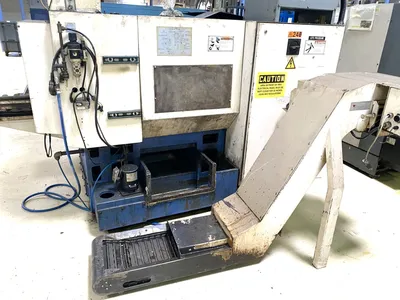

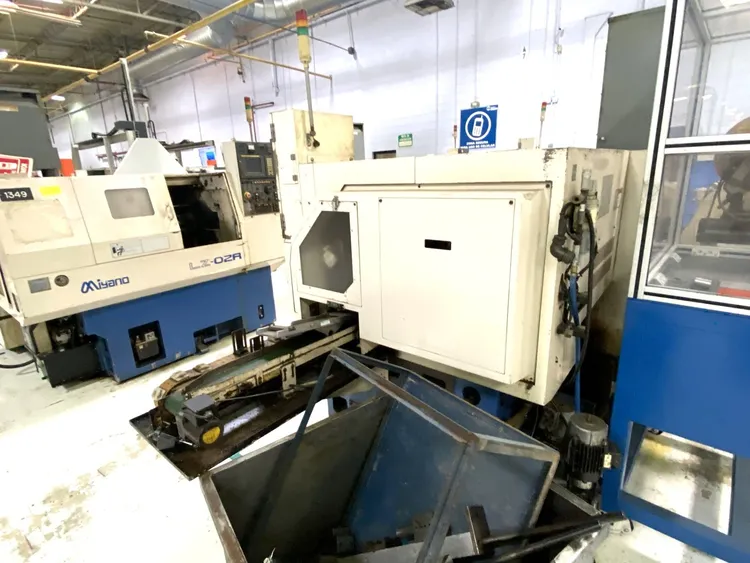

Automatic load/unload system with Parts conveyor
Chip conveyor, Splash Guards, Coolant System

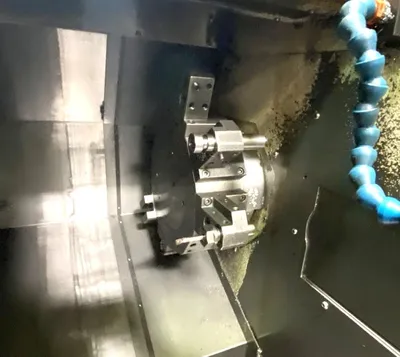

8 position with live tooling and C-axis
