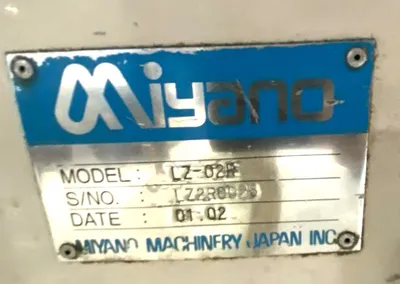

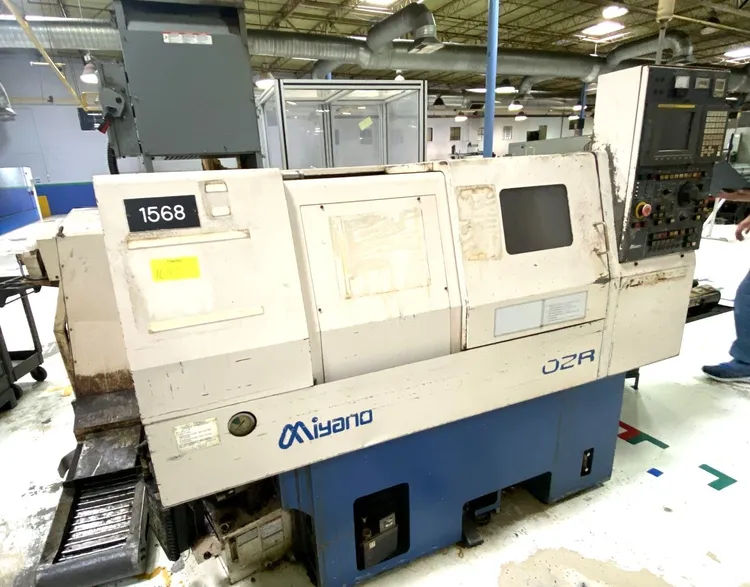

MIYANO LZ-02R CNC 3-AXIS CHUCKER WITH ROBOTIC LOADING AND LIVE TOOLING
Have one to sell?
1 available
MIYANO LZ-02R CNC 3-AXIS CHUCKER WITH ROBOTIC LOADING AND LIVE TOOLING
Max. Cutting Diameter 4.724"
Max. Machining Length w/ Loader 3.14"
Spindle Bore 2.4"
Number of Tool Positions 10 (5) Live tool positions
X, Z, and C Axis
Load/Unload Cycle Time 5.5 Seconds
Spindle Drive Motor 15 HP

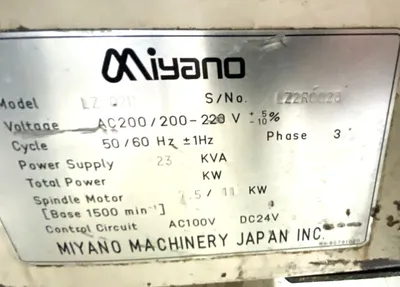

Electrical Requirements 208/220/230 Volts AC, 3Ph, 28KVA Full Load

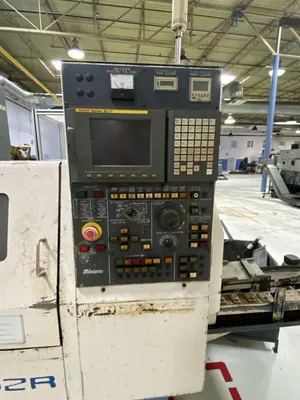

-- Fanuc 21i-T Controller
- COLLET Chuck

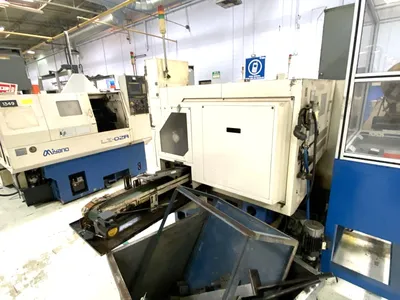

- Miyano Integrated Loader/Unloader with Auto Door
- Spindle speed : 50 - 5000 [Rpm]
- Spindle power : 11 [kW]
- Spindle strokes X x Z : 300 x 240 [mm]
- Turret 10 positions
- Number of rotary positions : 5
- Tool holders rotation speed : 100 - 4000 [Rpm]
- misc. turret tool holders
- lubricating tank with pump
- loading / unloading robot
- max. part weight 1.5 [kg] x2
- max. machining part dimensions Ø 100 x 80 [mm]
