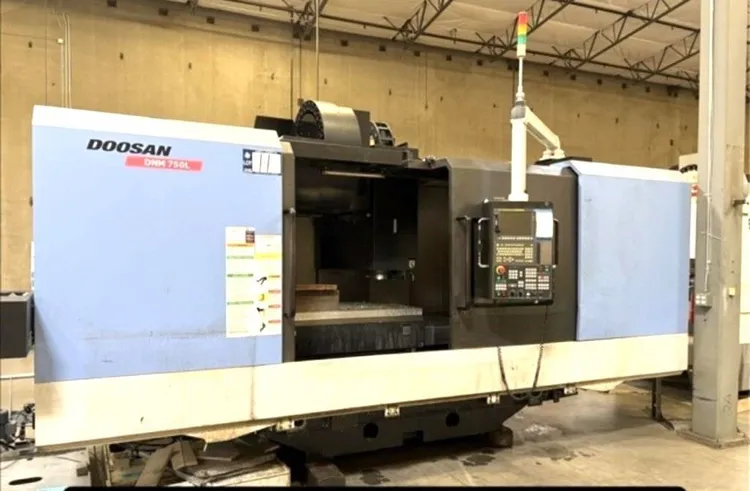

85" x 30" DOOSAN DNM-750L CNC VERTICAL MACHINING CENTER, NEW 2015

Travel Distance X-axis
2160 mm (85 in)
Travel Distance Y-axis
762 mm (30 in)
Travel Distance Z-axis
650 mm (25.6 in)
Rapid Traverse X-axis
24 m/min (945 in/min)
Rapid Traverse Y-axis
24 m/min (945 in/min)
Rapid Traverse Z-axis
24 m/min (945 in/min)

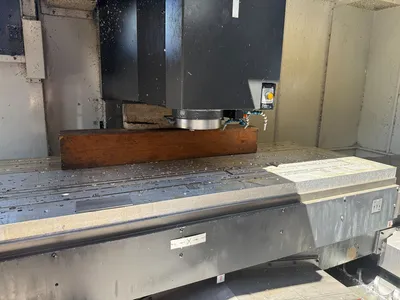

Table
Table Size
2160 x 760 mm (85 x 29.9 in)
Max Load
1800 kg (3968 lbs)
Spindle to Table Distance
150 - 800 mm (5.9 - 31.5 in)
Spindle
Torque
165.5 Nm (122 ft-lbs)
Speed
12000 rpm
Power
15.6 kW (21 Hp)
Tooling
Shank
BIG PLUS CAT40
Changer Capacity
30
Max Diameter
80/125 mm (3.2/4.9 in)
Max Length
300 mm (11.8 in)
Machine Size & Weight
Length
5050 mm (198.8 in.)
Height
3251 mm (128 in.)
Width
2986 mm (117.6 in.) + 1323 mm (52.1 in.)
Weight
15000 kg (33068 lbs)
