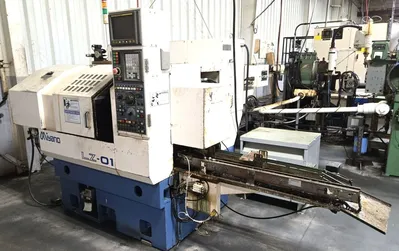

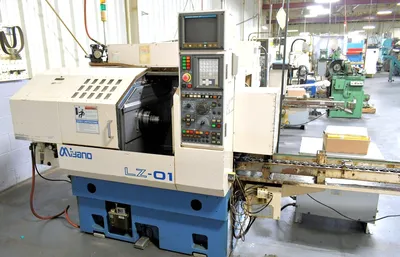

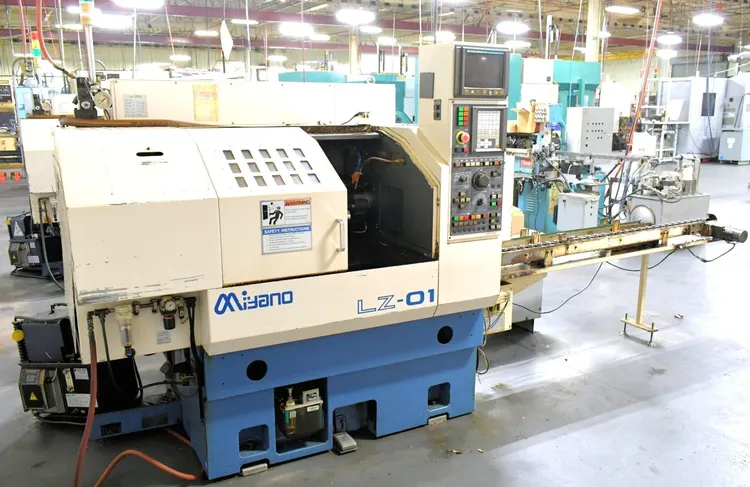

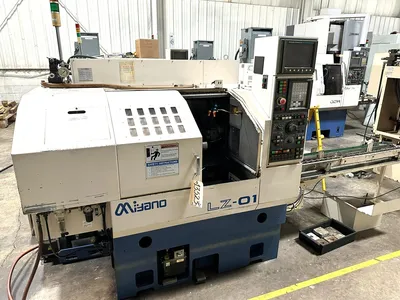

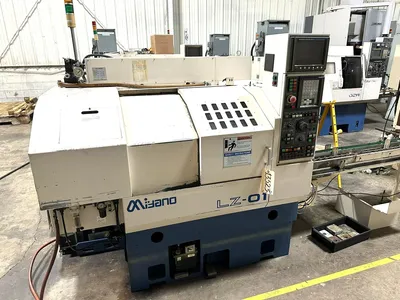

MIYANO MODEL LZ-01 2-AXIS TURNING CENTER WITH AUTO LOAD/UNLOAD SYSTEM
Have one to sell?
1 available
MIYANO LZ-01 2-Axis Turning Center, 1998 model, ideal for precision work. Features Fanuc 21T CNC control, auto load/unload, 8-tool turret, max diameter 2.76", length 3.15". Includes splash guards, chip conveyor, coolant system. Compact design, 6500 lbs.
Max. turning diameter 2.76"
Max. turning length 3.15"
Collet chuck 2.76" max. diameter
Spindle motor (cont./30 min. rating) VAC 5.5kW : 7.5HP /
7.5kW : 10 HP
Spindle speed 60 - 6000 RPM
Slide traverse:
X-axis 9.45"
Z-axis 7.48"
No. of tool stations 8
Indexing time 0.3 sec/pos.
Max. part size 2.76"D x 3.15"L
Max. part weight 1.54 Lbs x 2
Part service time Min. 4 sec. (with collet
chuck)
Machine size (W x L x H) 55" x 65" x 65"
Weight (including NC unit) 6500 lbs.

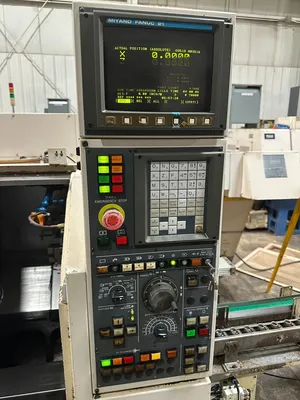

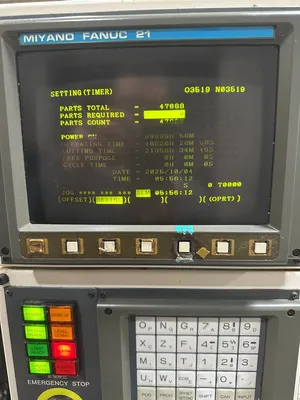

Fanuc 21T CNC control

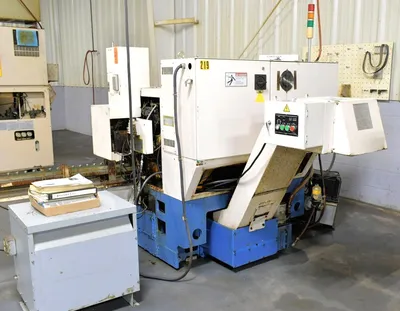

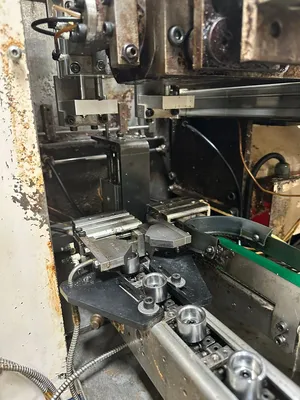

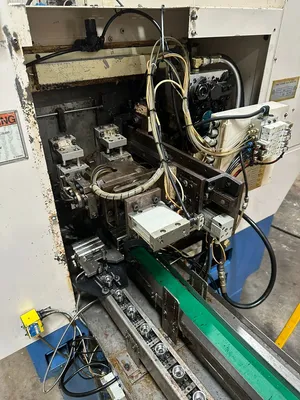

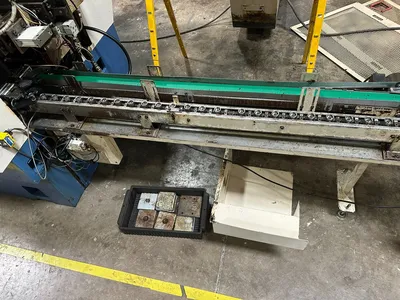

Automatic load/unload system, Rear top loading

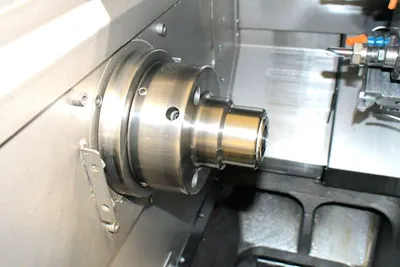

collet chuck

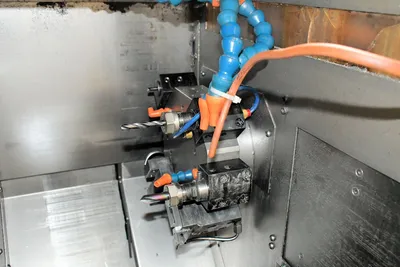

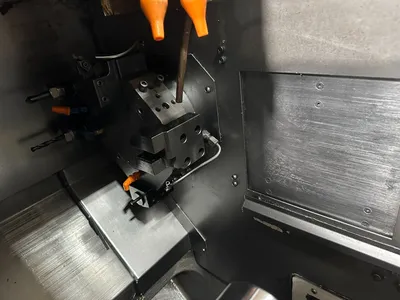

8 Position Turret

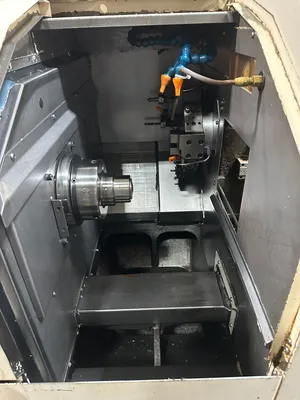

Splash guards
Chip Conveyor & Coolant System
