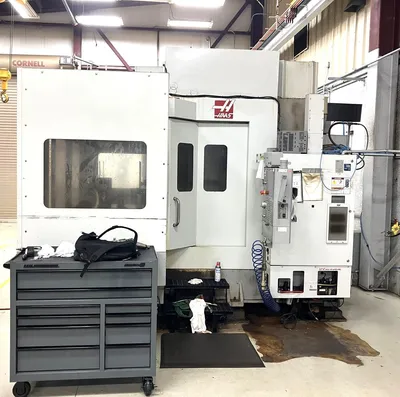

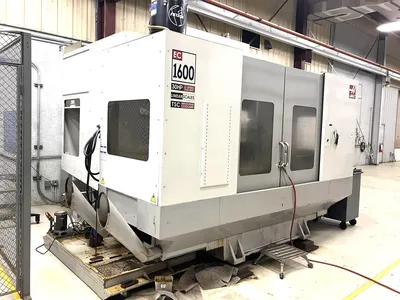

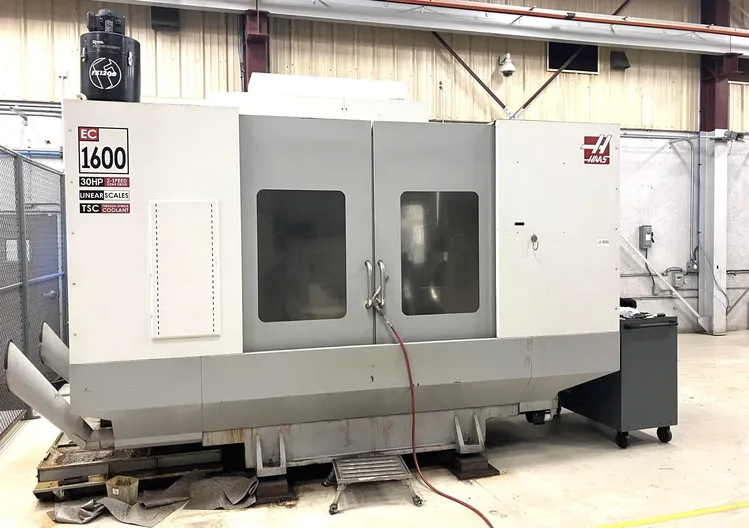

HAAS EC-1600 CNC 4-AXIS HORIZONTAL MACHINING CENTER

Travels:
X-Axis 64"
Y-Axis 50"
Z-Axis 32"
Table:
Length 64"
Width 36"
T-Slot width 5/8"
T-Slot center distance 4.92"
Max. weight on table (evenly distributed) 10,000 lb
Spindle:
Max. Rating 30 HP
Max. Speed 6000 RPM
Max. Torque 450 ft-lb @5,000 RPM
Drive system 2-speed geared head
Taper BT50
4th Axis (OPT):
Max. Rating 5.0 HP
Table 64"x32"
Platter diameter 30"
Max. weight on platter 10,000 lb
Rotational torque (continuous) 2000 ft-lb
Backlash 30 arc-sec
Gear ratio 500:1
Brake torque 4000 ft-lb
Min resolution 5 deg
Feedrates:
Rapids on X,Y & Z 540 in/min
Max. cutting 500 in/min
Axis Motors:
Max. Thrust X & Y 5600 lb
Max. Thrust Z 7500 lb
Tool Changer:
Type SMTC
Capacity 30+1
Max Tool Diameter (adjacent empty) 10"
Max Tool Diameter (full) 4"
Max Tool Diameter (from gage line) 20"
Max Tool Weight 30 lb
Tool-to-Tool (avg) 10.3 sec
Chip-to-Chip (avg) 12.6 sec
General:
Air required 9 scfm, 100 psi
Coolant capacity 95 gal
