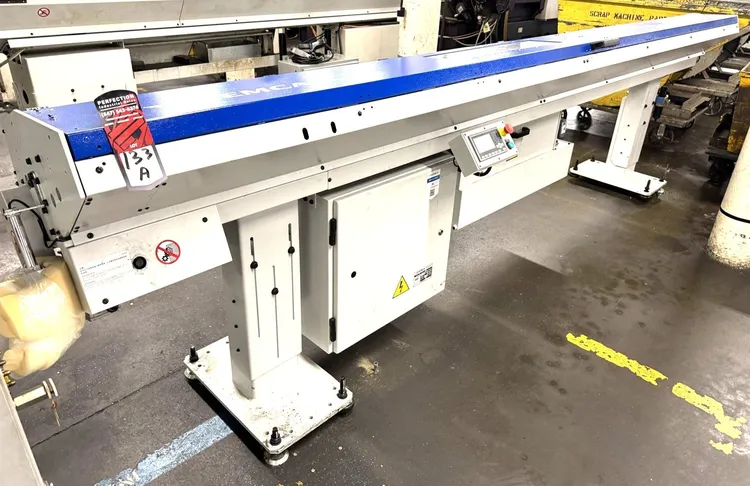

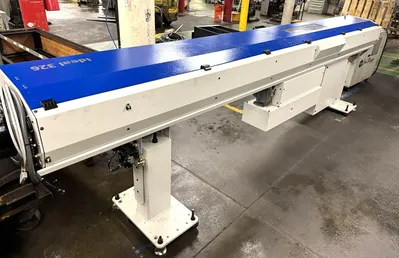

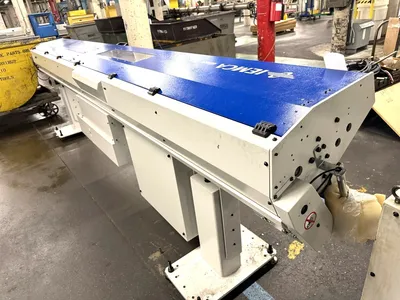

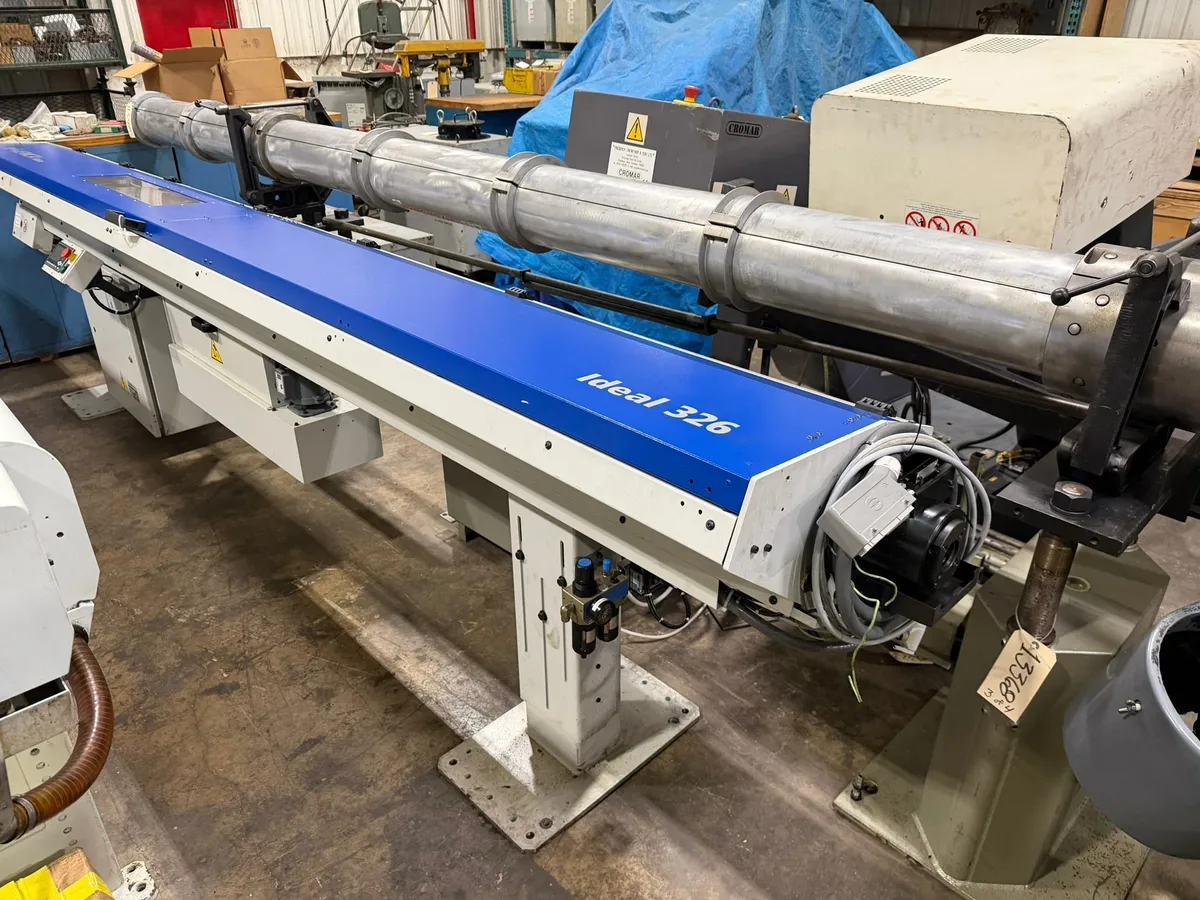

IEMCA IDEAL 326 SLIDING HEADSTOCK MAGAZINE BAR FEEDER, NEW 2023
Have one to sell?
1 available
IEMCA IDEAL 326 SLIDING HEADSTOCK MAGAZINE BAR FEEDER, NEW 2023
1/8" - 1.0" 12'2" MAX BAR LENGTH
The IDEAL 326 is a automatic bar feeder for lathes with sliding headstock. Thanks to the high level of technology, there is a guarantee of precision when the bar is being selected, elevated speed of rotation, and absence of vibrations. With more than 5,000 units installed, it is simply Super!
• ROUND BARS 3 - 26 mm (1/8'' - 1'')
•
BAR LENGTH 1,000 - 3,700 mm (3'3'' - 12'2'')
•
MP MAGAZINE AVAILABLE Yes, Single Rack 280 mm (11.02'')
•
•
HEXAGONAL BARS 3 - 22 mm (1/8'' - 7/8'')
•
•
•
REMNANT LENGTH 80 - 350 mm (3.15'' - 13.78'')
•
SQUARE BARS3 - 18 mm (1/8'' - 11/16'')
•
MOBILE HEADSTOCKYes
•
•
BAR CHANGEOVER TIME33 sec. (for bar lengths of 3,200 mm)
•
BAR WEIGHT Max 18 kg (40 lbs)
•
REVERSIBLE MAGAZINES Yes
•
COMPRESSED AIR 5 - 7 bar (73 - 102 psi)
•
BAR FEEDER WEIGHT 690 kg (1,530 lbs)
•
FEED RATE 420 mm/sec. (990 in/min.)
•
INSTALLED POWER 650 W
•
NUMBER OF SPINDLES 1
•
RETURN SPEED 1,200 mm/sec. (2,830 in/min.)
•
OPERATING VOLTAGE 220/380/440 Volt
General Specifications
Bar Size Capacity: Round: 3-26mm (1/8" - 1")
Square: 3-22mm (1/8" - 7/8"
Hex: 3-18mm (1/8" - 11/16")
Bar Length Capacity: 1,000 - 3,700mm (3'3" - 12'2")
Remnant Length: 80-350mm (3.15" - 13.78")
Bar Weight: 18kg (80 lbs)
Bar Changeover Time: 33 Seconds (Lengths Over 3,200mm)
Feedrate: 420mm/sec (990 IPM)
Return Speed: 1,200mm/sec (2,830 IPM)
Barfeed Weight: 1,530 lbs
Compressed Air: 5-7 Bar (73 - 102 PSI)
Installed Power: 650w
MP Magazine Available: Single Rack 280mm (11.02")
