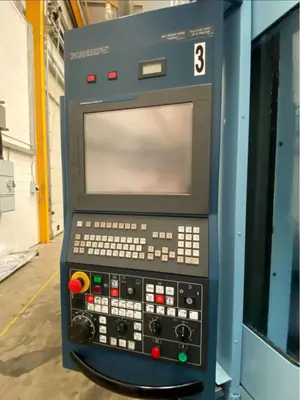

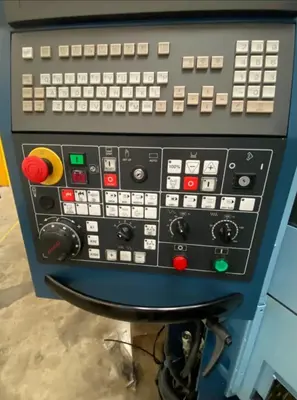

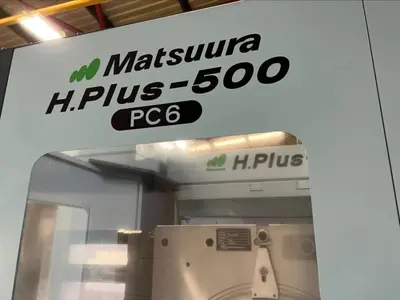

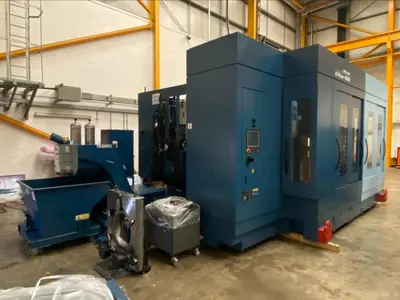

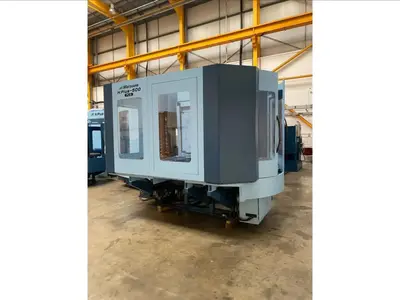

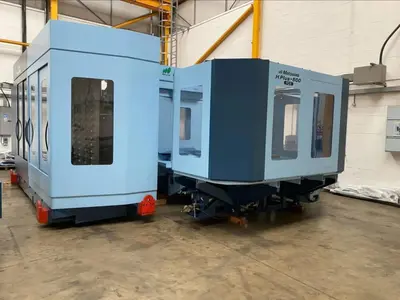

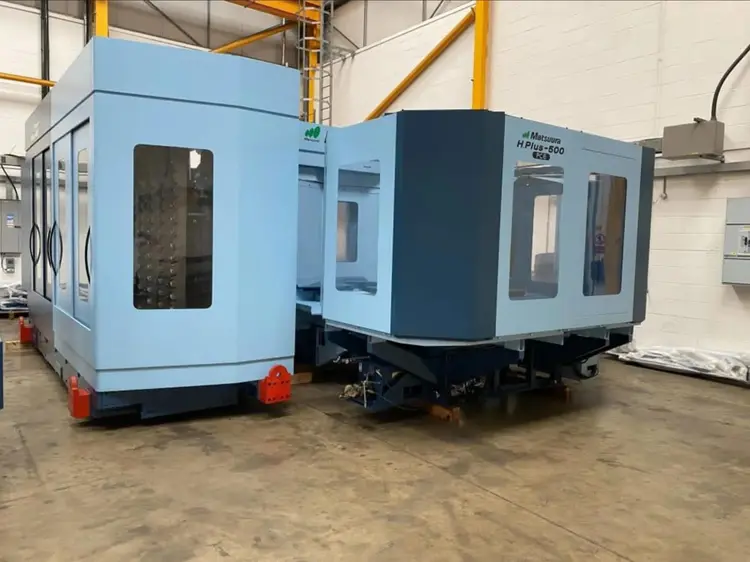

Matsuura H-Plus 500 6 Pallet CNC 4 Axis Horizontal Machining Centre with Matsuura G-Tech 31i Control (2019)
Have one to sell?
1 available

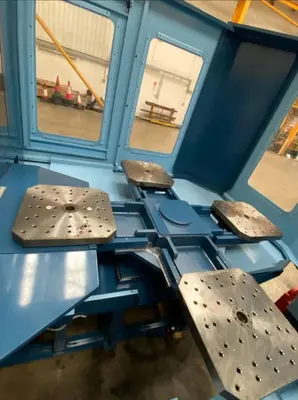

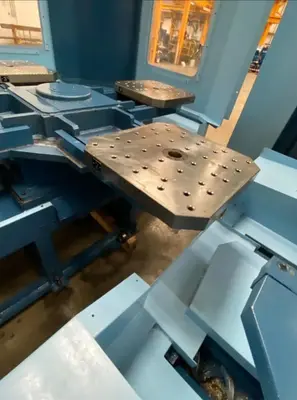

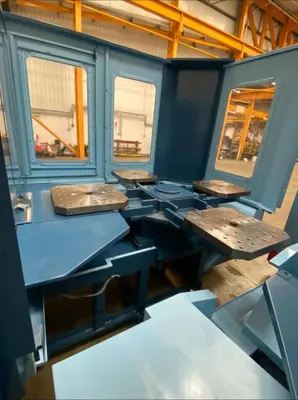

Matsuura H-Plus 500 6 Pallet CNC 4 Axis Horizontal Machining Centre with Matsuura G-Tech 31i Control (2019) 20" x 20" pallets, 120 position atc, 12,000 rpm
Matsuura H-Plus 500 6 Pallet CNC 4 Axis Horizontal Machining Centre with Matsuura G-Tech 31i Control (2019)

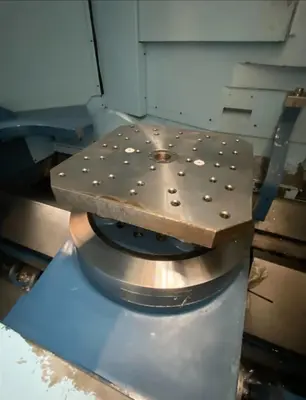

Table Dimension 500 x 500mm
Maximum Table Load 750kg
Maximum Component Dimension Ø850mm x H1,050mm
Axis Travel 'X'=800mm x 'Y'=800mm, 'Z'=800mm, 'B'=0-360°
Rapid Traverse 'XYZ'=60,000mm/min, 'B'= 100rpm
Maxia Speed Range 45-12,000rpm (30kW Motor)
Spindle Taper BT50

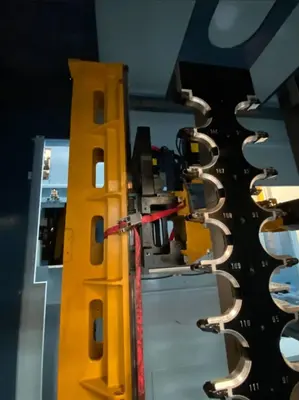

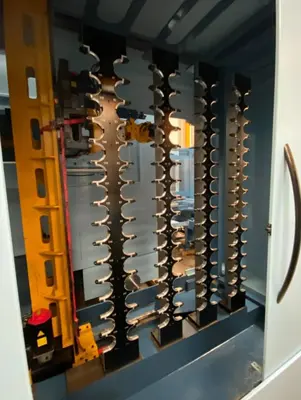

120 Position ATC
Maximum Tool Ø110mm/Ø320mm (Non Adjacent Tools)
Maximum Tool Length 500mm
Maximum Tool Weight 20kg
