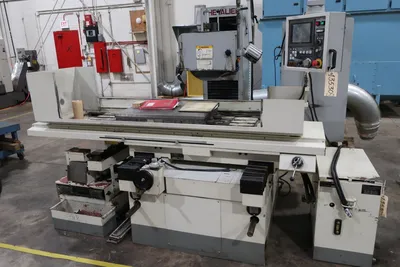

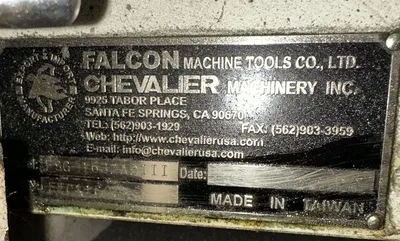

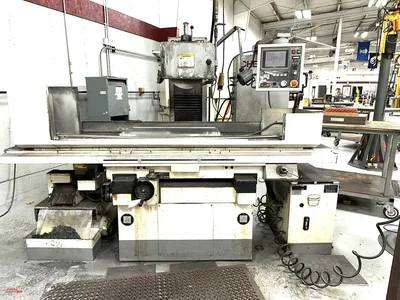

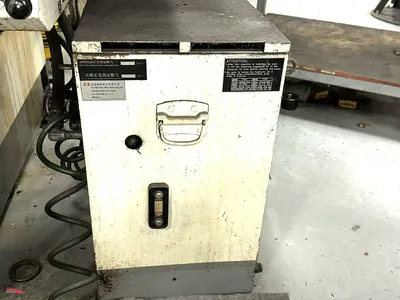

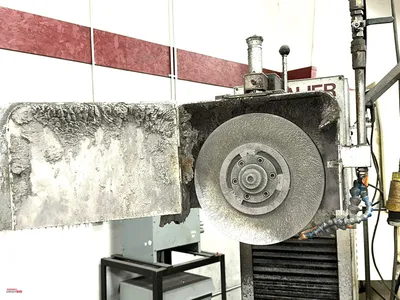

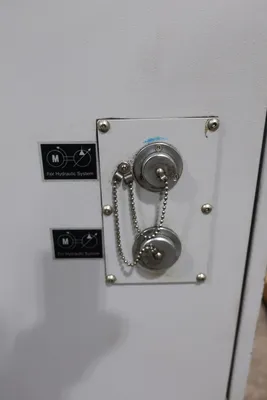

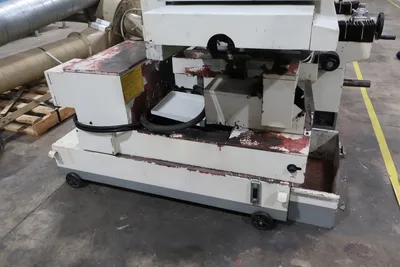

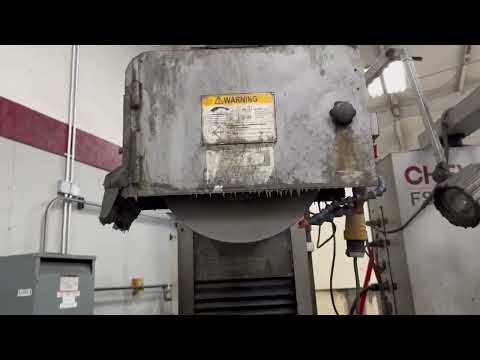

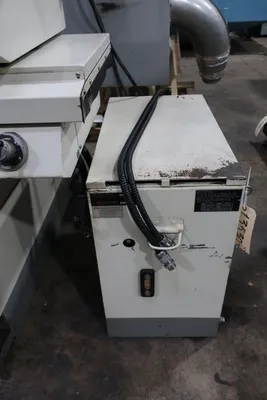

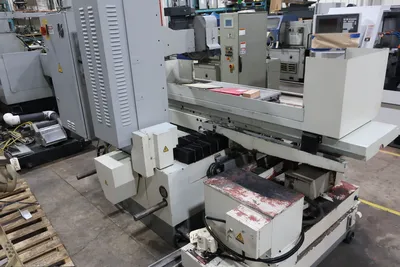

16" X 32" CHEVALIER FSG-1632ADIII HORIZONTAL HYDRAULIC SURFACE GRINDER, NEW 2012

Chevalier Automatic Surface Grinder, 16" x 32"
FSG-1632ADIII
High-Precision 3-Axes Automatic Surface Grinder

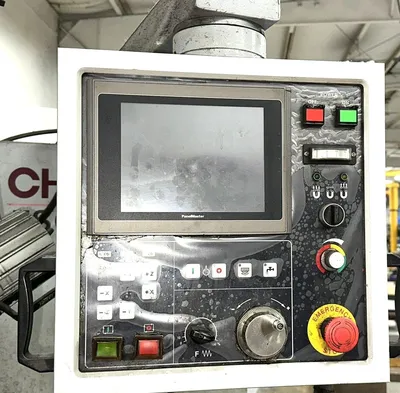

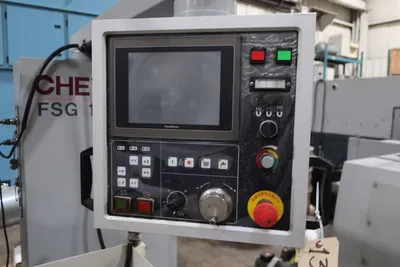

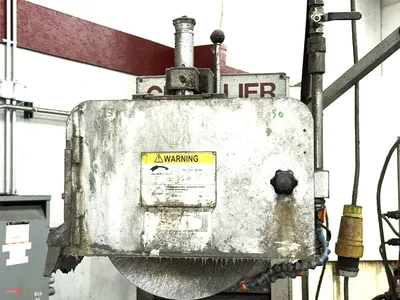

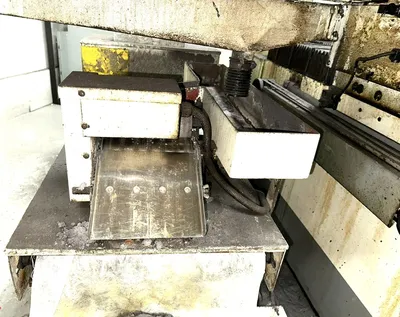

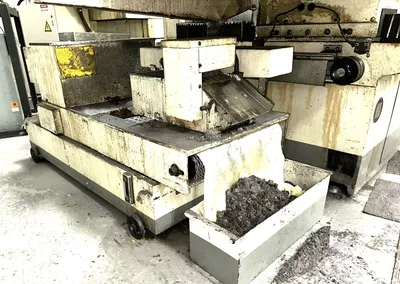

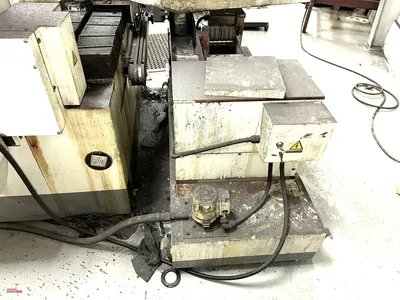

The FSG-ADIII series features a new user-friendly touch-screen control with standard surface grinding programs and a plunge grinding cycle. There is also an optional crisscross or zigzag and a CBN dressing cycle. So simple and user-friendly, all skill levels can operate this series of ADIII controllers.

The fully automatic grinding mode consists of rough- and fine-grinding cycles, switching from rough-grinding down-feed increments to fine-grinding down-feed increments at preset points during the cycle. This crossfeed also switches from a rough to fine cross-feed increment, which results in a finer surface finish and finer accuracy.

Features:

No more cycle stops or prepping the wheel
Faster cycle times
Chevalier control: touch screen
3-Axes Fully Automatic
Table size: up to 16"W x 40"L
Auto. dressing and compensation optional
Elevation is driven by servo motor
3-Axes needle roller way
Max. grinding sizes: up to 16" x 40"
Spindle power: up to 10 HP, greater spindle HP available

Specifications:

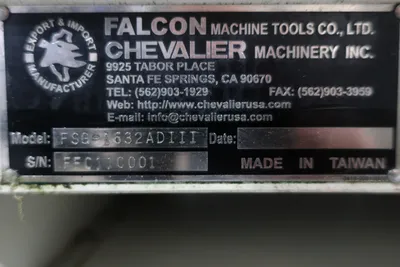

Item Number FSG-1632ADIII

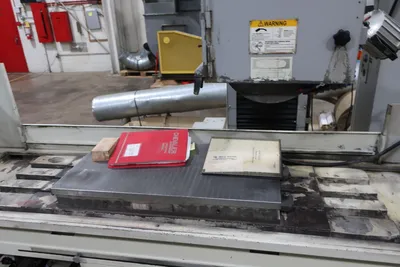

Table Size 15 3/4" x 31 1/2"
Max Grinding Length Longitudinal 32"
Max Grinding Width Crosswise 16"
Max Distance from Table Surface to Spindle Centerline 24"
Longitudinal Movement of Table: Longitudinal Travel, Hydraulic 15 3/4" x 31 1/2"
Maximum Travel, Manual 35 3/8"
Table Speed, infinitely variable 5~25 m/min.
Rapid travel, approx. 3.5m/min.
Automatic Transverse Increment 2.9m/min.
Maximum Automatic Travel 16"
Maximum Manual Travel 18"

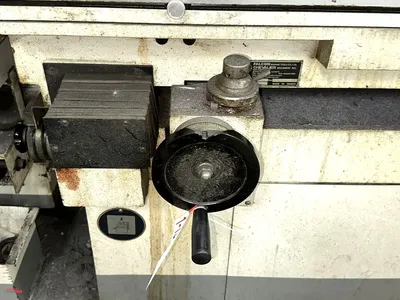

Handwheel per revolution 0.25"
Handwheel per graduation 0.0025"
Microfeed per revolution 0.005"
Microfeed per graduation 0.00005"
Wheelhead Vertical Infeed: Automatic Infeed 0.000050"-0.002"
Rapid Travel, approx 25ipm
Grinding Spindle Drive Speed 60Hz1750rpm; 50Hz1450rpm
Power rating 5HP/4P
