MIYANO OCEAN GN-3200 GANG TYPE CNC CHUCKER WITH ROBOTIC LOADING

Miyano
GN-3200
Efficient and space-saving, hand in hand with traditional precision.
Designed for high-througput machining of small diameter workpieces, this machine has a wing type fixed spindle for low thermal influence and maximum thermal stability installed on a thermally symmetrical machine base. It inherits the “design concept for high precision” that is a tradition at Ocean series.
The slideways grant excellent damping characteristics and are finally precision scraped by experienced experts. Based on these constructive properties, the user receives a complete package designed for excellent machining accuracy in terms of dimensional stability and concentricity. The workpieces can of course be handled manually, but the machine also flexibly accommodates automation including high-speed gantry loaders and robots. This makes high-precision machining even more efficient.
Special features:
• High-precision turning machine.
• Loading/unloading just takes 3.5 seconds.
• High/improved efficiency through space saving design.
• High-precision positioning and exceptional accuracy.
• Intelligent rigid construction with zero thermal deformation.
• Stable construction for maximum precision.

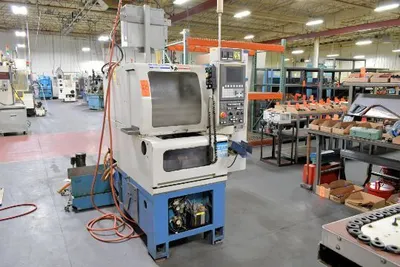

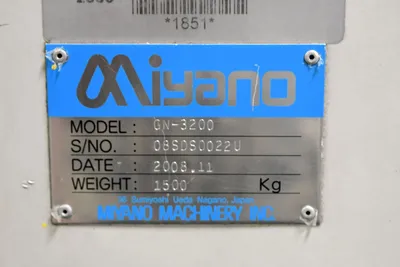

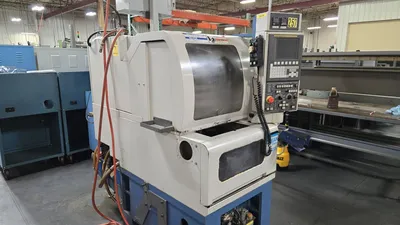

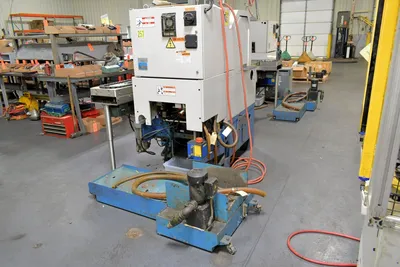

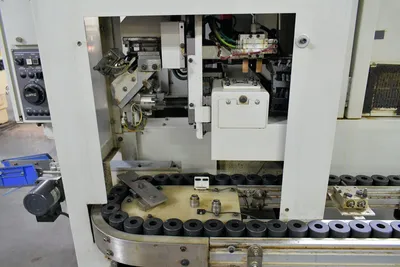

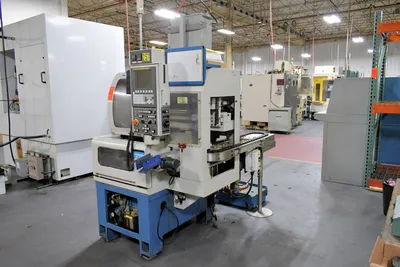

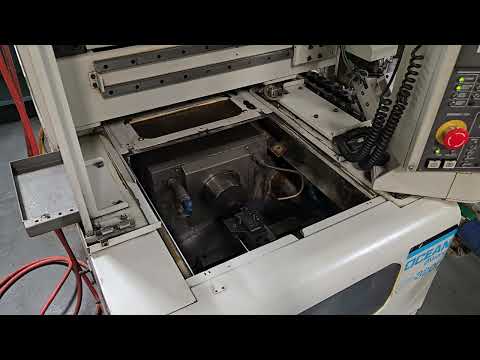

Miyano Ocean GN-3200 2-Axis Single Spindle CNC Lathe, S/N: 08SDS0022U (2008); with Gantry Loader, Fanuc Series Oi-TC Controls
Machine capacity
Max. turning dia. (mm) 45
Max. turning length (mm) 50

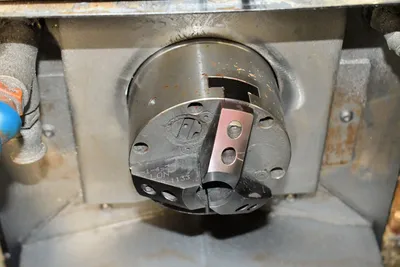

Chuck size SP1 (mm) 152,4

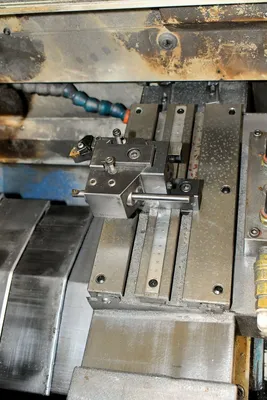

Turret no. 1 / HD1
Programmable axis X/Z
No. of tooling stations 5 + X
Main spindle SP1
Spindle power (kW) 2.2/1.5 kW
Spindle Speed (Rpm) 8000
Machine Data

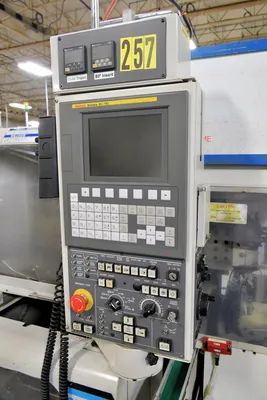

CNC Control Unit FANUC 0i-TD
Floor space (mm) 1.460 x 700
Weight (Kg) 1500
