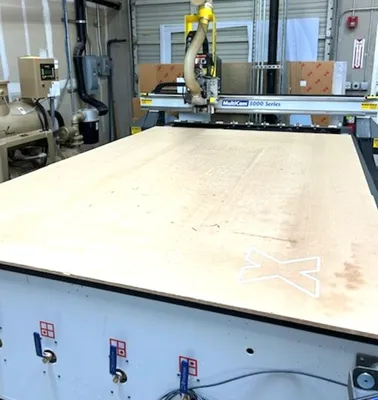

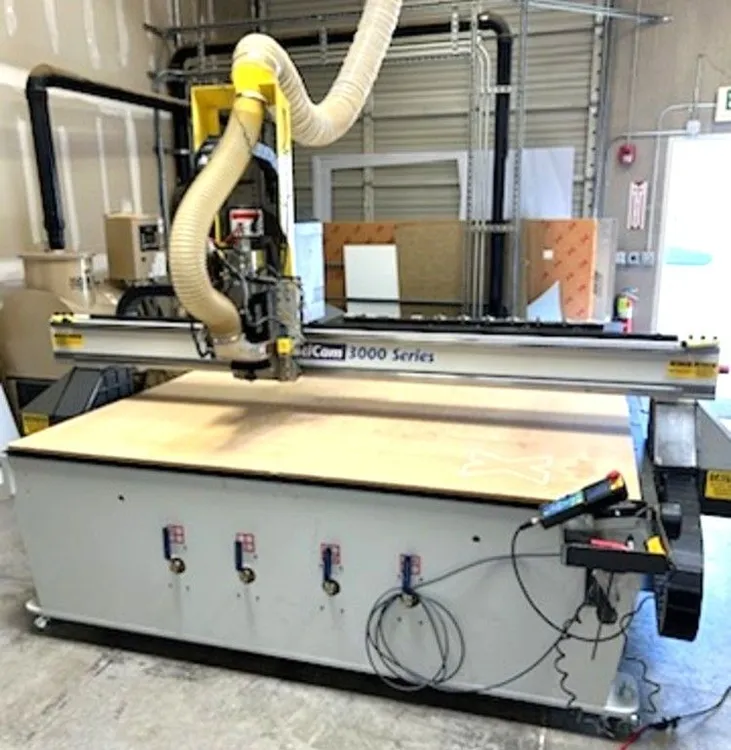

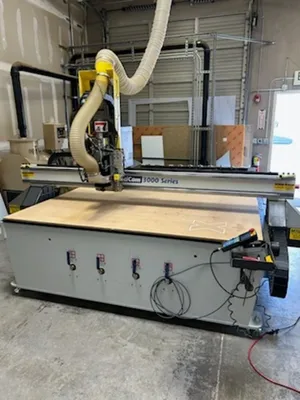

80" x 120" MULTICAM 3000 3-AXIS CNC ROUTER, NEW 2014

Used Multicam 3000 Series (2014) CNC Router for Sale. This pre-owned Multicam cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Multicam CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
SPECIFICATIONS
Table Width 80"
Table Length 120"
Number of Axis 3
3000 Series Specifications (Inches)
• Z-Axis Clearance: 6"; Optional: 10"
• Z-Axis Travel: 12"
• Repeatability: +/- 0.001
• Positional Displacement Accuracy: +/- 0.005"
over 10'
• Maximum Cutting Speed: 1400 IPM*
• Maximum Rapid Traverse: 2500 IPM*
• Drive System X and Y Axes: Rack and Pinion
• Drive System Z Axis: Ball Screw
• Standard Work Surface: 1" Phenolic
Table Hold Down Vacuum (4-zones)
Spindle Mfg UMBRA ER25 (Water Cooled)
Spindle Speed 32,000 RPM
Spindle Motor 8.5 HP
Tool Changer (11) Position Linear Tool Rack

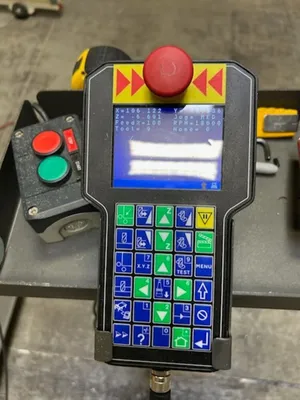

Control MulticamEZ Controller
Power Requirement 208v - 3 Ph
FEATURES

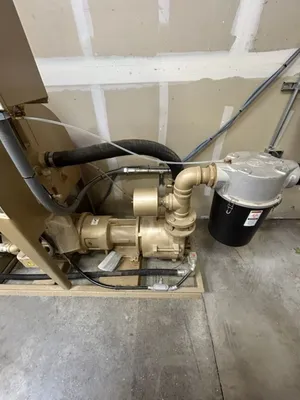

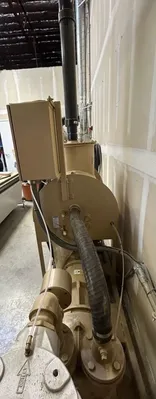

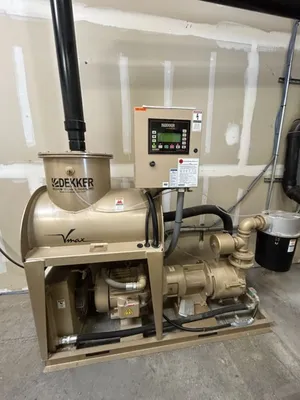

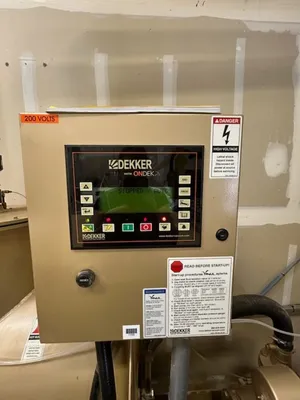

Dekker Vacuum Pump - 20 HP Heat Exchanger for Liquid Cooled Spindles
Brushless AC Servo System MultiVision Pro Digital Registration System
