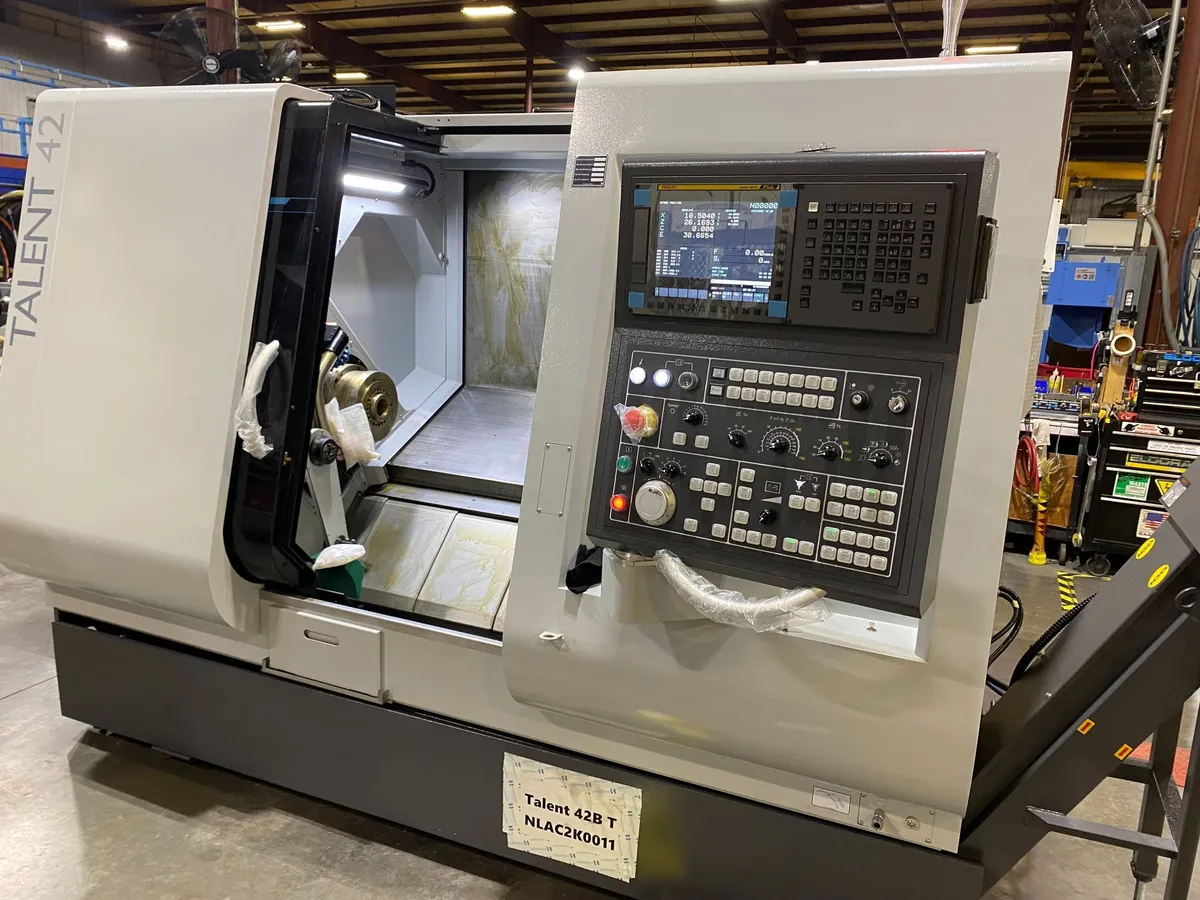

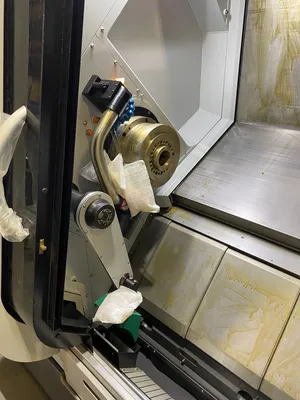

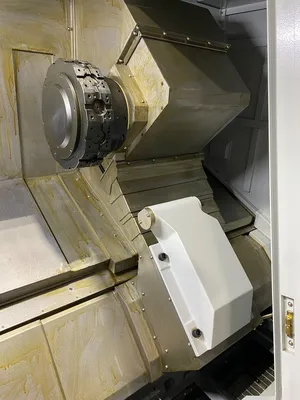

Brand New Hardinge Talent T42 2-Axis CNC Lathe, unused

Talent 42 Exceptional combination of features for accuracy, flexibility and durability

• A2-5 16C collet-ready spindle
• Central grease lubrication (manual)
• Foot switch main spindle chuck/collet – open/close
• Foot switch sub-spindle chuck/collet – open/close
• Three colour stack light
• Headwall coolant (main & sub-spindle)
• Bar feed interface

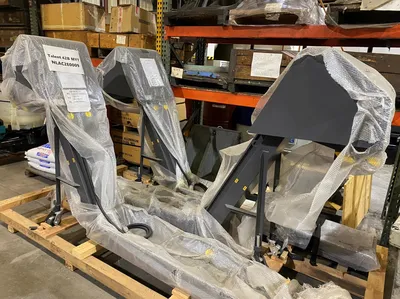

• Chip conveyor interface
Request a Quote

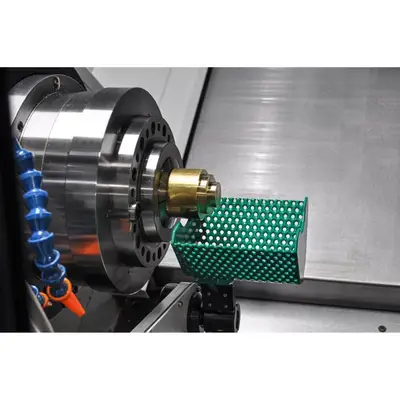

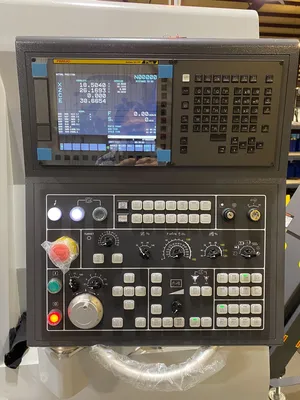

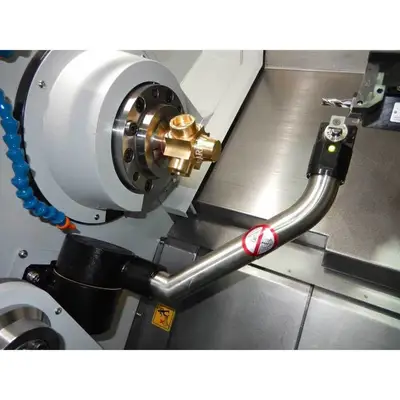

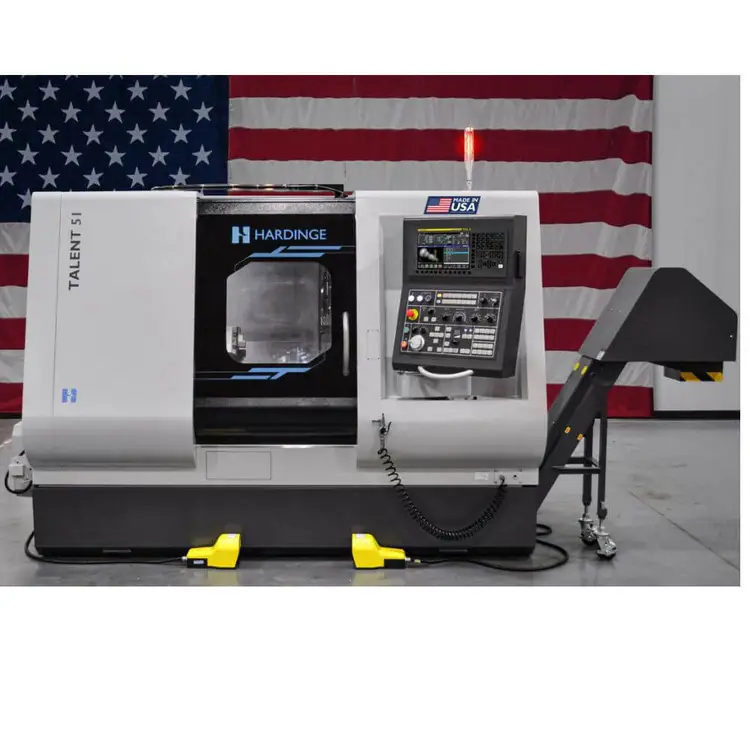

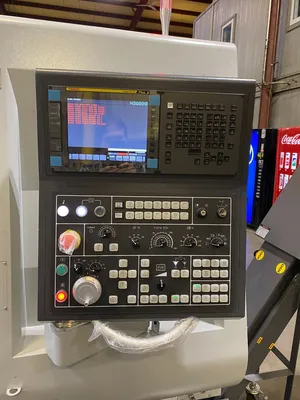

The Hardinge TALENT® Series machines offer an exceptional combination of features for accuracy, flexibility and durability in a compact design.The unique collet-ready main and sub-spindle design will increase part accuracy and improve surface finish. The TALENT® Series offers two separate base structures, short bed and standard bed lengths, which feature a robust one-piece cast iron base, heavy duty roller linear guideways and ballscrews, with many standard value-added features – thru-tool and headwall coolant, foot switches, chip conveyor interface, and external air hose and gun. The machine features the FANUC OiTF control which include many value added features.
Technical Data
Short Bed
Spindle Nose
A2-5 / 16C
Power Rating
11 kW
Spindle Speed (max)
6000 rpm
Through Hole Diameter
42mm
Max. Turning Diameter
290mm (12-station) / 240mm (16-station)
Max. Turning Length
334.5mm (without chuck) / 218.9mm (with chuck)
Approx. Machine Weight
4900 kg
Machine Dimensions (L x D x H)
2567mm x 1814mm x 1932mm
Standard
