Swing front apron/cross slide 30"/14.5"
Distance between centers 39"
Max. Cutting diameter/length 16"/34"
X Axis travels 11.3"
Z Axis travels 34"
C Axis contouring 0.001 deg.
B Axis travel (sub spindle) 33.5"
Rapid traverse rate X & Z Axes 710 IPM
Rapid traverse rate B Axis 710 IPM
Spindle speed 50-3400 RPM
Spindle motor 30 HP
Spindle nose A2-6
Spindle bore/bar capacity 3.5"/3.0"
Sub Spindle speeds 0-4000 RPM
Sub Spindle motor 8 HP
Live tooling speed 3000 RPM

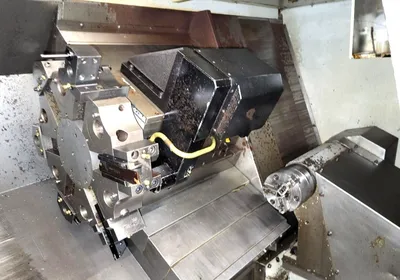

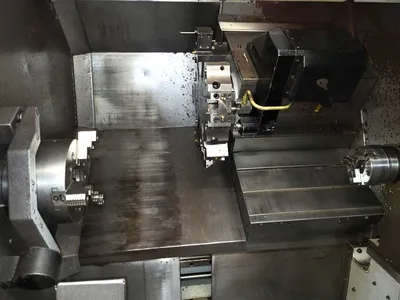

Turret positions 12
Approx. Dimensions 149"x77"x75"
Machien weight (approx.) 17,000 lbs.

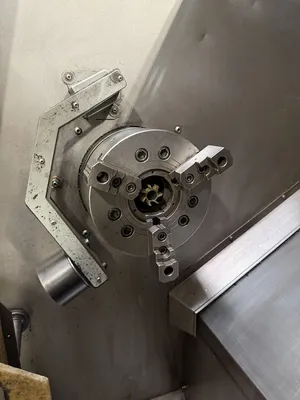

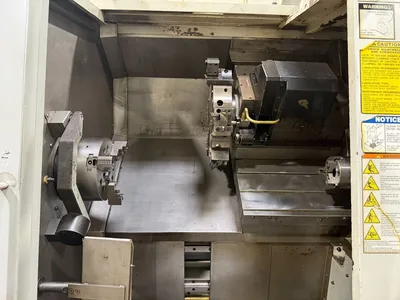

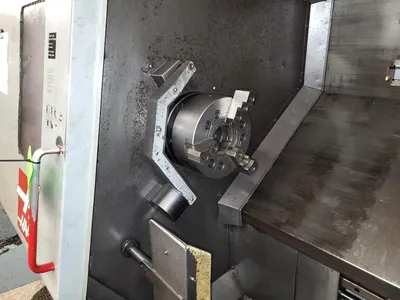

10" 3-Jaw Chuck on main spindle

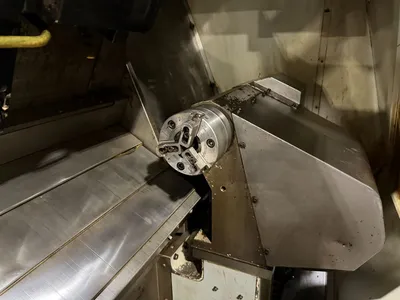

6" 3-Jaw Chuck on sub spindle
High Torque Live Tooling option
C-Axis

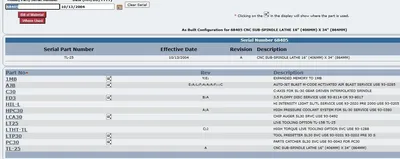

VOPB LTP;CC;SO;HIL;IPS

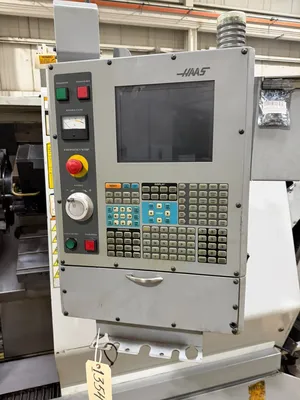

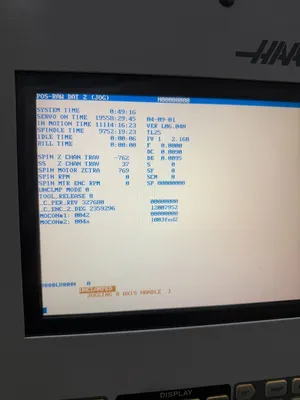

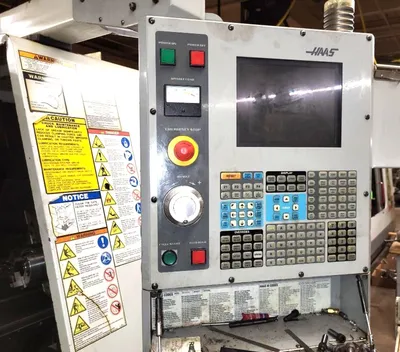

Haas CNC controls
P-Catcher
Auto jet blast
High Pressure coolant system

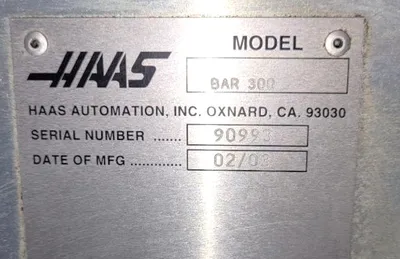

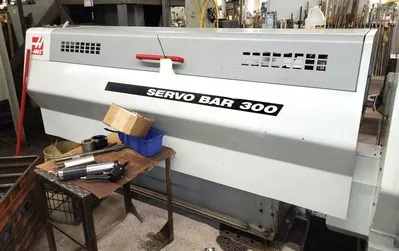

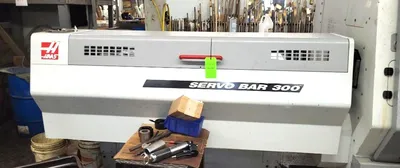

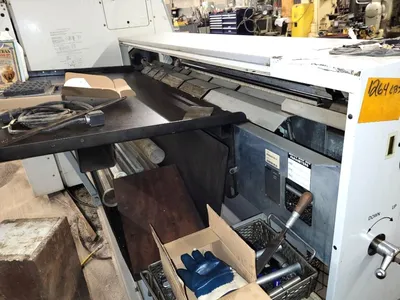

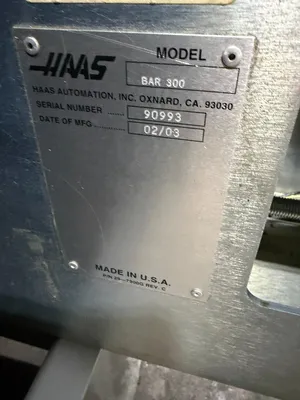

BAR3010GB Barfeed
Barfeeder Interface
16MB Memory
Macros

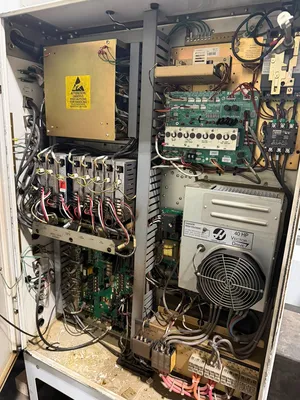

Internal transformer
Chip Conveyor
Tool Setter
