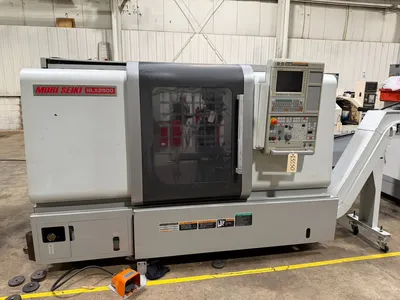

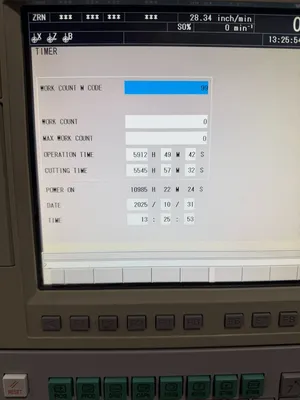

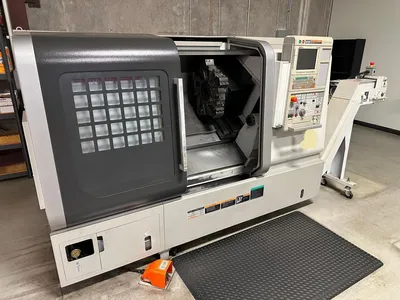

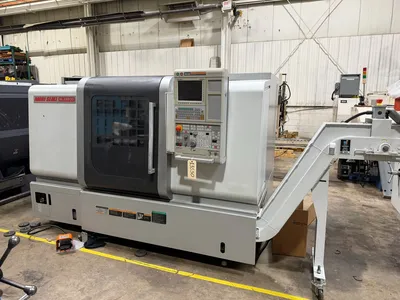

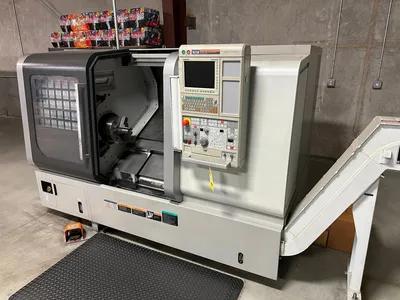

MORI SEIKI NLX2500/700 CNC TURNING CENTER LATHE, NEW 2011 ONLY 3188 HOURS

Make: MORI SEIKI
Model: NLX2500/700
Year: 2011
Condition: Used – Good
DMG Mori Seiki NLX2500/700 Equipped With:

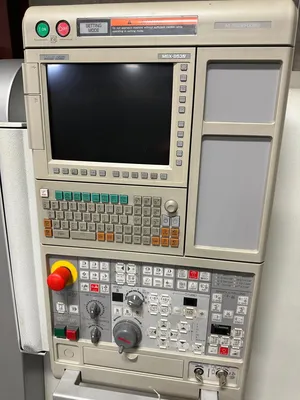

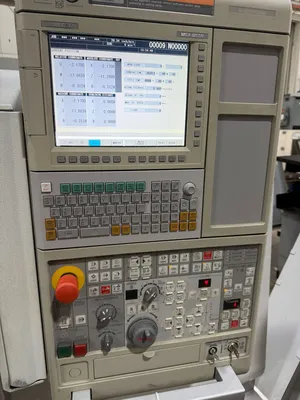

Mori Seiki MSX-853IV CNC Control

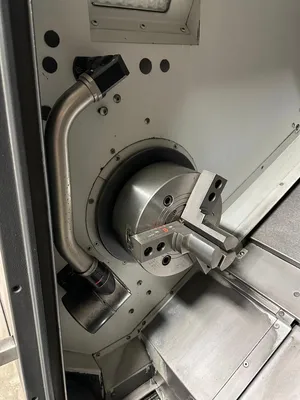

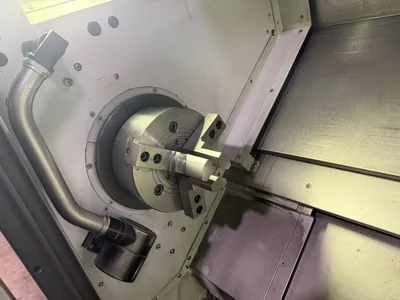

10″ 3 Jaw Hydraulic Chuck
12 Station High Speed Turret
25 HP Spindle Power
Tool Presetter
PCMCIA Card Slot
Programmable Tailstock
Coolant System

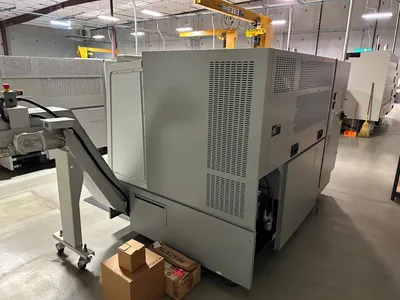

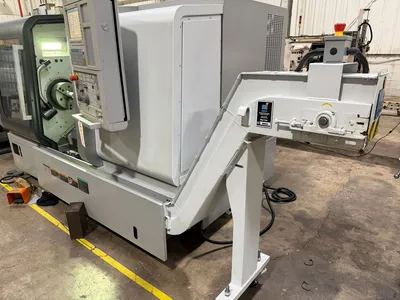

Chip Conveyor
Misc turret tooling
Capacity:
Max Turning Diameter: 14.4″
Max Turning Length: 27.7″
Max Bar Capacity: 3.1″
Swing Over Bed: 23.2″
Distance Between Centers: 31.5″
Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.2″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP

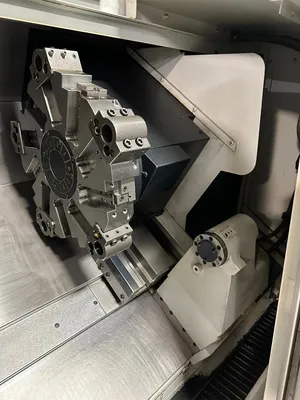

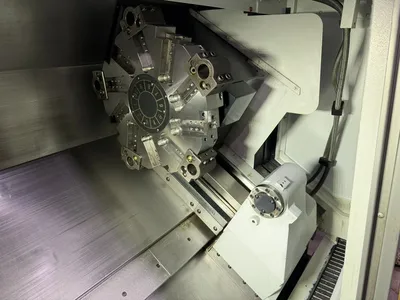

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tool Holders Type: BMT
Tailstock:
Tailstock Body Travel: 25.5″
Tailstock Quill Dia.: 3.34″
Tailstock Quill Stroke: 3.1″
Tailstock Taper: MT-4
General:

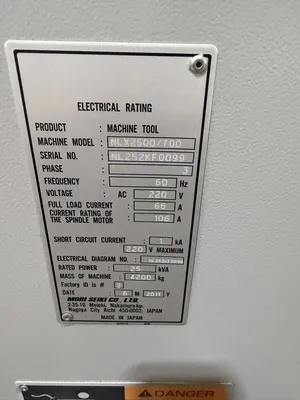

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 26 kva
Overall Dimensions: 103″ x 75 ″ x 72″ High
Weight : 9,900 lbs Approx.
