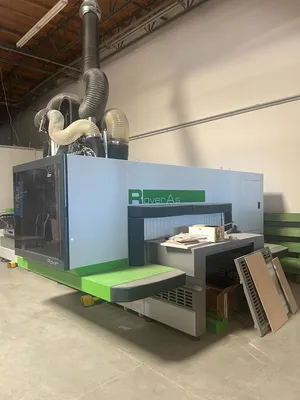

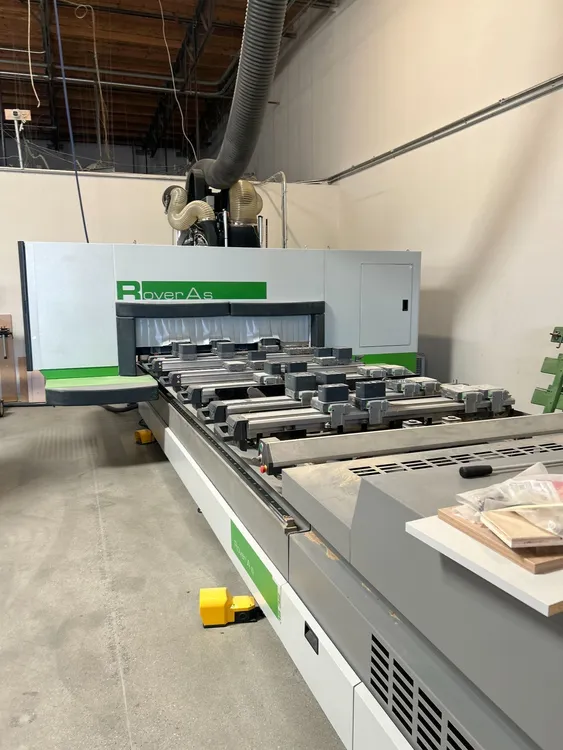

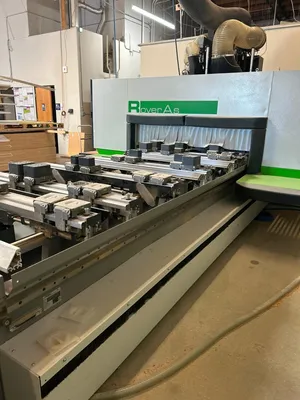

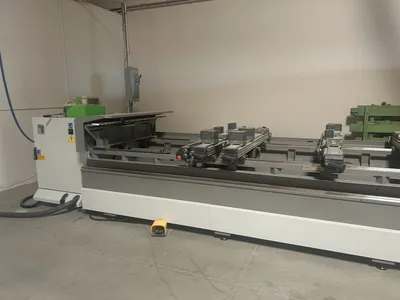

BIESSE ROVER AS 15 CNC ROUTER POD AND RAIL, NEW 2023

2023 BIESSE ROVER AS 15 NC MACHINING CENTER

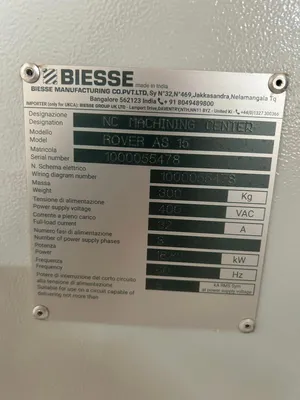

S.N: 1000055478

MACHINE SPECIFICATIONS:
CORE MACHINE SPECS
MACHINE TYPE: CNC POD & RAIL MACHINING CENTER
SPINDLE POWER: 17.4 HP
SPINDLE SPEED: UP TO 20,000 RPM
TOOL INTERFACE: HSK F63
TOOL CHANGER: 13-POSITION REVOLVER
SAWBLADE CAPACITY: 11.8"

WORKING AREA DIMENSIONS
X-AXIS TRAVEL: 123.6"
Y-AXIS TRAVEL:
61.4" FOR 4-AXIS UNIT
61.8" FOR 5-AXIS UNIT
Z-AXIS TRAVEL:
7.87" WITH H74 MODULES
9.65" WITH H29 MODULES
TABLE LENGTH: 59.1"

WORKHOLDING & STOPS

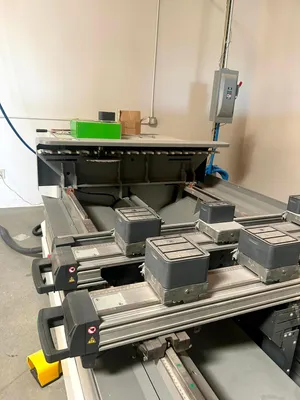

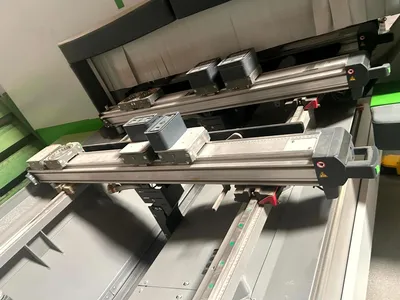

PANEL SUPPORTS: 6 ATS SUPPORTS
SLIDING BASES: 24 TOTAL
REAR STOPS: 4.53" STROKE + 0.98"
MIDDLE STOPS: POSITIONED AT 26.97", WITH 5.51" STROKE
SIDE STOPS: 5.51" STROKE, 2 LEFT + 2 RIGHT
LIFTING BARS: 4 SUPPORTS, H = 2.91"
