BIESSE AKRON 1330 CNC EDGE BANDER, NEW 2023

BIESSE AKRON 1330

AKRON 1300
source: BIESSE
Automatic single-sided edgebander of the BIESSE AKRON 1300 series.

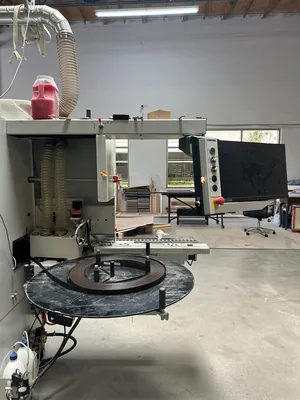

• Touchscreen-control panel for direct programming
• Administration and display of the adhesive temperature on the glue roller and in the container
• Air Force System for invisible edge banding (zero joint).
AKRON 1330 is in the configurations AKRON 1330-A, AKRON 1330-B and AKRON 1330-C.
Units
In all versions
• Jointing cutter system (optionally)
• Equipment AutoSet for an automatic centering of the tools in relation to the panel
• Gluing unit
• for automatic installment of rolling and stripe edges (0,4 - 5 mm)
• Cutting unit
• FlexSystem for automatic setup of the edge protrusion
• Copy system with tracing for a processing without leaving stripes, especially for high gloss surfaces.
• Cutting unit DESMO
• Radius-scraper unit (optional)
• Gluing scraper unit (optional)
• Brushes (optional)
further possible units in the different configurations
• Precision milling
• Rounding unit
• Groove unit
• Trimming unit (optional)
Technical data (2017)
• Overall length of the machine: 5213 mm
• Panel thickness: 10 - 60 mm
• Edge thickness: 0,4 - 5 mm
• Feedrate: bis zu 12 m/min

Technical features and options
Panel height: from 10 to 60 mm
Edge height: from 14 to 64 mm
Edge thickness (rolls): from 0.4 to 3 mm
Edge thickness (strips): from 0.4 to 5 mm
Panel overhang from the track: 25 mm
Panel length: 150 mm to 3200 mm
Track feed speed: 12 m/min
Minimum panel width (for a length of 150 mm): 85 mm
Minimum panel width (for a length of 250 mm): 50 mm
Chain feed speed: 12 m/min
Panel gap: from 350 mm to 650 mm
Dust extraction for each working unit: 1 port Ø 100 mm
Pneumatic connection: 7 bar
Operating voltage: 400 V / 50 Hz Three-phase + neutral
Control voltage: 24 V / 50 Hz
Static frequency converter, inverter: 200 Hz
Glue tank capacity: 2 kg
Glue tank warm-up time (50% full): 10 min

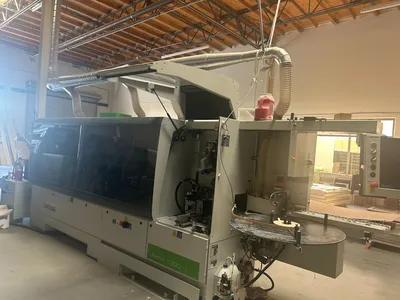

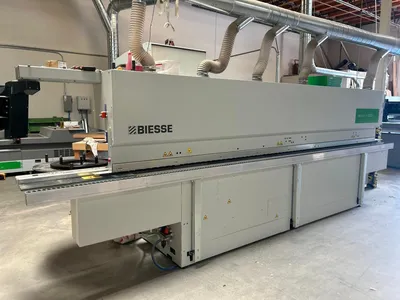

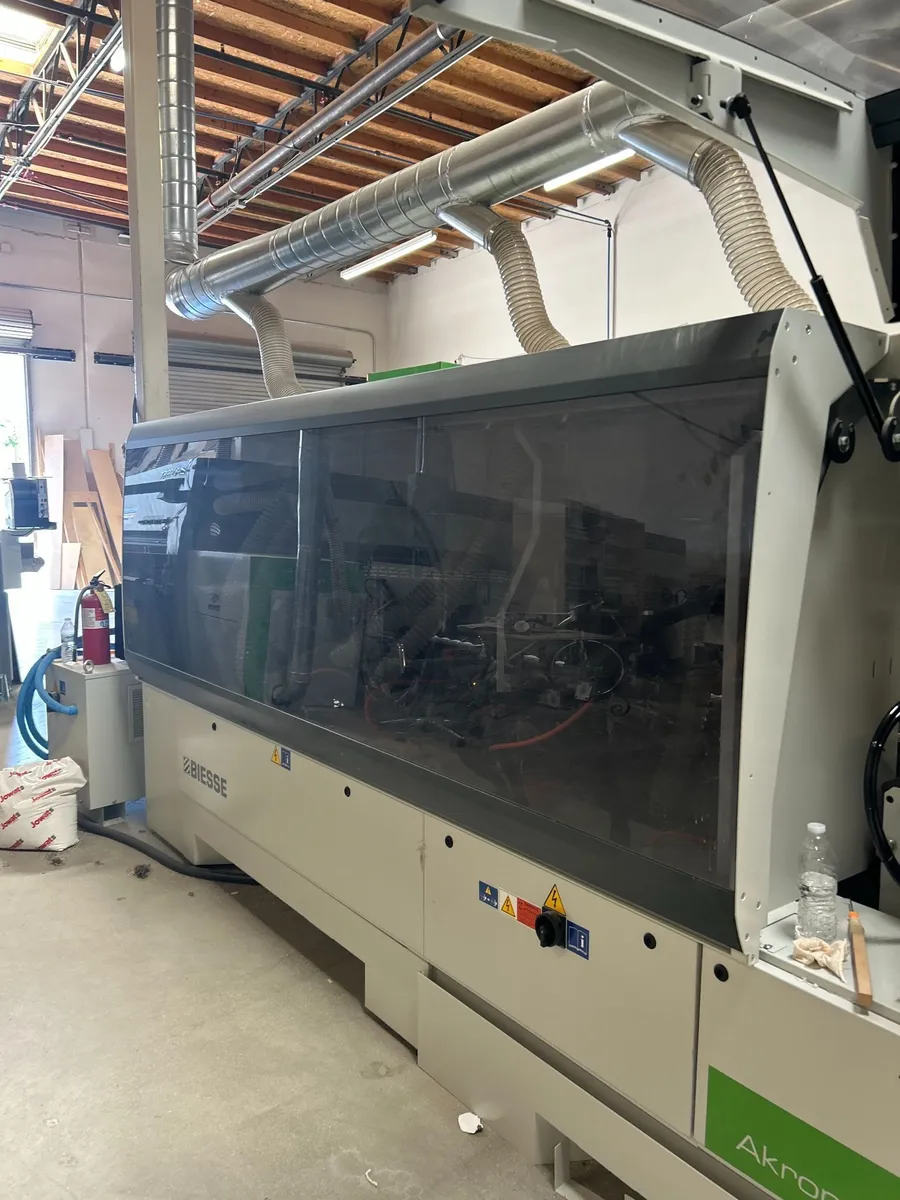

2023 BIESSE AKRON 1330 A SINGLE SIDED EDGEBANDER

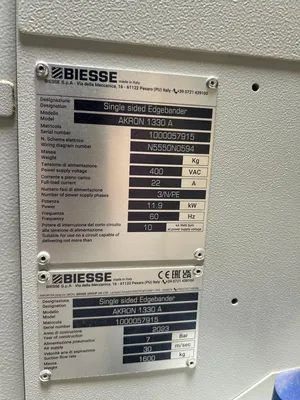

S.N: 1000057915

MACHINE SPECIFICATIONS:
CORE MACHINE SPECS
PANEL THICKNESS RANGE: 0.39" TO 2.36"
EDGE BANDING HEIGHT: 0.55" TO 2.52"
EDGE THICKNESS:
ROLLS: 0.016" TO 0.12"
STRIPS: 0.016" TO 0.20"
PANEL LENGTH RANGE: 5.91" TO 125.98"
FEED SPEED: UP TO 472.4
MACHINE LENGTH: 205.2"

PROCESSING UNITS
PRE-MILLING UNIT (RT02):
TWO 2.41 HP MOTORS AT 12,000 RPM
GLUING UNIT (SP03):
HYBRID CHUCK FOR EVA/PUR GLUE
END TRIMMING UNIT (IT03):
ONE 1 HP MOTOR AT 12,000 RPM
FINE TRIMMING UNIT (RF02):
TWO 0.87 HP MOTORS AT 12,000 RPM
