BIESSE SELCO SK4 AUTOMATIC PANEL SAW, NEW 2023

Technical data
Max. saw blade projection
SK 450: 75 mm
SK 470: 90 mm
Shift of the saw blade slide and the valve: Brushless-Motor
Speed saw blade slide: 1 - 120 m/min
Speed pusher: 60 m/min
Cutting dimensions
3200 x 3200 mm
3800 x 3200 mm
3800 x 3800 mm
4300 x 4400 mm

BIESSE SELCO SK 4

SELCO SK 450
source: BIESSE
For the service in handcraft and for the batch production CNC designed automatic beamsaw by BIESSE - SELCO.
The panel sizing plant exists in the editions:
• SEKTOR SK 4 450: K1 / K2
• SEKTOR SK 4 470: K1 / K2
Equipment features

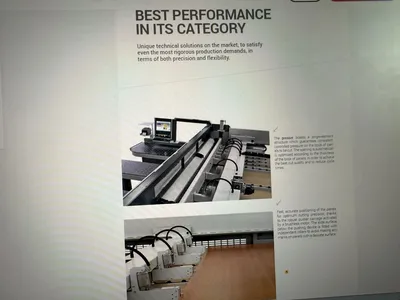

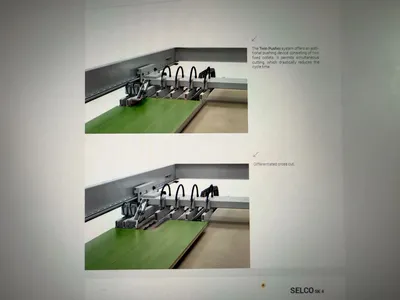

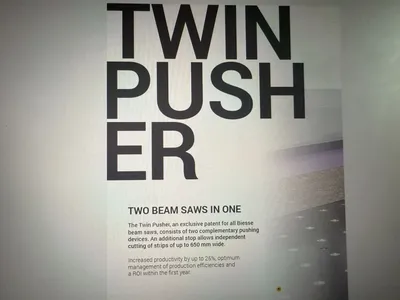

• TwinPusher
• Saw blade through top vibration-free
• Sprocket drive and spiral shaped toothrack for linear movement of the floating tool holder slide

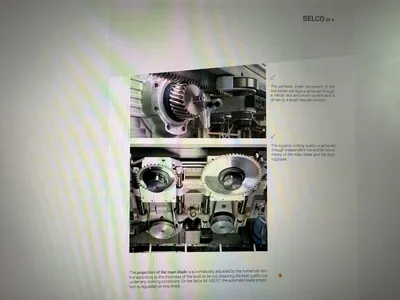

• Automatic regulation protrusion main saw blade through numeric control
• Stop for side alignment integrated in the saw carriage
• Reduction of feeding times
• Digiset-device for electronic regulation of the prescorer

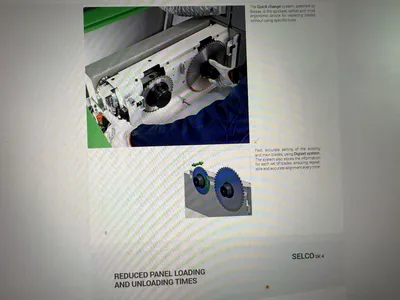

• patented quick-changing tool system for the saw blade change

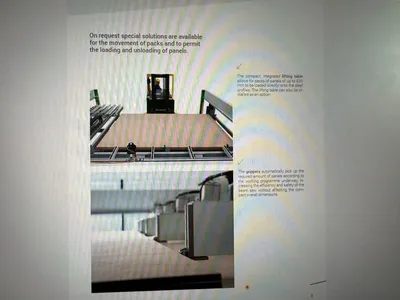

• Miscellaneous solutions for panel loading and deloading

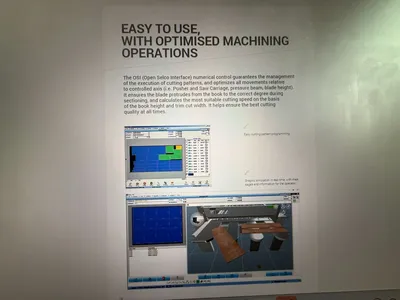

• Control: OSI
• Optimisation software: OptiPlanning and Quick Opti
• Labelling and Barcode-Scanner
Options

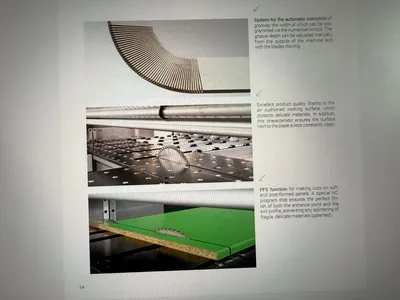

• PFS-function
• System for performing to groove
• Flotation table
• Software for inboard sections with panels

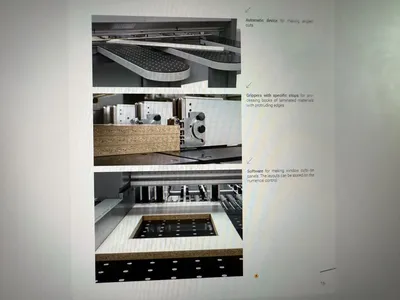

• Automatic prescoring for diagonal cuts
• Grippers with special stops
The beamsaw can be linked in production lines with different plants, such as e.g. Winstore.
Technical data
• Max. saw blade projection
• SK 450: 75 mm
• SK 470: 90 mm
• Shift of the saw blade slide and the valve: Brushless-Motor
• Speed saw blade slide: 1 - 120 m/min
• Speed pusher: 60 m/min
• Cutting dimensions
• 3200 x 3200 mm
• 3800 x 3200 mm
• 3800 x 3800 mm
• 4300 x 4400 mm

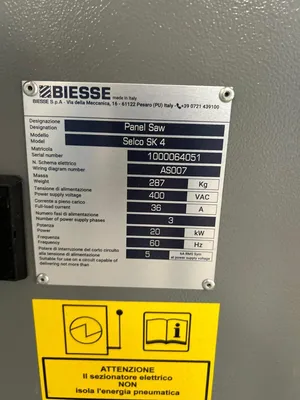

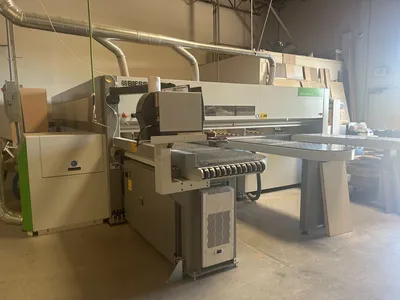

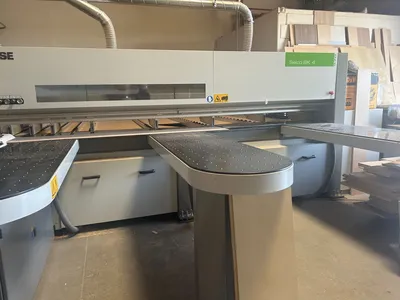

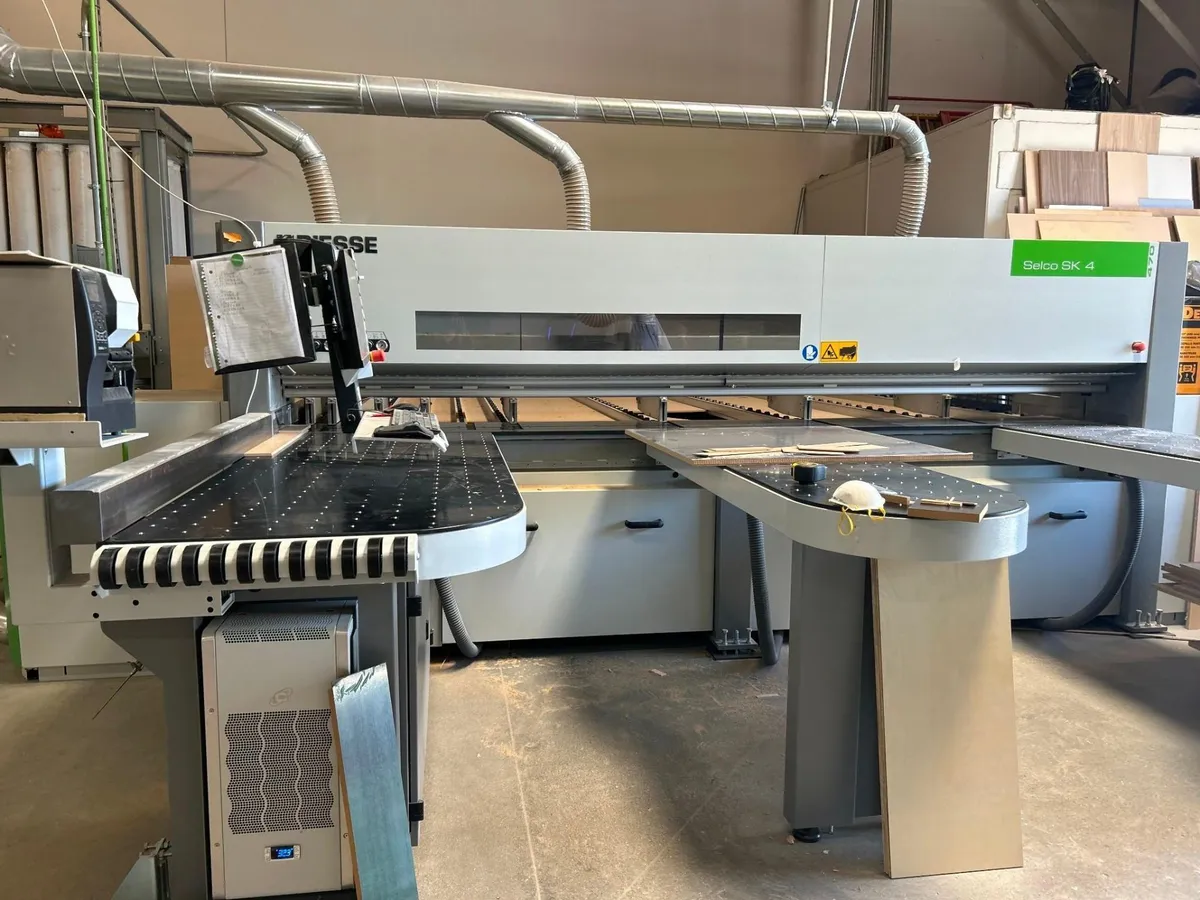

2023 BIESSE SELCO SK 4 PANEL SAW
S.N: 1000064051

MACHINE SPECIFICATIONS:
CORE MACHINE SPECS
