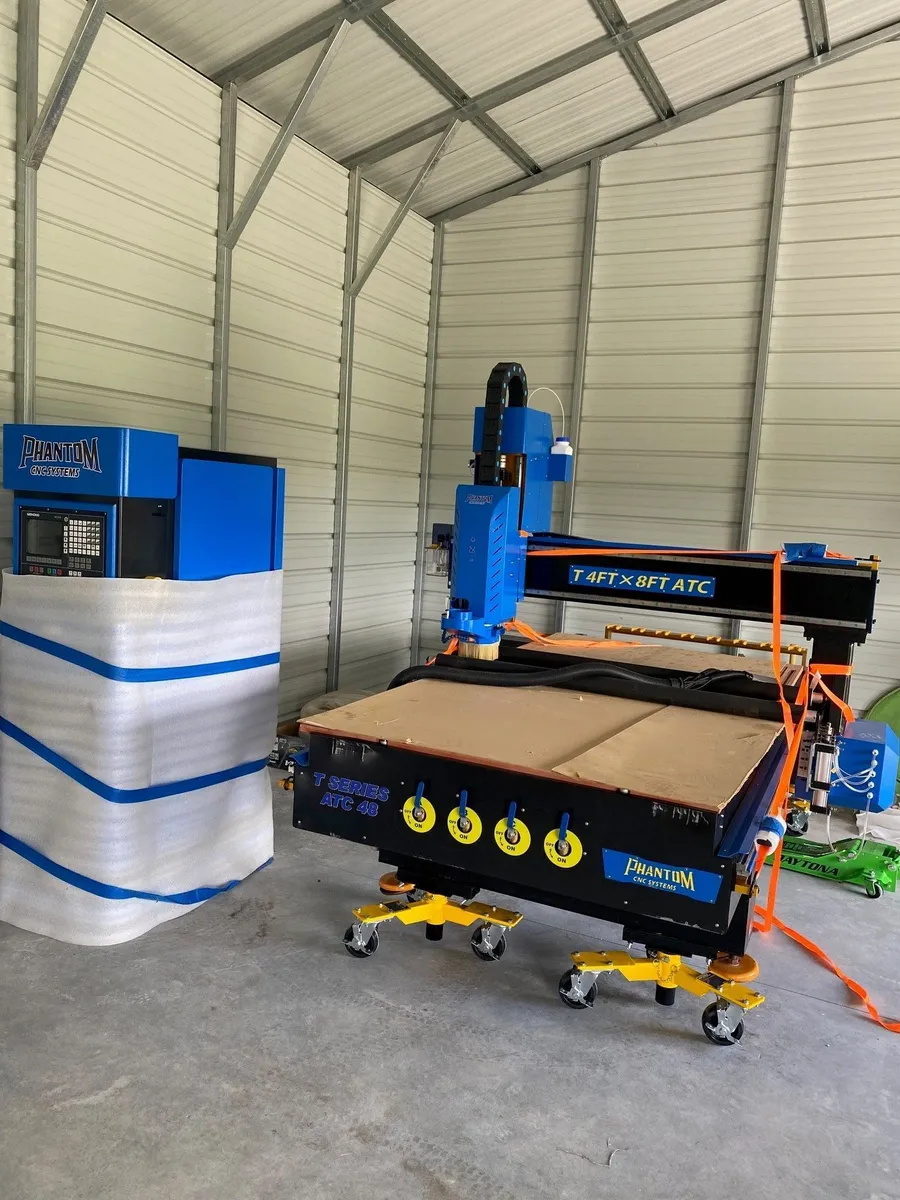

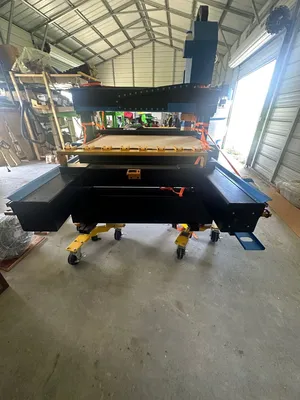

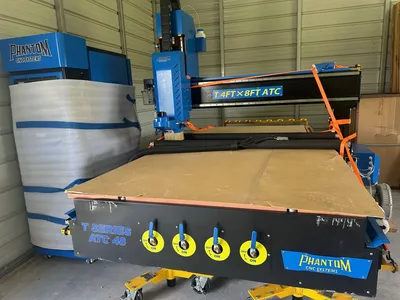

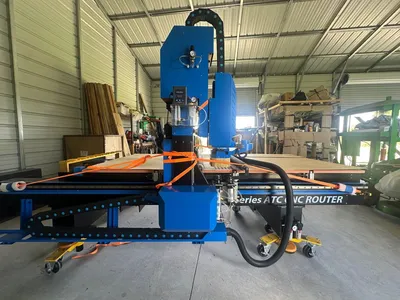

Phantom CNC Reaper 4' x 8' CNC Router, New 2023 Brand New Unused

WORKING AREA

X Y Axis options:

4' x 8 or 5' x 10'

Z Axis: 11.8"

VACUUM TABLE

Multi-Zone Bakelite Vacuum Table with T-Slot Clamping

SPINDLE

Air Cooled

16.1 hp

(Options Available)

8,000 - 24,000 RPM

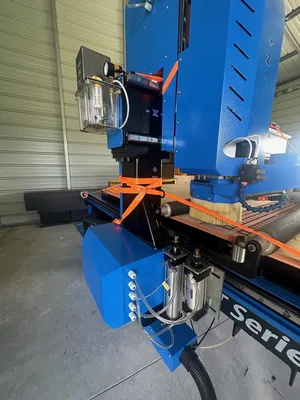

LUBRICATION
SYSTEM

Auto lubrication system for rack and pinons & ball screw

MOTORS & DRIVES

Delta 1000W drives with 850W servos

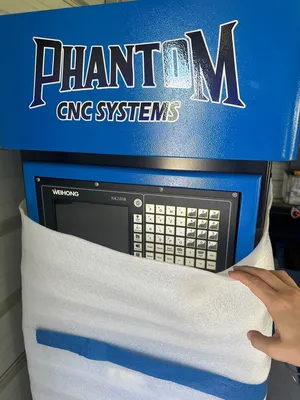

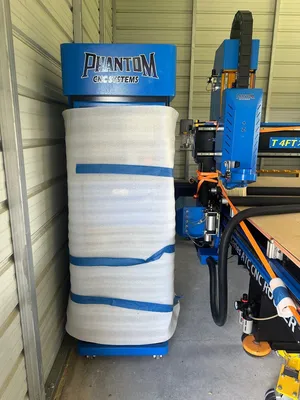

CONTROL
SYSTEM

NK-280B

AUTO TOOL CHANGER

Pneumatic 8-tool rack with ISO30.

( under-gantry options available )

WEIGHT

4' x 8' 3,000 lbs 5' x 10' 3,200 lbs

POWER

220V Single Phase 3 wire 60HZ 50Amp

TOOL SENSOR

Touch probe for tool length and Z work coordinate

MACHINE STRUCTURE

Welded Frame

PNEUMATIC ROLLERS

Automatic roller with 600 lbs force per unit

Reaper Brochure

Download the complete specs and features of the Reaper Series.

Reaper Guide

Download the guide for setup, operation, and maintenance.

Controller Manual

Download the manual for the FANUC or NK-280B controller.
