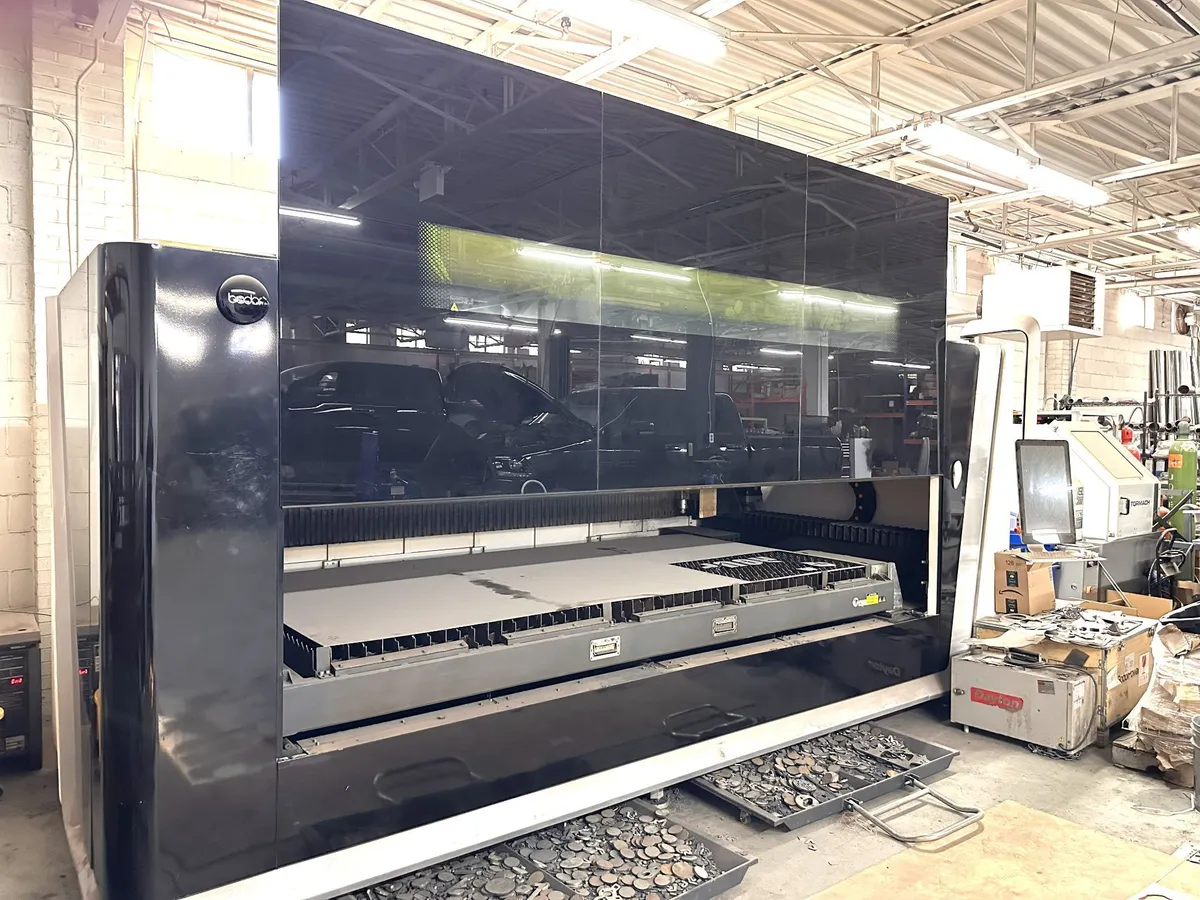

BODOR i7 CNC LASER CUTTER, 3KW, NEW 2023

Intelligent Function

i7
Time Savings Remnant Typesetting ●
High speed cutting expert database ●
Bodor lightning perforation technology ●
Automatic adjustment of cutting gas pressure
O2
Laser cutting technology expert database ●

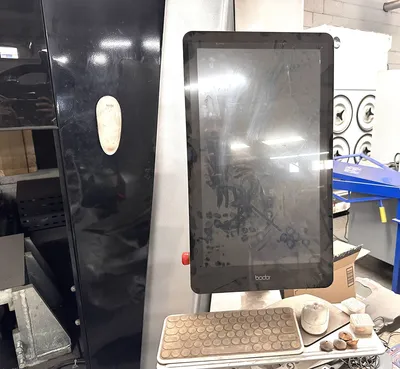

Touchscreen Display ●
Auto-focus of laser head ●

Quality Cutting Active anti-collision function ●
Intelligent anti-shake of sheet edge ●
High quality Cutting Expert Database ●
Ergonomic Remote Control ●
Gas-saving steady flow nozzle ●
Anti-slag Protection ●

Cost Savings Bodor Intelligent Design Software ●
Intelligent maintenance reminder ●

Services WIFI internet connection ●
Bodor cloud service ●

Performance
i7
Max. Linkage speed 91m/min
Max. acceleration 1.5G
Table load bearing 900kg

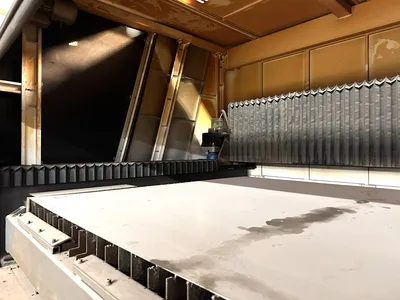

Working table size(mm) 3048*1524mm
Machine overall dimensions(mm) 4955×2320×2200mm
Requirement for sheet Plate thickness≥0.8mm
Overall weight 4980kg
Z axis travel 120mm
Positioning accuracy ±0.05mm/m
Repositioning accuracy ±0.03mm
Φ30mm roundness ≤0.15mm
□30mm adjacent side dimension difference ≤0.06mm
□190mm adjacent side dimension difference ≤0.15mm
□190mm diagonal size difference ≤0.20mm
Optical System

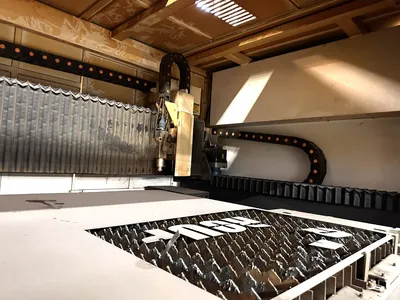

laser head BodorGenius
Laser source BodorPower
Mechanical System
Machine bed Mortise-and-tenon type plate welded segmented bed
Bed functions Easy-access sliding bed

X-axis、Y-axis、Z-axisServo motor and driver Bodor
Linear Rails Bodor
Lead Screw Bodor

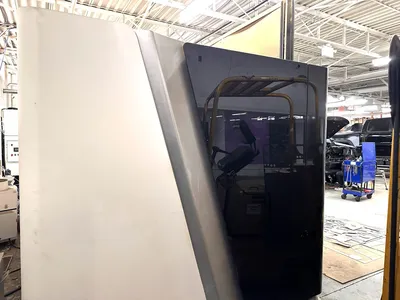

Protective Enclosure ●
Electrical System
Control system BodorThinker
Display size 21.5 inches
Intelligent alarm ●
Door-open Protection ●

Peripheral System

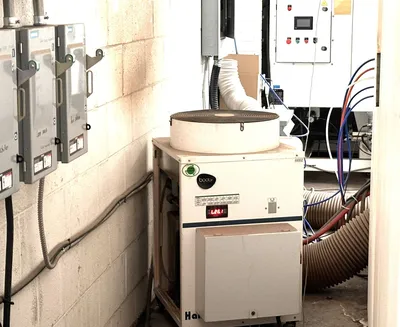

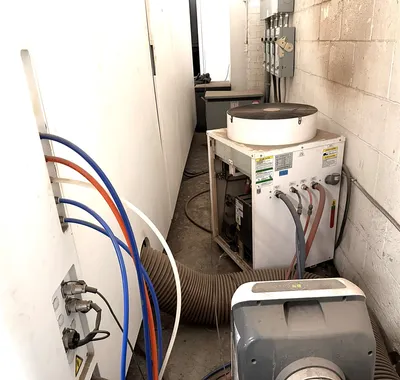

Water Chiller ●

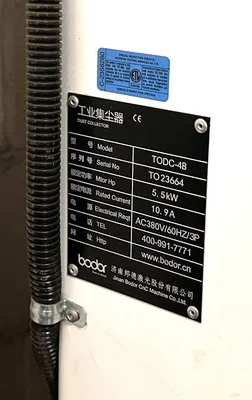

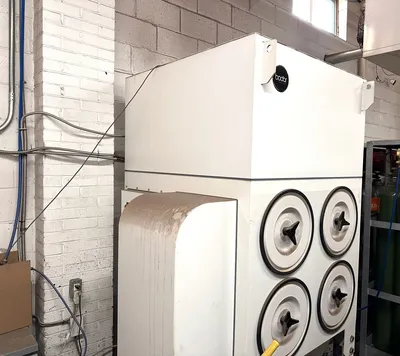

Fume Dust Collector ●

Other Parameters Configuration

Maximum Cutting Capacity
Carbon steel 20mm
Stainless steel 18mm
Aluminum 16mm
Brass 10mm
