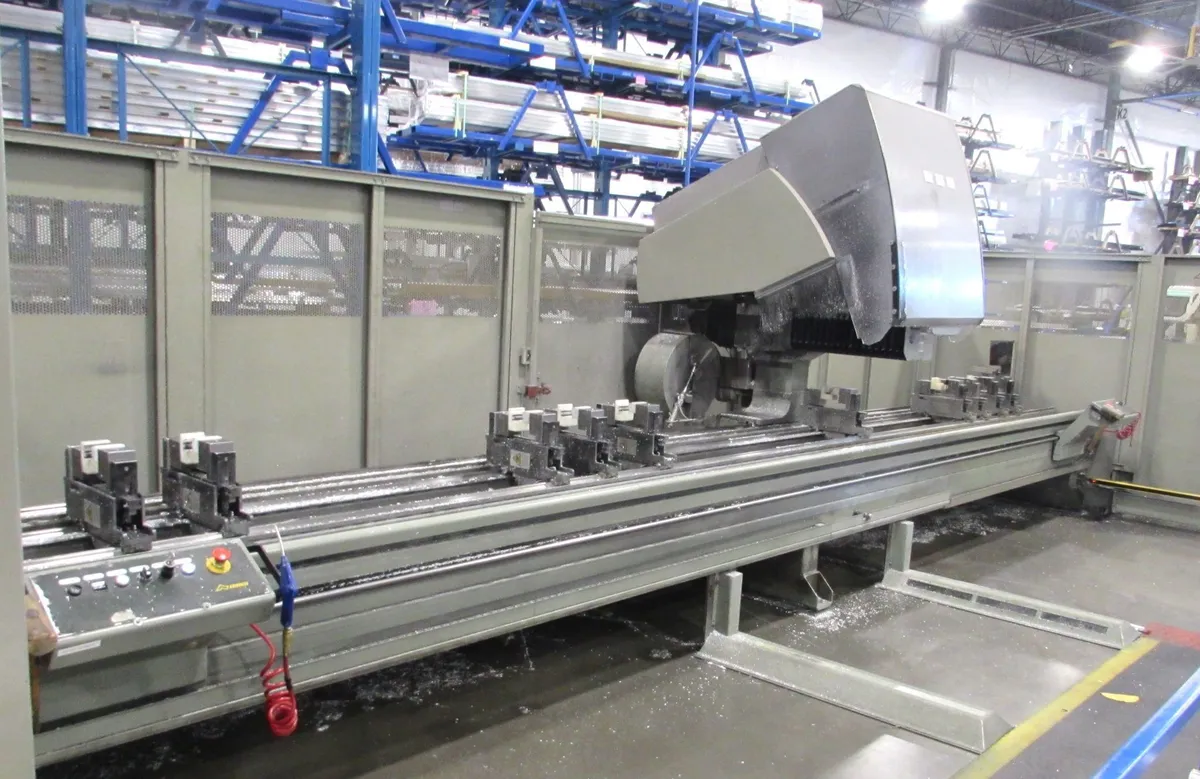

7 meter EMMEGI COMET T4 CNC 4-AXIS PROFILE VERTICAL MACHINING CENTER, CNC ROUTER

Machining center CNC with 4 controlled axes, used for the working of bars of aluminium, PVC, light alloys in general and steel pieces. It has two functioning methods: only one work area for bars up to 7 m long or two independent work areas. Two additional axes with numerical control Ha and P allow the positioning of the reference bars and of the vices units on the entire length of the machine, allowing to work in dynamic swing mode and in multipiece mode. The 4th axis allows the electro spindle to continuously rotate to CN from 0° to 180° to perform the work on the profile edge. It has an 8 place tools storage, on board the X axis slide, able to host 2 angular units and one milling disc, to perform work on the 5 sides of the piece. It also has a mobile work surface that facilitates the piece loading/unloading operation and significantly increases the workable section.
2010 Emmegi Comet T4

X Travel: 7280 MM
Y Travel: 525 MM
Z Travel: 380 MM
A- Axis Spindle Rotation: 0 degrees to 180 degrees continuous
Spindle Speed: Variable to 24000 RPM
Spindle Taper: HSK-40E
8 Tool Changer
8 Moveable clamps
Automatic Clamp Positioning
