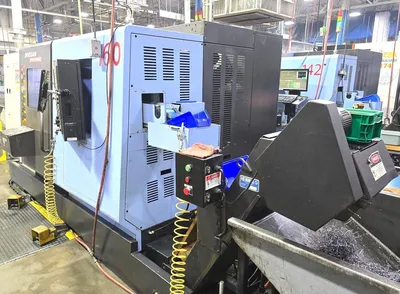

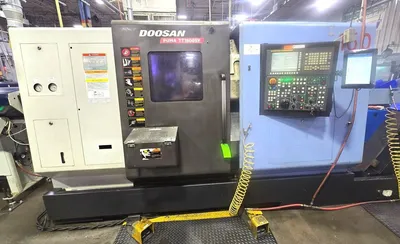

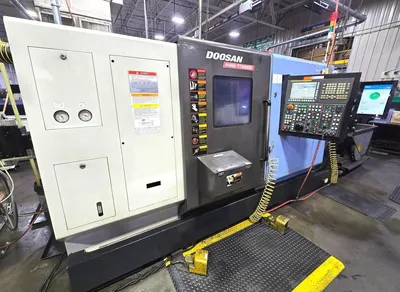

DOOSAN PUMA TT1800SY CNC TWIN TURRET AND TWIN SPINDLE CNC TURNING CENTER

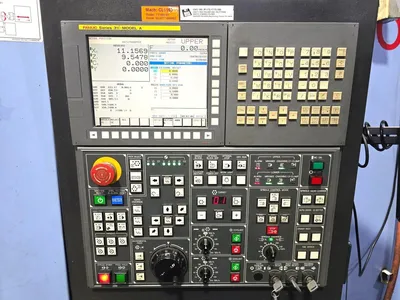

Fanuc 31i Model B Control
Chuck size
Collet Chucks Both Spindles
Maximum swing over bed
9.05"
Maximum cutting diameter
9.05"
Maximum machining length
9.1"
Distance between spindles
38.582"
Maximum bar capacity
2.625"
X1-axis travel / x2-axis travel
6.5" / 7.5"
Y-axis travel
3.93"
Z1-axis travel / z2-axis travel
31.5" / 28.3"
C axis spindle rotation
0.001 Degrees - both Spindles
A-axis travel - subspindle
30.3"
Spindle nose / spindle bore
A2-6" / 3.0" - both Spindles
Main & subspindle speeds
5,000 RPM
Spindle motor - both spindles
30 HP
Rotary tool speed / rotary motor
5,000 RPM / 7.5 HP
Number of turret positions
24 Station Turret - Each
Rapid traverse rates x / y / z
787 IPM / 295 IPM / 984 IPM
Machine dimensions
154" x 82" x 98"
Machine weight
17,196 lbs.

Description
Full C Axis Spindle Rotation - Both Spindles
Live Milling/Drilling Capability - Both Turrets
Y Axis Capability on Upper Turret

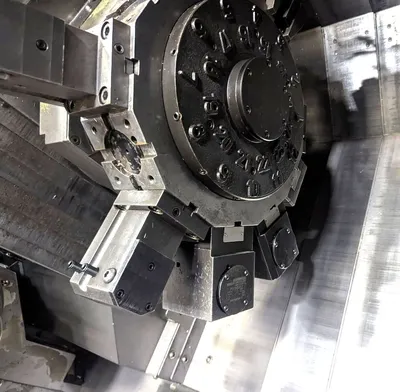

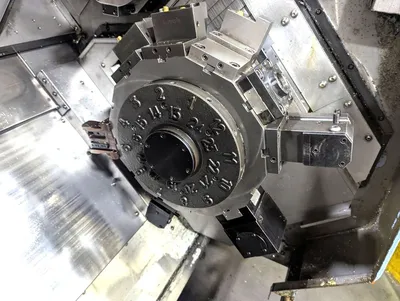

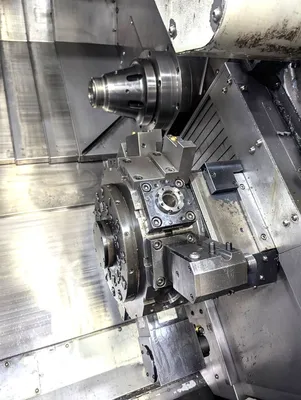

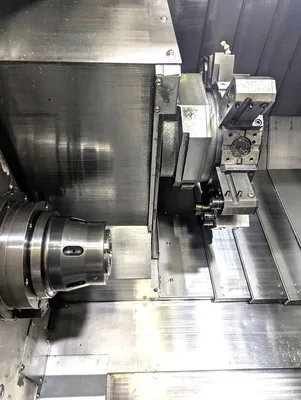

Twin Turret Design with Upper and Lower Turrets
Dual Spindle Design
CoolJet High Pressure Coolant System
Quick Change Collet Chucks on both Spindles
Tool Presetter

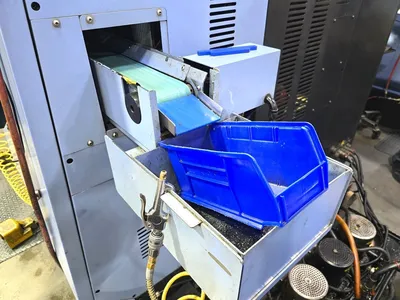

Parts Catcher
Parts Exit Conveyor
Chip Conveyor
Ethernet Interface
PCMCIA Card Interface
RS 232 Port Interface
3 Color Machine Status Condition Lights
Boxed Ways

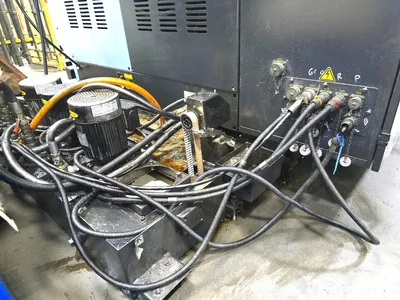

Coolant Tank with Pump
(4) 90 Degree Live Tool Holders
(1) Straight Live Tool Holders
