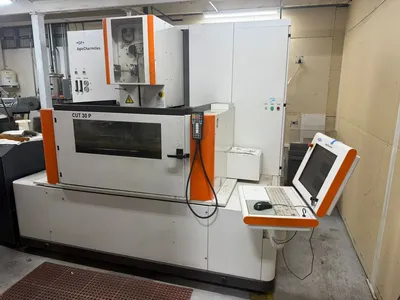

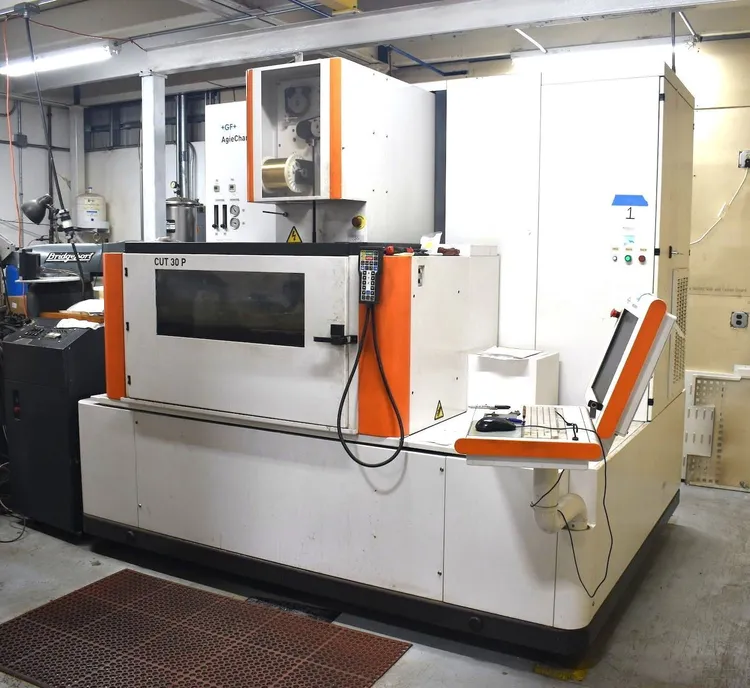

Agie Charmilles Cut 30P CNC Wire Cutting EDM, New 2014

High-precision wire EDM machine from +GF+ Agie Charmilles, model EDM CUT 30 P.
This advanced generation machine combines Swiss engineering excellence with state-of-the-art CNC control for exceptional accuracy, cutting speed, and reliability. Ideal for tool and die making, mold production, and high-precision part manufacturing.

Technical specifications (approx.):

Number of axes: 5
X-axis movement: 600 mm
Y-axis movement: 400 mm
Z-axis movement: 350 mm
V-axis movement: ± 50 mm
U-axis movement: ± 50 mm

Max. workpiece length: 1030 mm
Max. workpiece width: 800 mm
Max. workpiece height: 350 mm
Workpiece weight: 1000 kg

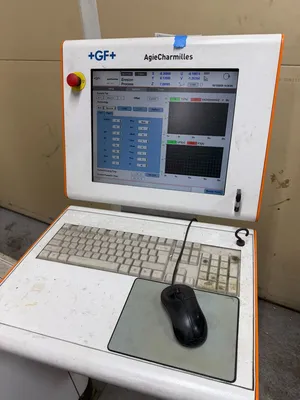

CNC type
Automatic wire feed: Yes

Measuring device: glass scales (xy) / encoder (uvz)
Measuring resolution: 0.1 µm
Max. taper angle: ± 10° (57 mm height)
Max. workpiece size: 1030 × 800 × 350 mm
Table size: 950 × 630 mm
Distance between table surface and floor: 1060 mm

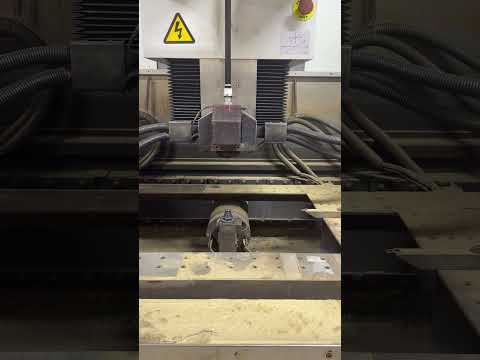

Wire guide diameter: 0.10 / 0.15 / 0.20 / 0.25 / 0.30 mm
Automatic wire threading diameter: 0.15 / 0.20 / 0.25 / 0.30 mm

Weight: 4690 kg
Approximate dimensions: 1400 × 2510 × 2580 mm
