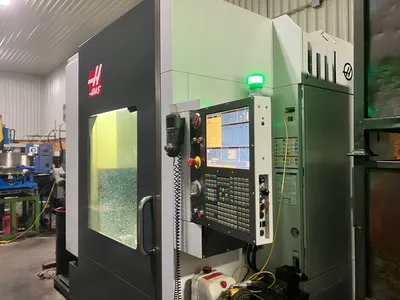

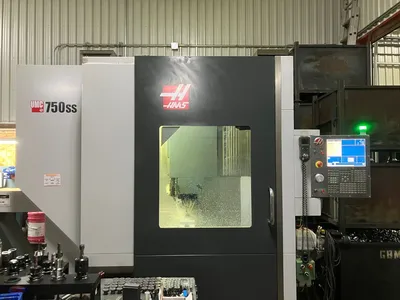

2015 Haas UMC-750SS 5-Axis Universal Machining Center
Have one to sell?
1 available
2015 Haas UMC-750SS, 5-axis machining center with 30" x 20" x 20" travel, 12k RPM spindle, 40 ATC, and 660 lbs max table load. Includes CAT40 tool holders, 5-axis vise, and Pierson Pro Pallet System. Equipped with through spindle coolant, WIPS probing.
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Table Size: 19.7" x 19.7"
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 40 ATC
Max Cutting 650 ipm
Spindle Nose to Platter 4" -24"
Max Torque 90 ft-lbf
Platter Diameter 19.7"
Max Weight on Platter 660 lb
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf
Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
B AXIS: ROTATION
Travel 120 ° to 35- °
Max Speed 150 °/sec
Max Torque 1200 ft-lbf
Brake Torque 4300 ft-lbf
C AXIS: ROTATION
Travel 360 °
Max Speed 150 °/sec
Max Torque 450 ft-lbf
Brake Torque 3300 ft-lbf
Max Swing 27"
Dimensions: 160" x 96" x 110"
Weight: 19,100 LBS

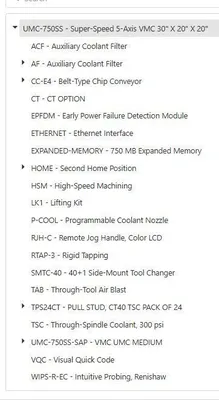

12k RPM Spindle (new spindle in 2019)
40 Position ATC
CT-Style tool changer grippers
Through Spindle Coolant 300 psi

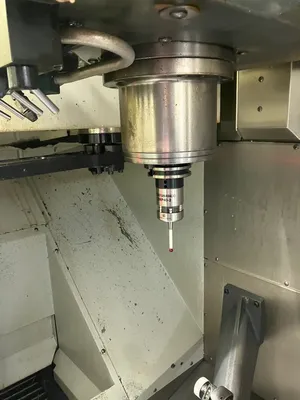

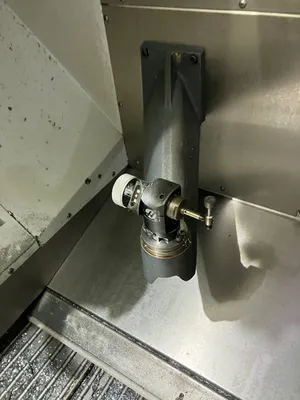

WIPS probing Renishaw
High Speed Machining
Second Home Position
Rigid Tapping

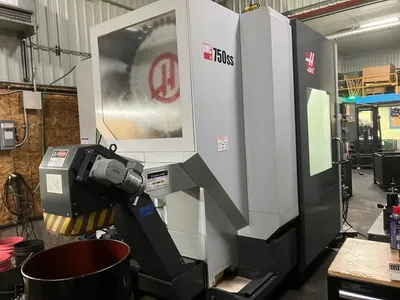

Belt-type chip conveyor UMC
Programmable Coolant Nozzle
Through Tool Air Blast
Early Power Failure Detection
Ethernet Connection
Expanded Memory 750mb
Visual Quick Code Programming System
Auxiliary Coolant Filter System for TSC
Additional items included:

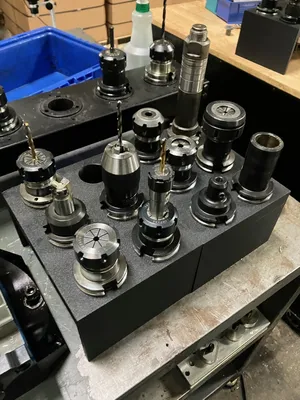

• CAT40 tool holders

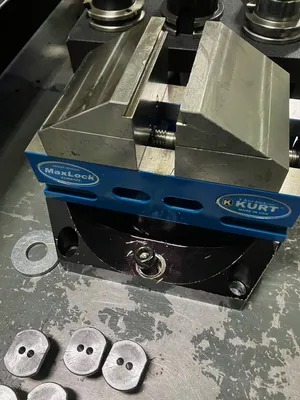

• 5-axis vise

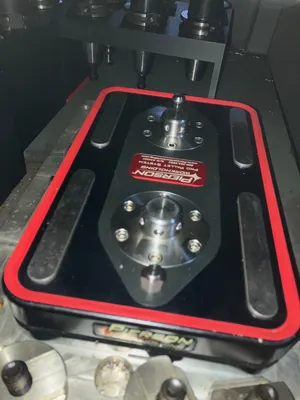

• Pierson Pro Pallet System
Mostly cut 1018 and aluminum
