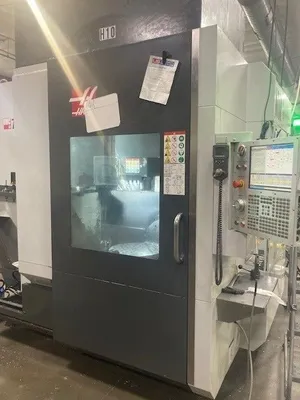

2018 Haas UMC-750 5-Axis Precision CNC Universal Machining Center
Have one to sell?
1 available
2018 HAAS UMC-750 5-AXIS CNC Machining Center, used, with travels X: 30", Y/Z: 20", 12,000 RPM, 30 HP spindle. Equipped with dynamic work offsets, tool center point control, and high-speed machining. Ideal for precision work.
Travels:
X-Axis 30"
Y & Z Axis 20"
Spindle Nose to Table (max.) 24"
Spindle Nose to Table (min.) 4"
Max. Rating 30 HP
Max. Speed 12,000 RPM
Max. Torque 90 ft-lb @ 2000 RPM
Taper CT40
Bearing lubrication Air/Oil Injection
Cooling Air Cooled
B-Axis Tilt
Travel 110 deg to 35- deg
Max. Speed 50 deg/sec
Max. Torque 400 ft-lbf
Brake Torque 1800 ft-lbf

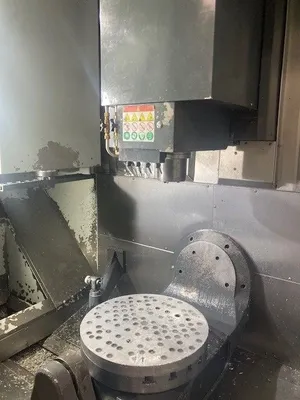

C-Axis Rotation
Travel 360 deg.
Max. Torque 300 ft-lbf
Brake Torque 500 ft-lbf
Max. Part Swing 27"
Platter diameter 19.7"
Max. Weight On Platter 660 Lb
T-Slot Width 0.630"
T-Slot Distance 2.48"
Number of Std T-Slots 7
Max. Cutting 650 IPM
Rapids on X/Y/Z 1200 IPM
Tool Capacity 40+1
Max. Tool diameter (full) 3"
Max. Tool diameter (adjacent empty) 5"
Max. Tool Length (from gage line) 12"
Max. Tool Weight 12 Lbs
Tool-to-Tool 2.8 Seconds
Chip-to-Chip (avg) 3.6 Seconds
Coolant Capacity 75 Gal
Air Required 4 SCFM @ 100 PSI
Inline Air Hose 3/8"
Coupler (Air) 3/8"
Air Pressure Min. 80 PSI 5.5 bar
Machine Dimensions (approx) 160"x94"x110"
Machine Weight (approx) 19,100 Lbs.

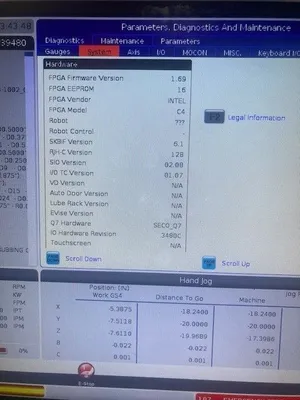

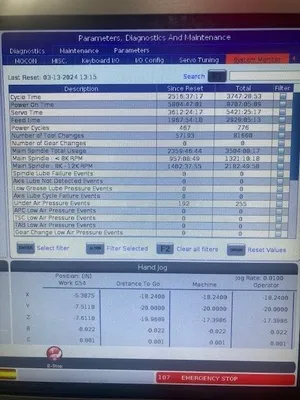

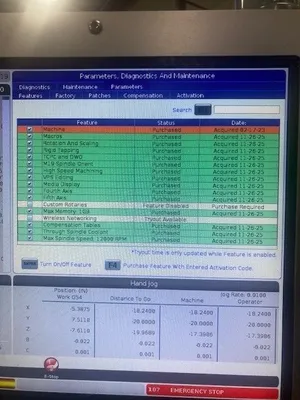

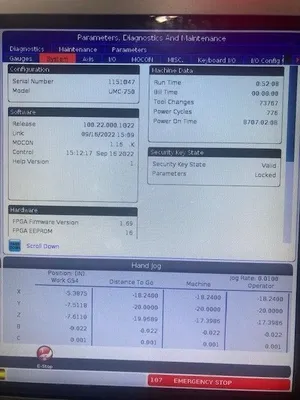

Haas CNC Controls with 5-Axis Simultaneous Software

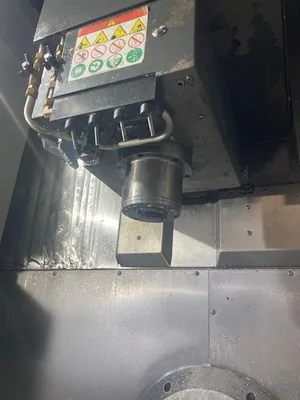

12,000 RPM 30 HP Spindle
High Speed Machining
WHIPS Intuitive Probing Renishaw

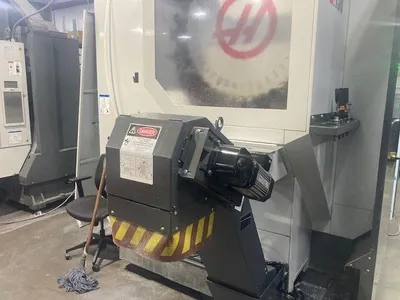

Belt Type Chip Conveyor
Dynamic Work Offsets and Tool Center Point Control
Second Home Position,
Programmable Coolant Nozzle
Remote Jog Handle, Color LCD & Rigid Tapping

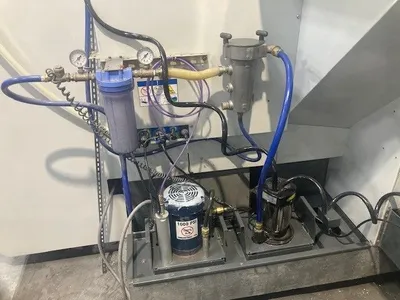

Through Spindle Coolant, 1,000 PSI
4th Axis & 5th Axis Enable

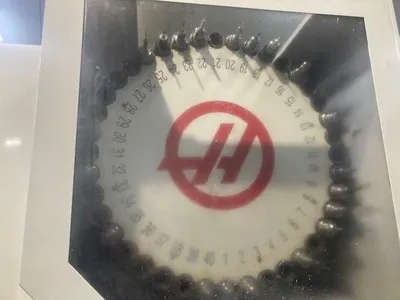

40 Position ATC

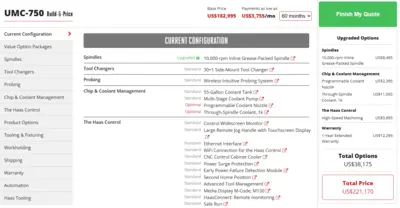

*Fully Loaded Machine, New price as built today $221k
