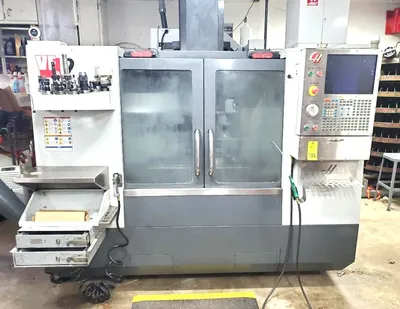

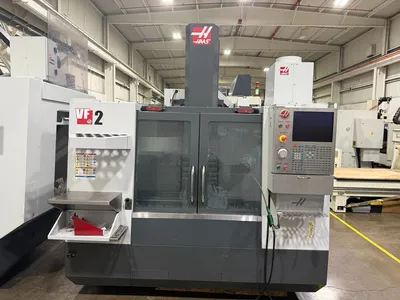

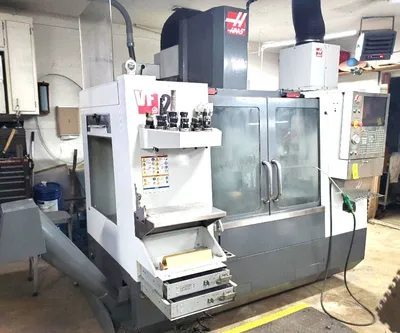

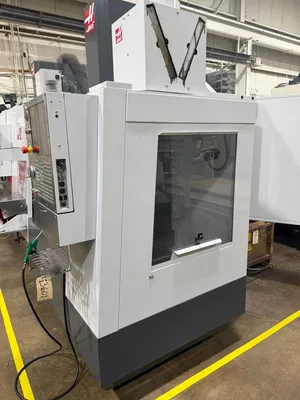

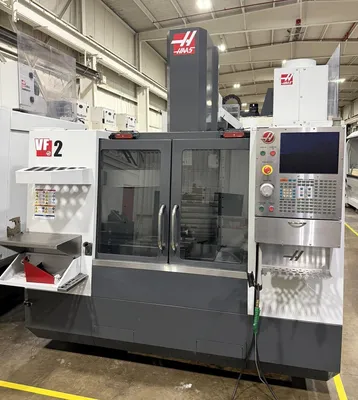

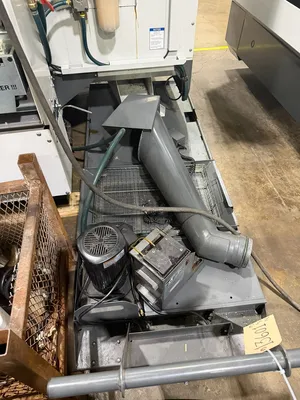

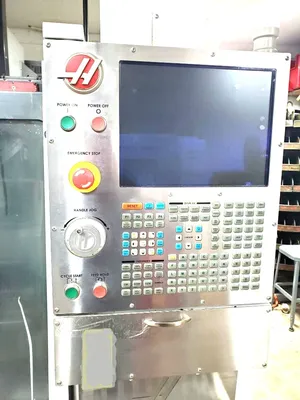

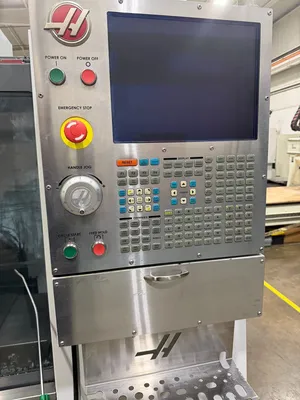

Haas VF-2 CNC 4-Axis Vertical Machining Center, New 2015

TRAVELS S.A.E METRIC
X Axis 30.0 in 762 mm
Y Axis 16.0 in 406 mm
Z Axis 20.0 in 508 mm
Spindle Nose to Table (~ max) 24.0 in 610 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm

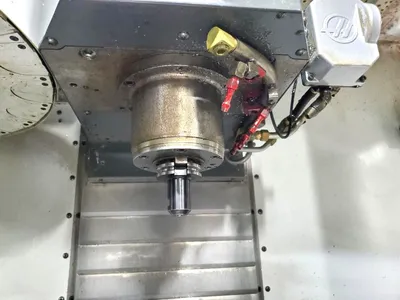

SPINDLE S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive

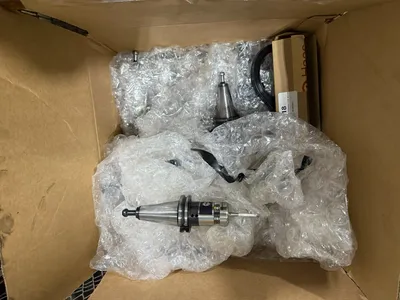

Taper | ct40 |
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled

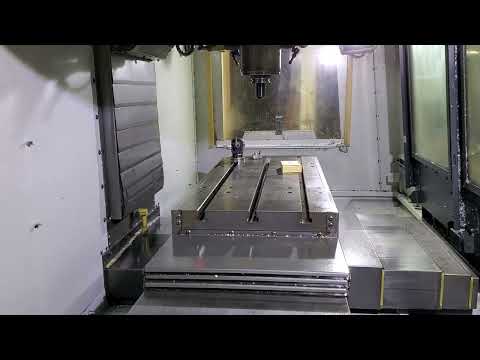

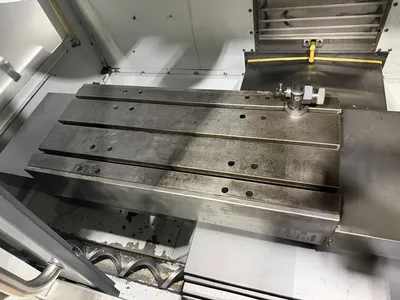

TABLE S.A.E METRIC
Length 36.0 in 914 mm
Width 14.0 in 356 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 1500 lb 680 kg
FEEDRATES S.A.E METRIC
Max Cutting 833 ipm 21.2 m/min
Rapids on X 1400 ipm 35.6 m/min
Rapids on Y 1400 ipm 35.6 m/min
Rapids on Z 1400 ipm 35.6 m/min

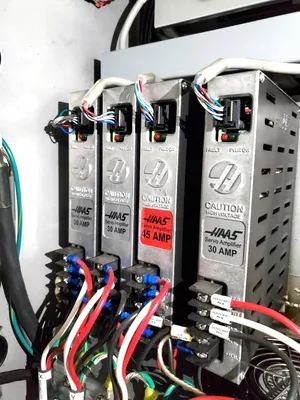

AXIS MOTORS S.A.E METRIC
Max Thrust X 1995 lbf 8874 N
Max Thrust Y 1995 lbf 8874 N
Max Thrust Z 3085 lbf 13723 N

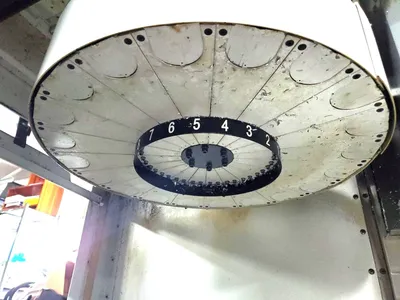

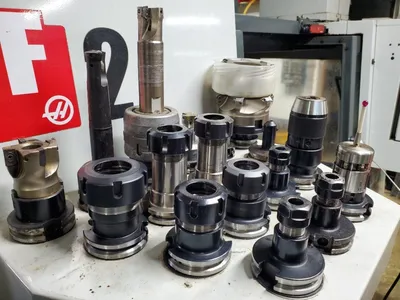

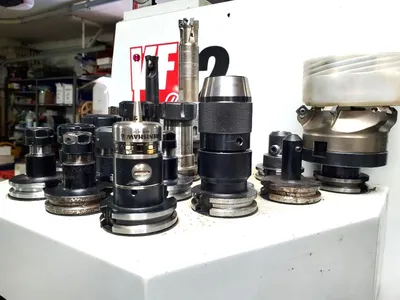

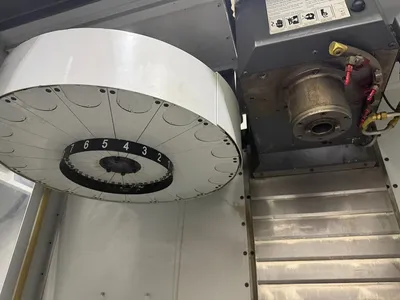

TOOL CHANGER S.A.E METRIC
Type S
Capacity 20+1
Max Tool Diameter (full) 2.5 in 64 mm
Max Tool Diameter (adjacent empty) 5.0 in 127 mm
Max Tool Length (from gage line) 11 in 279 mm
Max Tool Weight 12 lb 5.4 kg
Tool-to-Tool (avg) 1.8 s 1.8 s
Chip-to-Chip (avg) 2.4 s 2.4 s
GENERAL S.A.E METRIC

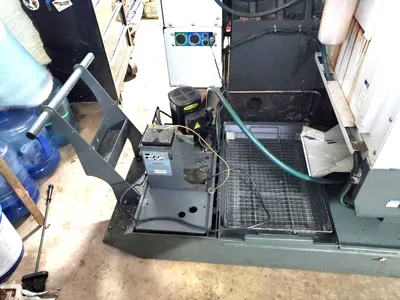

Coolant Capacity 55 gal 208 L

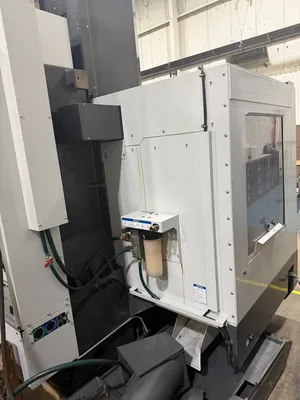

AIR REQUIREMENTS S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
DIMENSIONS - SHIPPING S.A.E METRIC
Domestic Pallet 101 in x 99 in x 101 in 257 cm x 251 cm x 257 cm
Export Pallet 98 in x 92 in x 100 in 249 cm x 232 cm x 254 cm
Weight 7800 lb 3539.0 kg

Weight w/Conveyor 8380 lb 8380 lb

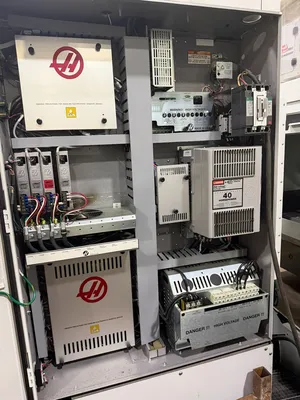

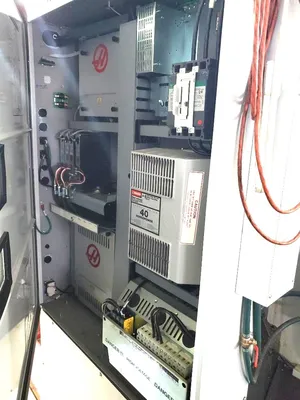

ELECTRICAL SPECIFICATION S.A.E METRIC

Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
