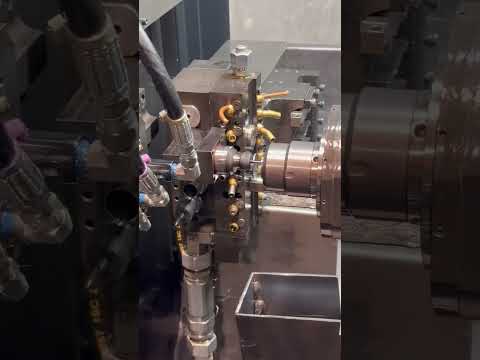

2011 DMG Gildemeister Sprint 20/8 Linear 8-Axis CNC Swiss Type Lathe
Have one to sell?
1 available
2011 DMG Gildemeister Sprint 20/8 Linear CNC Swiss Lathe, 6+2 axes, bar capacity 0.78", spindle speed 10,000 RPM, rapid traverse 1,574.8 IPM. Includes Fanuc control, barfeed, live tooling, chip conveyor, and parts catcher. Compact and efficient.
Bar Capacity: 0.78"
Spindle Speed: 10,000 RPM
Spindle Motor: 5 HP
Number of Axes: 6+2
Main Spindle:
Z-1 Spindle Stroke: 3.1496"
Bar Capacity: .7874"
Spindle Speed: 10,000 RPM
Drive Power: 7.38/4.96 HP
Run Up Time (RPM/Sec): 5,000/0.6
Sub-Spindle:
Bar Capacity: .7874"
Spindle Speed: 10,000 RPM
Drive Power: 7.38/4.96 HP
Run up Time (RPM/Sec): 5,000/0.6
Rapid Traverse Rate for Linear Axes: 1,574.8 IPM
Travels:
Tool Carrier 1 - X1 (Linear) / Y-1: 1.9685" - 13.7795"
Tool Carrier 2 - Y2: 4.72"
Sub-Spindle - X2 / Z2: 9.45" - 11.81"
Tooling:
Carriage 1:
Fixed Turning Tool / Front Working Tool: 6/6
Driven Tools: 5
Speed: 6,000 RPM
Power: 1.743 HP
Carriage 2:
Fixed Turning Tool / Front Working Tool: 4/4
Driven Tools: 5
Speed: 6,000 RPM
Power: 1.743 HP
Dimensions: 191" x 58" x 92"
- DMG SLIMline Fanuc 310i Control
- IEMCA Ideal 325 12ft Magazine Barfeed
- 6 OD / 5 Live (6,000 rpm) / 6 End Working Tools for Main Spindle
- 4 OD / 5 Live (6,000 rpm) / 4 End Working Tools for Counter Spindle
- C-Axis Live Tool Capability on Main & Counter Spindle
- Conversion Kit from Steady to Sliding Headstock
- Thru Spindle Coolant on Counter Spindle
- Chip Blaster High Pressure Unit
- Chip Conveyor
- Auto Parts Catcher
- Parts Exit Conveyor
- Synchronous Rotary Guide Bushing
