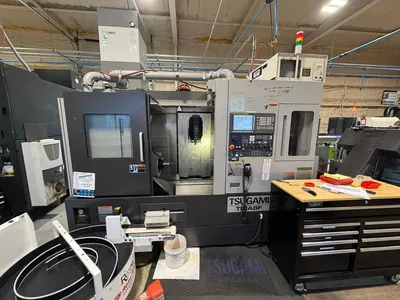

2022 Tsugami TMA8F 6-Axis CNC Milling and Turning Center
Have one to sell?
1 available
Boost your shop's efficiency with the 2022 Tsugami TMA8F 6-Axis CNC Milling and Turning Center. Perfect for complex machining with full 5-axis capability, 60 CAPTO C4 tools, and FANUC 31i-B5 control. Maximize precision with high rigidity and glass scales.
Maximum Bar Stock 65 mm, 2.56″
Maximum Work Diameter 220 mm, 8.66″
Max Work Length 580 mm, 22.83″
Main Spindle Speed/Motor 5,000 rpm, 20hp
Sub Spindle Speed/Motor 5,000 rpm, 15hp
Tool Spindle Speed / Motor 20,000 rpm, 15hp
ATC 60 CAPTO C4 Tools Standard

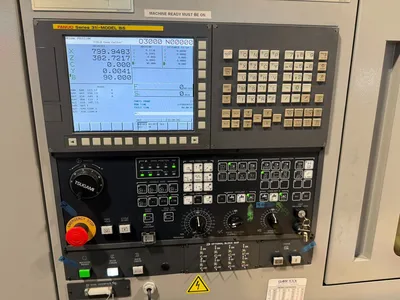

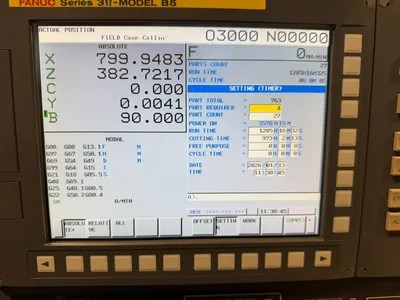

Control FANUC 31i-B5
Weight 18,739 lbs / 8,500 kg
Footprint: W x D x H 3,700 x 2,126 x 2,250mm / 145.7 x 83.7 x 88.6”

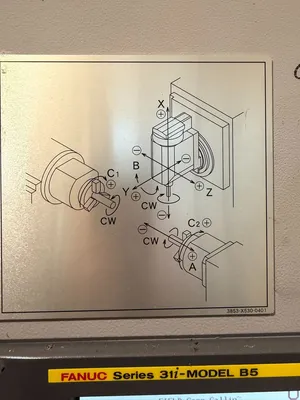

Full 5-Axis Machining Capability for complete parts
4GB Data Server for large surfacing programs

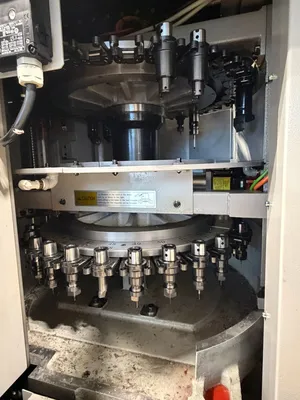

High Speed Automatic Tool Changer Standard: tool-to-tool speed of 0.8 sec. Turning and milling tools with same shank size in common magazine, 60 CAPTO C4 tools standard
Bar Capable: TMA8F works equally well with bar fed or chucked material
Powerful Milling: 15hp built-in motor capable of milling center performance
High Rigidity Cross Slide Structure delivers high accuracy in complex machining
High Accuracy: Positioning repeatability is ±0.1 μm

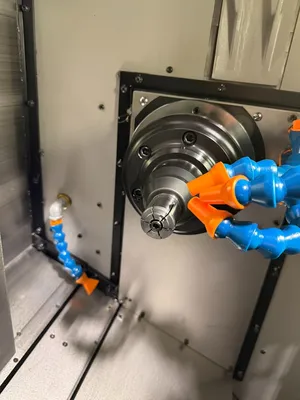

HP Coolant through the Tool Spindle: 1,000psi max.

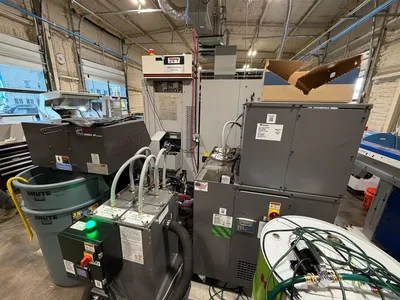

Exomist Mist Collector

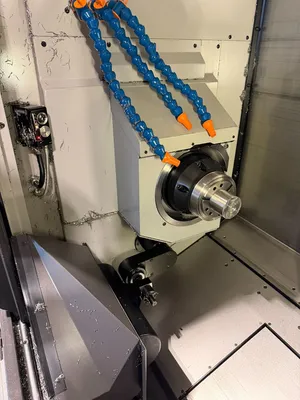

Full C-Axis Sub Spindle: finish parts complete in one operation

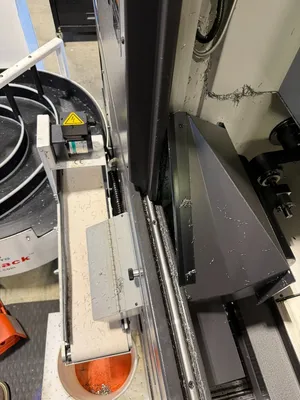

Parts Catcher
Touch Probe
Glass Scales on X, Y, Z
