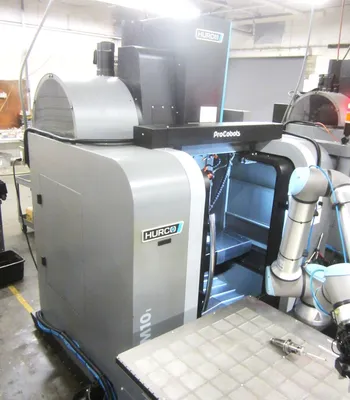

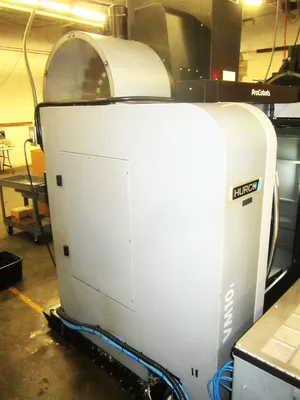

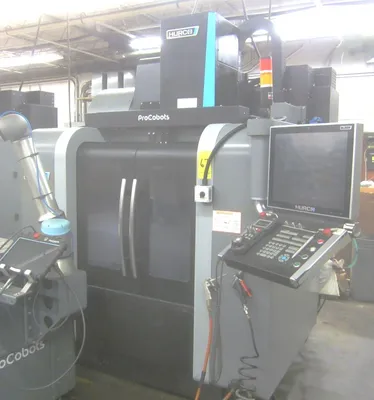

HURCO VM10i 3-AXIS CNC VERTICAL MACHINING CENTER, NEW 2020
Have one to sell?
1 available
Explore the great functionality of a used 2020 HURCO VM10i 3-Axis CNC Vertical Machining Center. It boasts a spacious 30"x16" table size, that can carry up to 3300 lbs. With a spindle speed of 10,000 RPM and a 24-tools changer, this machine ensures efficient work. X, Y, Z axis travels are 26", 16" and 20" respectively. This unit uses 230 volt / 3 phase / 60 Hz and features HURCO MAX CNC Control with USB & RS-232, coolant tank & pump amongst other features. Approximate dimensions of 90 in x 90 in x 99 in H.
Model # VM10i
Year of manufacture 2020

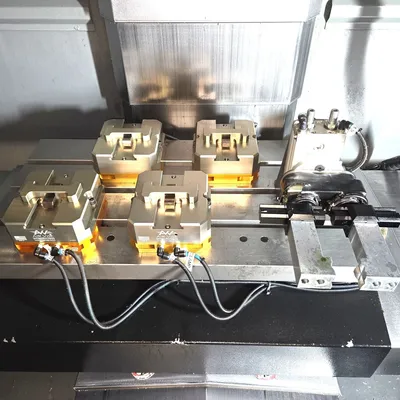

Table size 30" x 16"
Max table weight 3,300 Lbs.
T-Slots (3)
Spindle speed 10,000 R.P.M.
Spindle nose to table 4 in / 24 in Min / Max

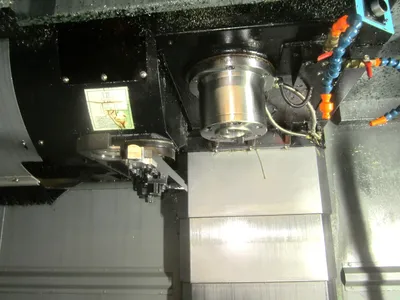

Spindle taper CAT-40
X axis travel 26"
Y axis travel 16"
Z axis travel 20"
Rapids on X,Y,Z 1,102 I.P.M.
Max programmable feedrate 1,102 I.P.M.
Tool changer 24 Tools
CHARACTERISTICS:
Equipped With:

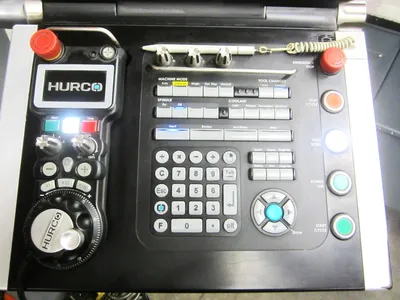

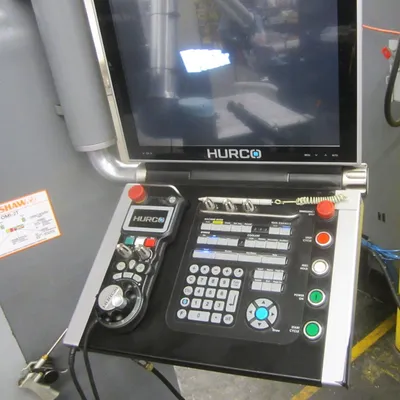

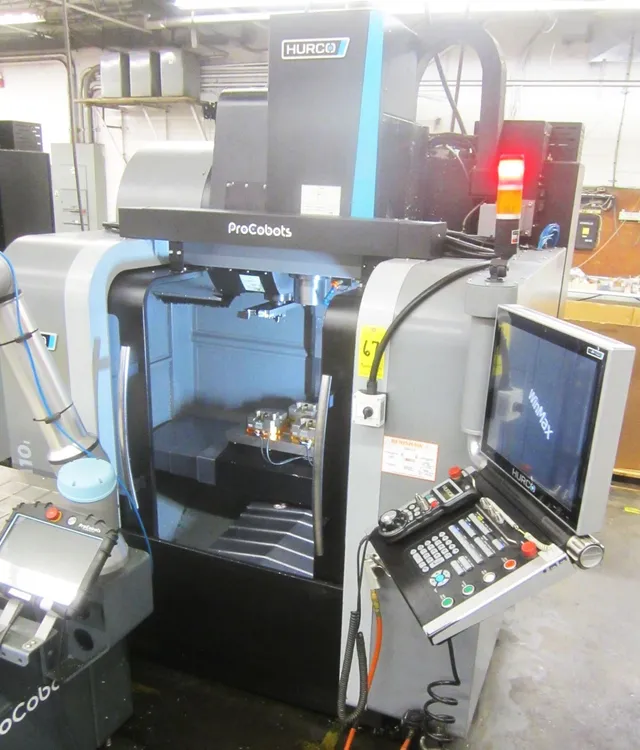

HURCO MAX CNC Control with USB & RS-232
Control options- see photo
Coolant tank & Pump

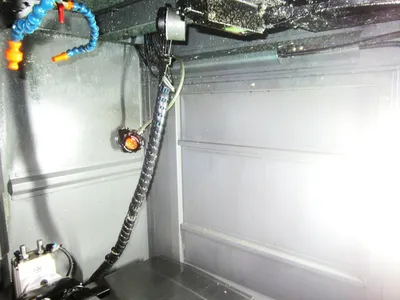

Coolant & Air sprayer nozzles

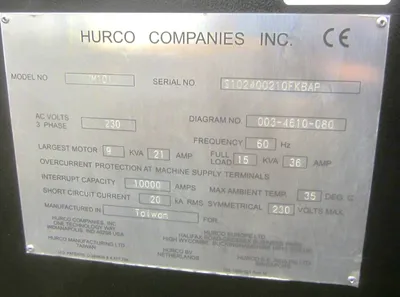

Machine is wired for 230 volt / 3 phase / 60 H.Z.
Approximate Weight (Machine Only): 6500 Lbs.
APPROXIMATE DIMENSIONS: 90 in x 90 in x 99 in H
HURCO MAX CNC Control with USB & RS-232
Control options- see photo
Leveling pads
Coolant tank & Pump
Coolant & Air sprayer nozzles

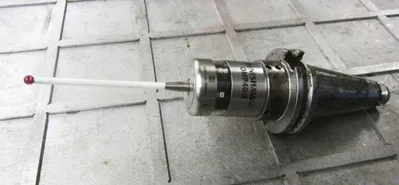

Renishaw PROBE
