FOM BLITZ ALVA 500A DOUBLE HEAD MITRE SAW, NEW 2014
Have one to sell?
1 available
FOM BLITZ ALVA 500A DOUBLE HEAD MITRE SAW, NEW 2014

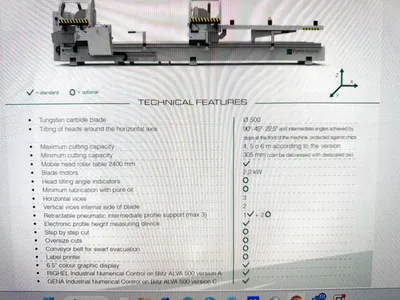

Fom Industrie Blitz Alva 500, Double Heads, 3-Axis, 19.7" Max. Cutting Capacity, 94.5" Mobile Head Roller Table, 2.9 HP Blade Motor, 3 Horizontal Vises, 2 Vertical Vises, Profile Height Measuring Device,
Vertical Vises Internal Side of Blade: 2
EQUIPPED WITH:
Electronic Profile Height Measuring Device
Maximum cutting capacity ( us standard )
19.7"
Minimum cutting capacity ( us standard )
12" (Can Be Decreased w/ Dedicated SW)
Mobile head roller table ( us standard )
94.5"
Blade motor ( us standard )
2.9 HP
Horizontal vises ( us standard )
3
Maximum cutting capacity ( metric )
500.38mm
Minimum cutting capacity ( metric )
304.80mm (Can Be Decreased w/ Dedicated SW)
Mobile head roller table ( metric )
2400.30mm
Blade motor ( metric )
2.16 kw
Horizontal vises ( metric )
2
vertical vice 1

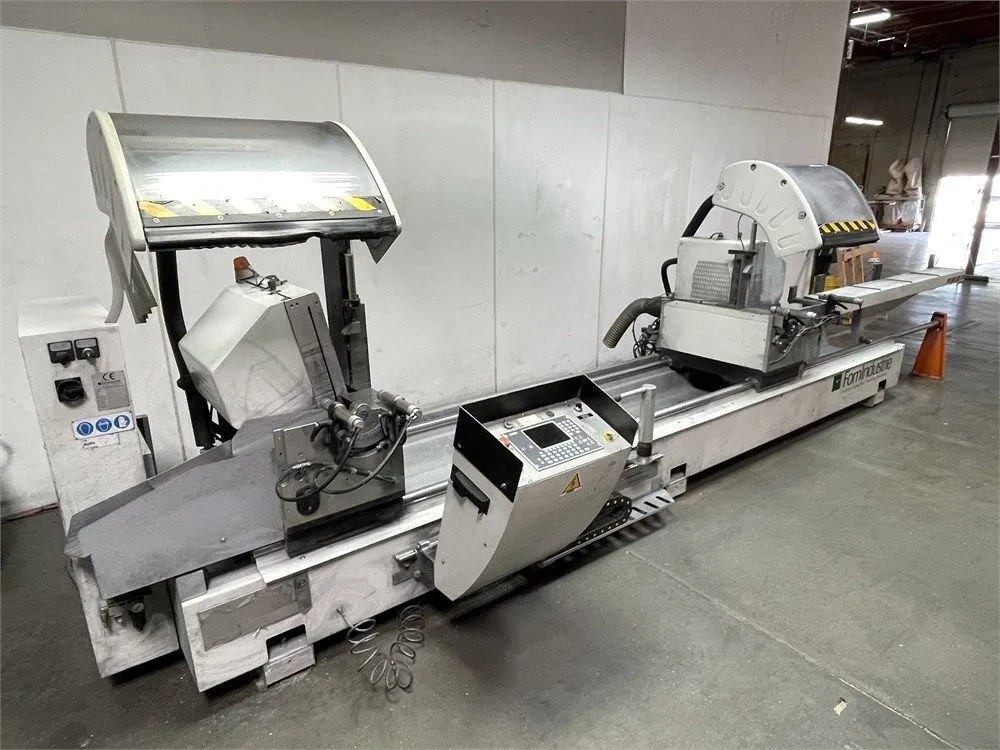

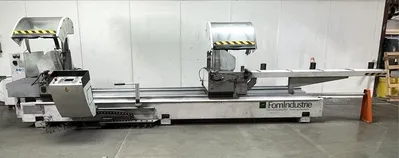

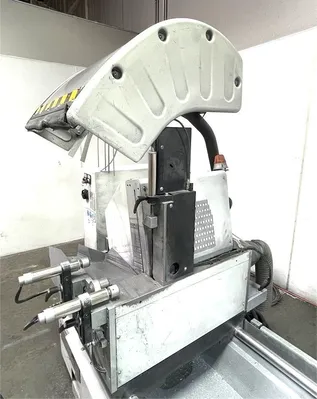

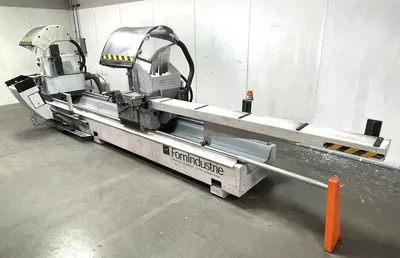

FOM "Blitz Alva 500 A" Double Sawing Machine
Setup for machining metal entry door and window components
305 mm/12" minimum part length

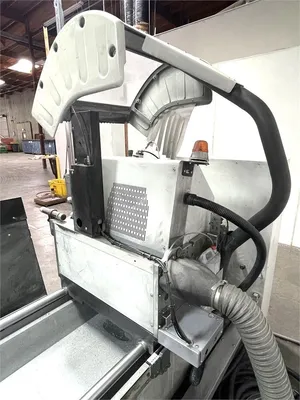

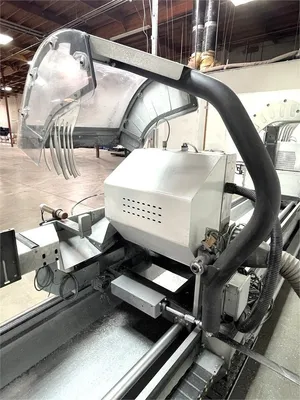

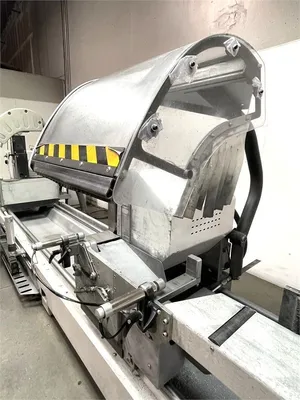

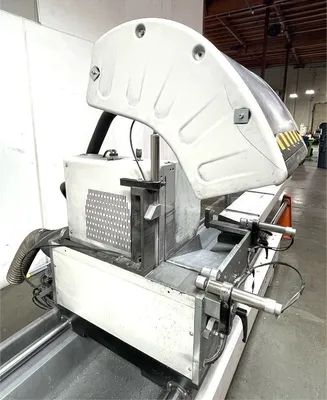

Two (2) saw stations with sound enclosures
3 HP (each)
2,800 blade RPM
500 mm/19.7" maximum blade diameter

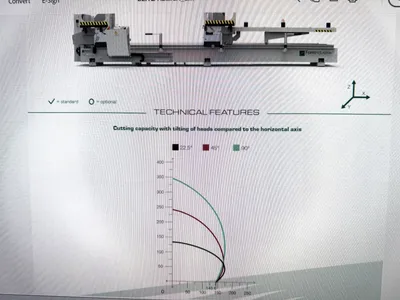

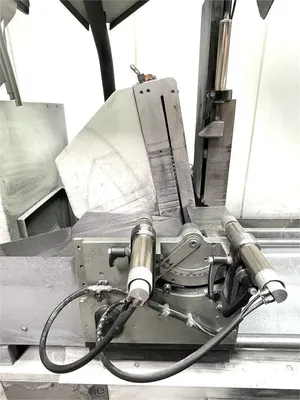

Tiltable

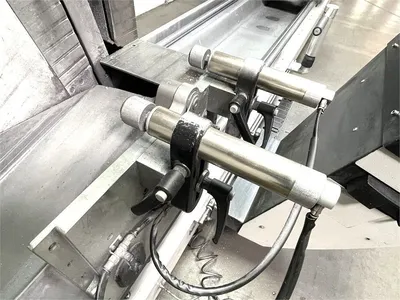

Two (2) horizontal clamps (each)
One (1) vertical clamp (each)
Saw lubrication system

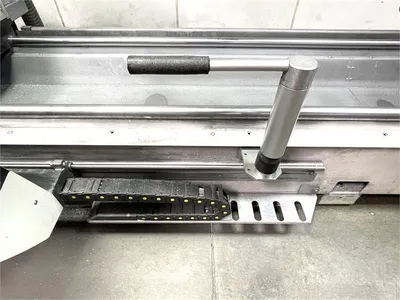

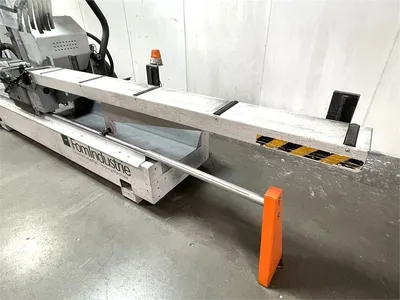

Infeed roller table

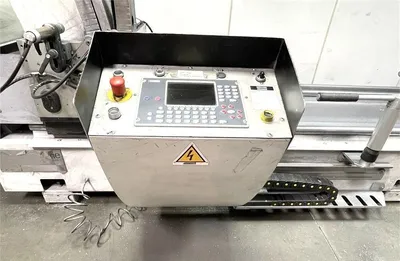

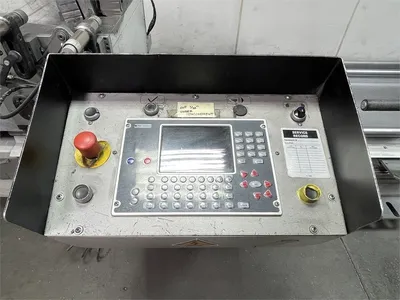

Control stand with PLC
External electrical transformer
Installed and extra blades
TEX CNC CONTROL
