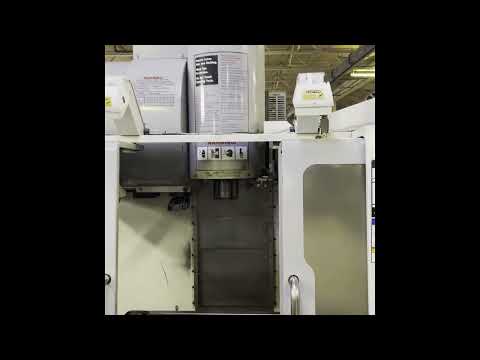

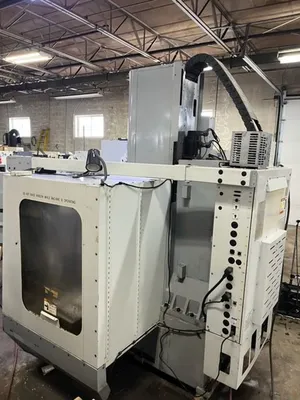

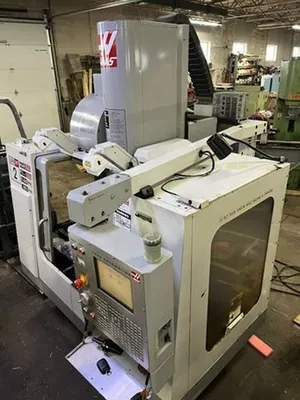

2006 Haas VF-2SS Super Speed Vertical Machining Center
Have one to sell?
1 available
$19,500.00 USD
2006 Haas VF-2SS Vertical Machining Center, featuring a 30 HP, 12,000 RPM spindle, 24+1 tool changer, and Haas CNC controls. Includes high-speed machining capabilities, expanded memory, and programmable coolant nozzle. Ideal for precision work!
Travels
X-Axis 30"
Y-Axis 16"
Z-Axis 20"
Spindle Nose to Table (- min) 4"
Spindle Nose to Table (- max) 24"
Table:
Length 36"
Width 14"
T-Slot Width 5/8"
T-Slot Center Distance 4.92"
Number of Std T-Slots 3
Max. Weight on Table (evenly distributed) 1,500 lbs.
Spindle:
Max. rating 30 HP
Max. speed 12,000 RPM
Max. Torque 90 ft-lb @ 2000 RPM
Drive System inline direct-drive
Taper BT40
Bearing lubrication Air/Oil injection
Cooling Liquid/Cooled
Feedrates:
Rapids on X 1000 in/min
Rapids on Y 1000 in/min
Rapids on Z 1000 in/min
Max. Cutting 833 in/min
Tool Changer:
Type SMTC
Capacity 24+1
Max. Tool Diameter (adjacent empty) 5"
Max. Tool Diameter (full) 3"
Max. Tool length (from gage line) 11"
Max. Tool weight 12 lb.
Tool-to-Tool (avg) 1.6 sec.
Chip-to-Chip (avg) 2.2 sec.
General:
Air required 4 scfm, 100 PSI
Coolant capacity 55 gal
Machine weight 8,000 lbs

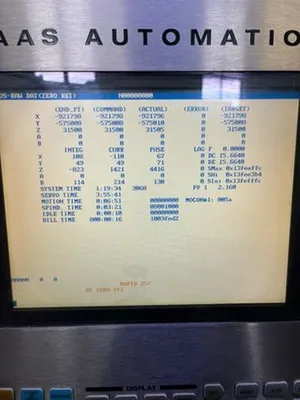

Haas CNC Controls
Side Mount 24 Position Automatic Tool Changer
12,000 RPM Inline direct drive Spindle
Expanded Memory 16 MB
4th Axis Drive
Coolant System
Rigid Tapping
High Intensity Lighting
Rotation & Scaling
High Speed Machining
Macros
Programmable Coolant Nozzle
Remote Jog handle
Spindle Orientation
